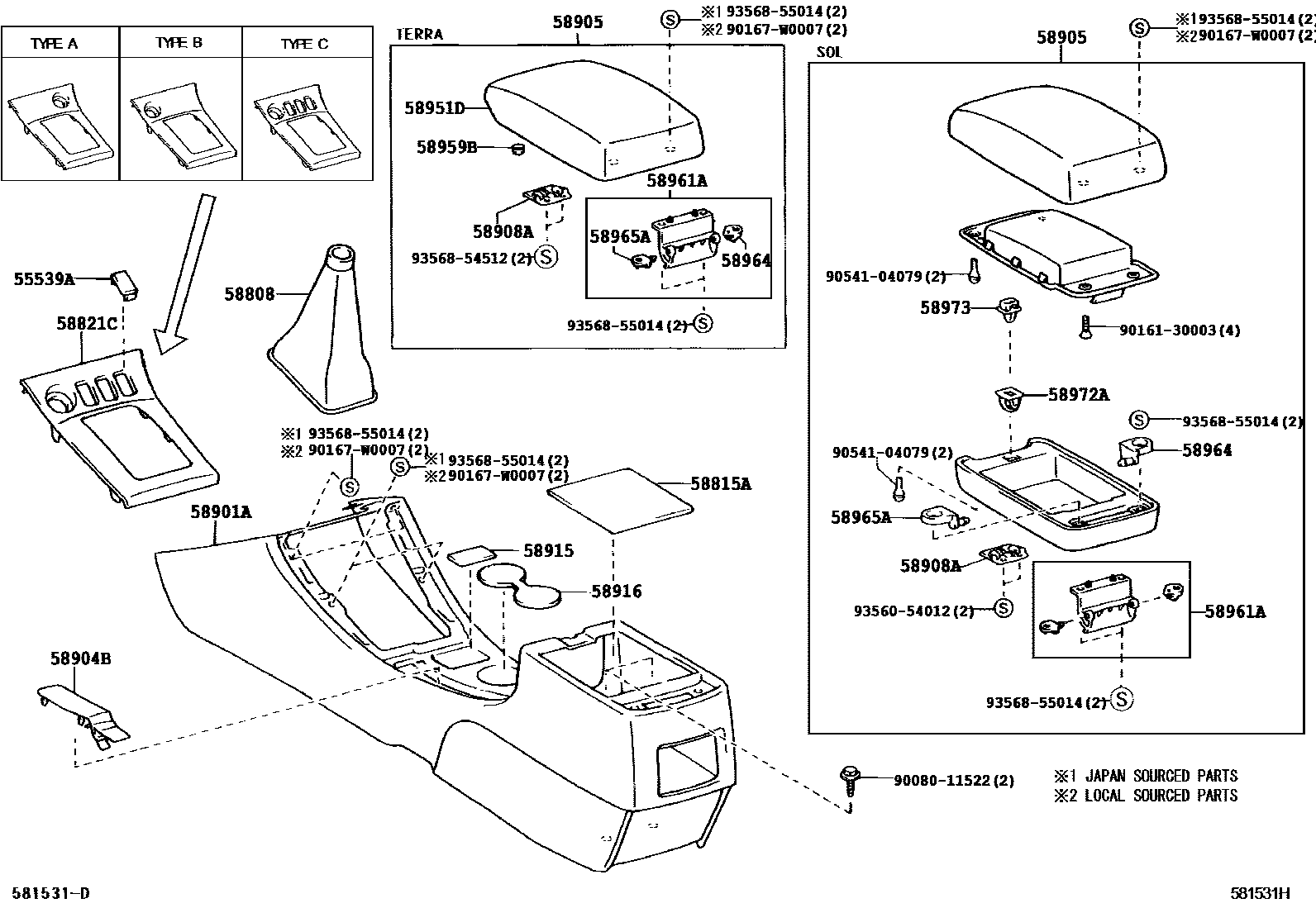

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-02040-B0iCDE120,NDE120,ZZE12#..UKP..LHD200406

DK.GRAY

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02090-B0iCDE120,ZZE12#..UKP..5F200201-200406

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-02050iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

58821CPANEL, CONSOLE, UPPER

main58821-02110-B0iCDE120,ZZE12#..UKP..RHD..TERRA200201-200406

TYPE A:REFER TO ILLUSTRATION,DARK GRAY,TRIM1#

main58821-02120-B0iZZE121..UKP..RHD..SOL200201-200406

TYPE A:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#

main58821-02130-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

TYPE B:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#

main58821-02150-B0iCDE120,ZZE12#..UKP..LHD..TERRA200201-200406

TYPE C:REFER TO ILLUSTRATION,DARK GRAY,TRIM1#

main58821-02160-B0iCDE120,ZZE12#..UKP..LHD..SOL200201-200406

TYPE C:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#

main58821-02170-B0iCDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F)..TERRA200406

TYPE B:REFER TO ILLUSTRATION,DARK GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-02060-B0iCDE120,NDE120,ZZE12#..UKP..RHD200406

DK.GRAY,TRIM1#

main58901-02110-B0iCDE120,NDE120,ZZE12#..UKP..LHD200406

DK.GRAY,TRIM1#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-02030-B0iCDE120,ZZE12#..UKP..RHD200201-200406

DK.GRAY,TRIM1#

main58904-02050-B0iCDE120,ZZE12#..UKP..LHD200201-200406

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02170-B0iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main58905-02180-B0iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main58905-02300-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

DK.GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iCDE120,NDE120,ZZE12#..UKP200406

58915PANEL, BOX BOTTOM

main58915-02010-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

58916MAT, BOX BOTTOM

main58916-02050-B0iCDE120,NDE120,ZZE12#..UKP200406

DK.GRAY,TRIM1#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-02120-B0iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16020×2iCDE120..UKP..TERRA..DCR;ZZE121..UKP..WG..4FC..TERRA; ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58907-12050iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20030iCDE120,NDE120,ZZE12#..UKP..TERRA200406-200702

main58964-20040iCDE120..UKP..SOL..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..LHD..SOL200201-200406

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20040iCDE120,NDE120,ZZE12#..UKP..TERRA200406-200702

main58965-20050iCDE120..UKP..SOL..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..LHD..SOL200201-200406

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-12010iCDE120,ZZE12#..UKP..SOL200201-200406

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iCDE120..UKP..SOL..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..LHD..SOL200201-200406

9008011522

main90080-11522

9016130003

main90161-30003

90167W0007

main90167-W0007

9054104079

main90541-04079

9356054012

main93560-54012

9356854512

main93568-54512

9356855014

main93568-55014

24 parts on this diagram · 1 diagram in section
