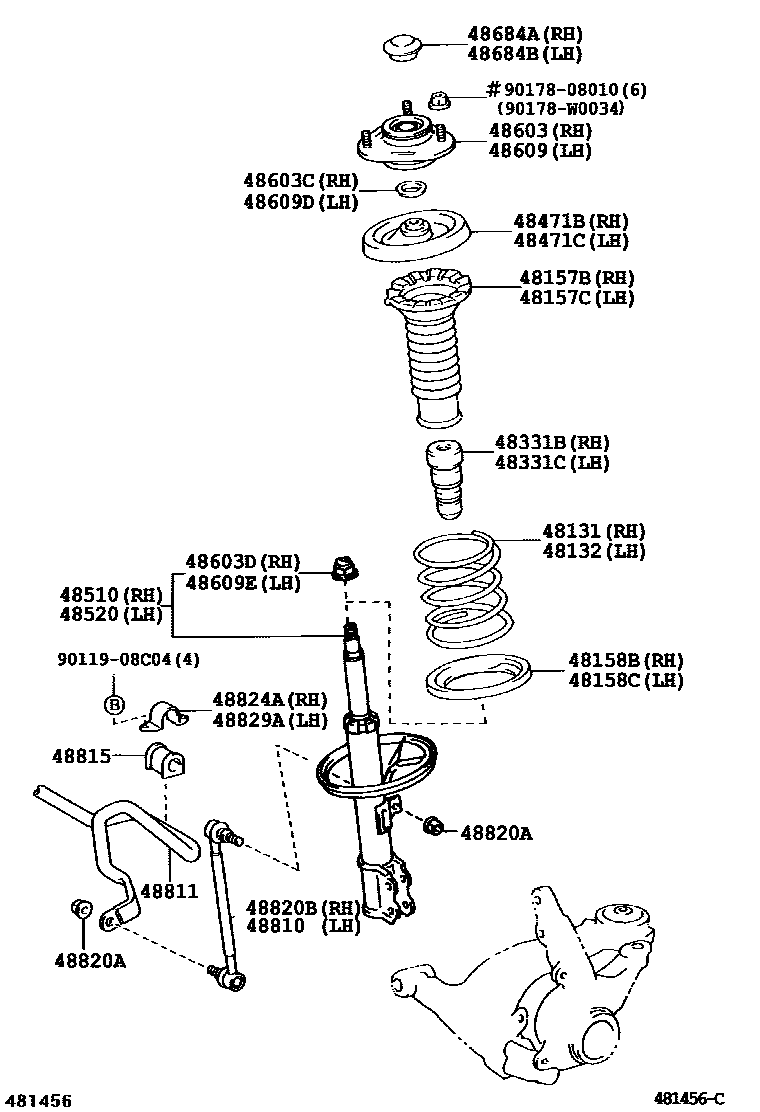

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48132SPRING, FRONT COIL, LH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
sub48044-02030
48471CSEAT, FRONT COIL SPRING, UPPER LH
sub48044-02030
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-02291
MARK 48510-02301
MARK 48510-02191
MARK 48510-02191,ROUGH ROAD PACKAGE
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-02291
MARK 48520-02301
MARK 48520-02191,ROUGH ROAD PACKAGE
MARK 48520-02191
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
FRAME NO.=RXXXXXX
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
9011908C04
main90119-08C04
9017808010
main90178-08010
90178W0034
main90178-W0034
30 parts on this diagram · 1 diagram in section
