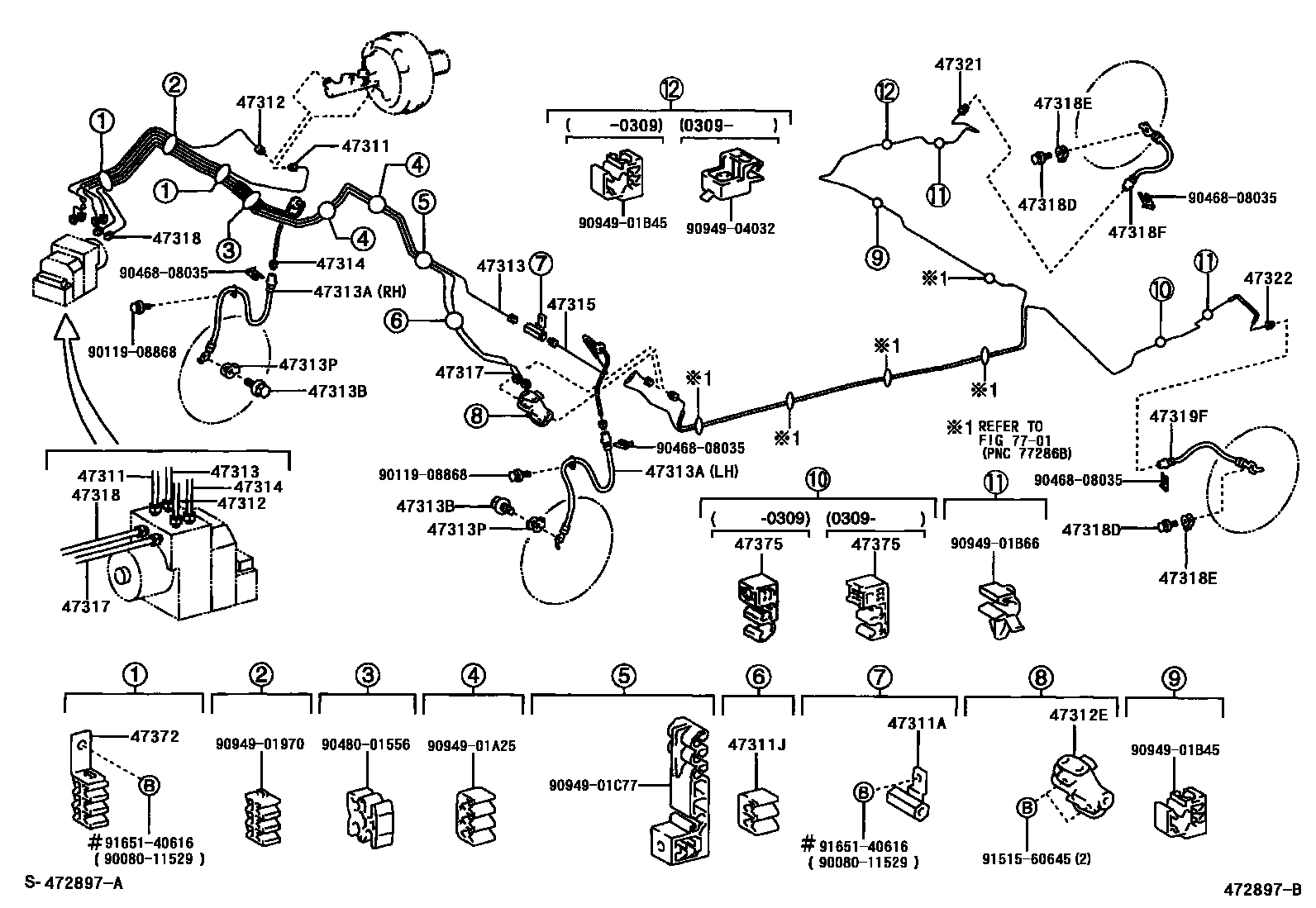

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(VSC) 0004 1 0005 1W(VSC) 0006 1W/O(VSC) 0007 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-02200iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..RHD..TERRA200201-200406

main47311-02220iCDE120..UKP..LHD..DCR;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200406

main47311-02380iCDE120..UKP..LHD200406

main47311-02430iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

main47311-02440iCDE120,NDE120,ZZE12#..UKP..LHD200406

W(VSC)

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10227iCDE120,NDE120,ZZE12#..UKP..RHD200502

main90412-10667iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..RHD..TERRA200201-200406

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-01620iCDE120,NDE120,ZZE12#..UKP200406

47312TUBE, FRONT BRAKE, NO.2

main47312-02080iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..RHD..TERRA200201-200406

main47312-02100iCDE120..UKP..LHD..DCR;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200406

main47312-02250iCDE120..UKP..LHD200406

main47312-02300iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

main47312-02310iCDE120,NDE120,ZZE12#..UKP..LHD200406

W(VSC)

main47312-02320iNDE120,ZZE12#..UKP..LHD200406

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12082iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

47313TUBE, FRONT BRAKE, NO.3

main47313-02170iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..RHD..TERRA200201-200406

main47313-02190iCDE120..UKP..LHD..DCR;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200406

main47313-02330iCDE120..UKP..RHD200406

main47313-02340iCDE120..UKP..LHD200406

main47313-02380iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

main47313-02390iCDE120,NDE120,ZZE12#..UKP..LHD200406

W(VSC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94131iCDE120,ZZE12#..UKP200201-200205

RH,(L)

main90080-94132iCDE120,ZZE12#..UKP200201-200205

LH,(L)

main90080-94199iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200205-200406

RH,(L)

main90080-94200iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200205-200406

LH,(L)

main90947-02D22iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

RH,(J)

main90947-02D23iCDE120,NDE120,ZZE12#..UKP200602

(J),LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

47314TUBE, FRONT BRAKE, NO.4

main47314-02190iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

main47314-02210iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

main47314-02230iCDE120,NDE120,ZZE12#..UKP..LHD200406

W(VSC)

47315TUBE, FRONT BRAKE, NO.5

main47315-02160iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..RHD..TERRA200201-200406

main47315-02170iCDE120..UKP..LHD..DCR;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200406

main47315-02340iCDE120,NDE120,ZZE12#..UKP..LHD200406

47317TUBE, FRONT BRAKE, NO.7

main47317-02120iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..RHD..TERRA200201-200406

main47317-02140iCDE120..UKP..LHD..DCR;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200406

main47317-02250iCDE120..UKP..RHD200406

main47317-02260iCDE120..UKP..LHD200406

main47317-02290iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

main47317-02300iCDE120,NDE120,ZZE12#..UKP..LHD200406

W(VSC)

47318TUBE, FRONT BRAKE, NO.8

main47318-02120iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL; ZZE12#..UKP..RHD..TERRA200201-200406

main47318-02140iNDE120,ZZE12#..UKP..LHD200406

main47318-02270iCDE120..UKP..RHD200406

main47318-02280iCDE120..UKP..LHD200406

main47318-02310iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

main47318-02320iCDE120,NDE120,ZZE12#..UKP..LHD200406

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10045×2iCDE120,NDE120,ZZE12#..UKP200406

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E88iCDE120,ZZE12#..UKP200201-200406

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E88iCDE120,NDE120,ZZE12#..UKP200406

47321TUBE, REAR BRAKE, NO.1

main47321-02110iCDE120,NDE120,ZZE12#..UKP200406

47322TUBE, REAR BRAKE, NO.2

main47322-02110iCDE120,ZZE12#..UKP200201-200406

47372CLAMP, BRAKE TUBE, NO.2

main47374-12050iCDE120,NDE120,ZZE12#..UKP..LHD; CDE120,NDE120,ZZE12#..UKP..RHD200406

47375CLAMP, BRAKE TUBE, NO.5

main77299-20060iCDE120,NDE120,ZZE12#..UKP200406

main77299-32030iCDE120,ZZE12#..UKP200201-200309

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008011529

main90080-11529

9011908868

main90119-08868

9046808035

main90468-08035

9048001556

main90480-01556

9094901970

main90949-01970

9094901A25

main90949-01A25

9094901B45

main90949-01B45

9094901B66

main90949-01B66

9094901C77

main90949-01C77

9094904032

main90949-04032

9151560645

main91515-60645

9165140616

main91651-40616

34 parts on this diagram · 7 diagrams in section
