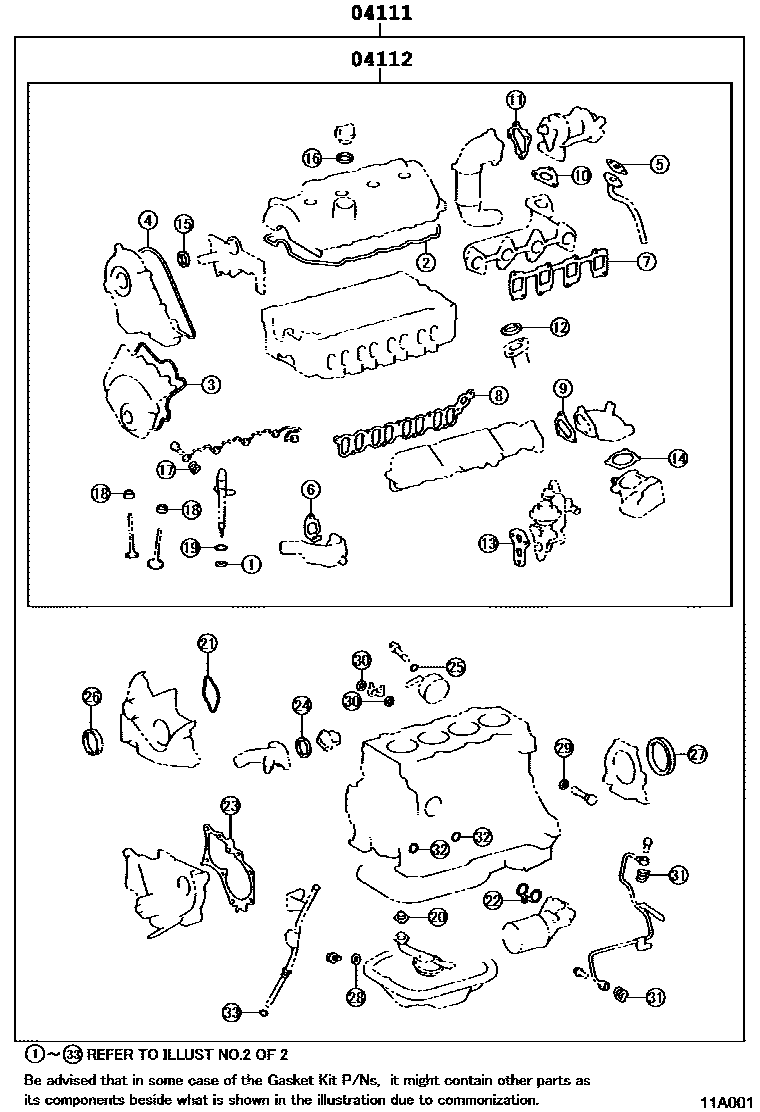

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0D100i3ZZFE,4ZZFE..ZZE12#..UKP200201-200206

sub04111-0D101

main04111-0D101i3ZZFE,4ZZFE..ZZE12#..UKP200206-200302

sub04111-0D102

main04111-0D102i3ZZFE..ZZE121..UKP..RHD..SOL;3ZZFE..ZZE121..UKP..WG..4FC..TERRA200302-200406

sub04111-0D103

main04111-0D390i4ZZFE..ZZE120..UKP200406

sub04111-0D103

main04111-0D400i3ZZFE..ZZE121..UKP200406

sub04111-0D381

main04111-0G100i1CDFTV..CDE120..UKP200406-200511

sub04111-27190

main04111-0N030i1NDTV..NDE120..UKP200408

main04111-27100i1CDFTV..CDE120..UKP..DCR200201-200406

main04111-27190i1CDFTV..CDE120..UKP200511

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0D100i3ZZFE,4ZZFE..ZZE12#..UKP200201-200206

sub04112-0D101

main04112-0D101i3ZZFE,4ZZFE..ZZE12#..UKP200206-200302

sub04112-0D102

main04112-0D102i4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA200302-200406

sub04112-0D103

main04112-0D380i4ZZFE..ZZE120..UKP200406

sub04112-0D103

main04112-0D390i3ZZFE..ZZE121..UKP200406

sub04112-0D371

main04112-0G100i1CDFTV..CDE120..UKP200406-200511

sub04112-27180

main04112-0N030i1NDTV..NDE120..UKP200408

main04112-27090i1CDFTV..CDE120..UKP..DCR200201-200406

main04112-27180i1CDFTV..CDE120..UKP200511

2 parts on this diagram · 8 diagrams in section
