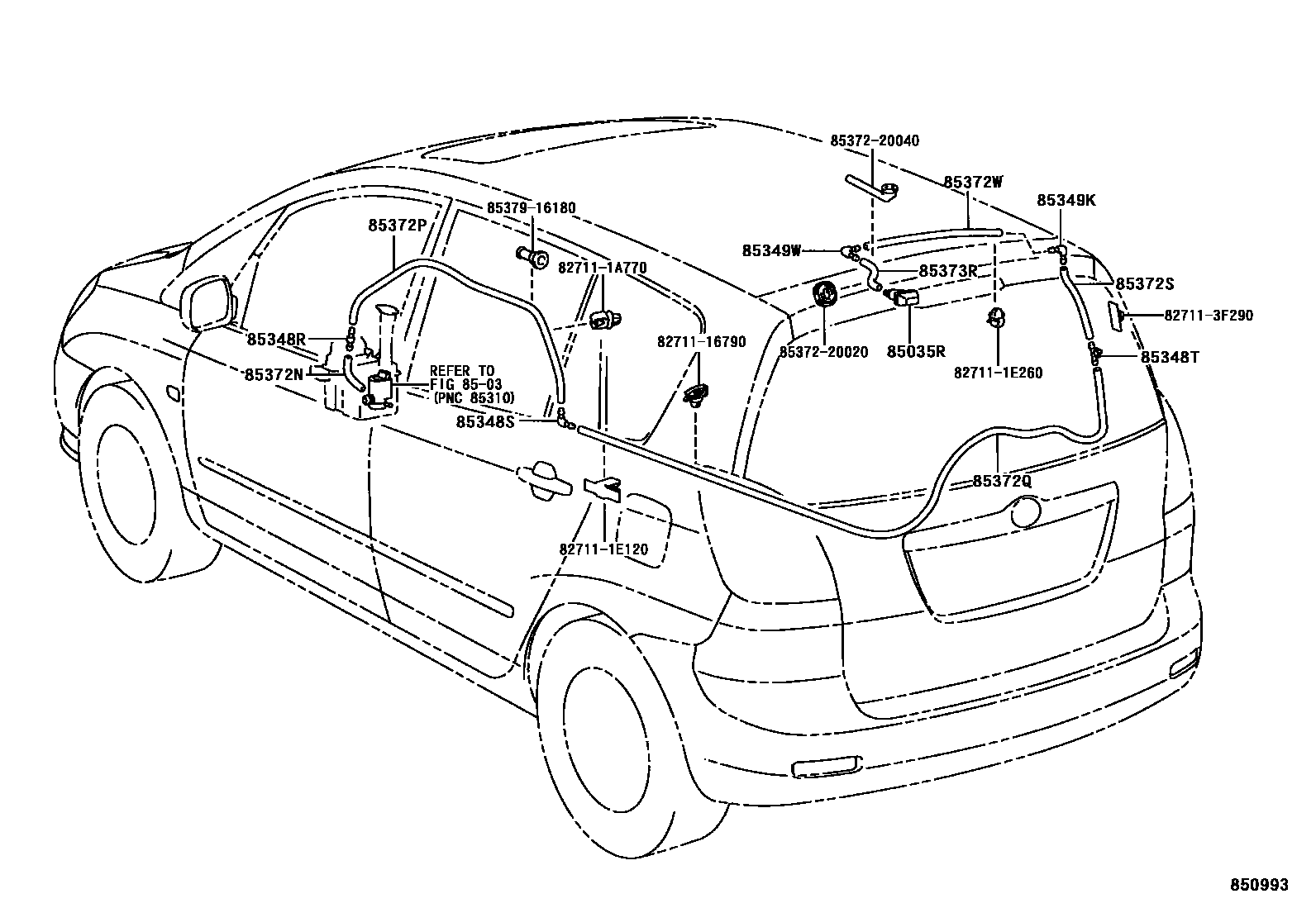

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-13030iCDE120,ZZE12#200109-200401

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iCDE120,ZZE12#200109-200401

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iCDE120,ZZE12#200109-200401

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-20800iCDE120,ZZE12#200109-200401

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iCDE120,ZZE12#200109-200401

85349WJOINT, REAR WASHER ELBOW, NO.4

main85355-20200iCDE120,ZZE12#200109-200401

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iCDE120,ZZE12#200109-200401

L=1450(*H,L=70)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iCDE120,ZZE12#200109-200401

L=1800(*H,L=1470)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33589iCDE120,ZZE12#200109-200401

L=3050

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iCDE120,ZZE12#200109-200401

L=1800(*H,L=490)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-59057iCDE120,ZZE12#200109-200401

L=1800(*H,L=460)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iCDE120,ZZE12#200109-200401

L=1000(*H,L=220)

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E120

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537916180JOINT

main85379-16180

21 parts on this diagram · 1 diagram in section
