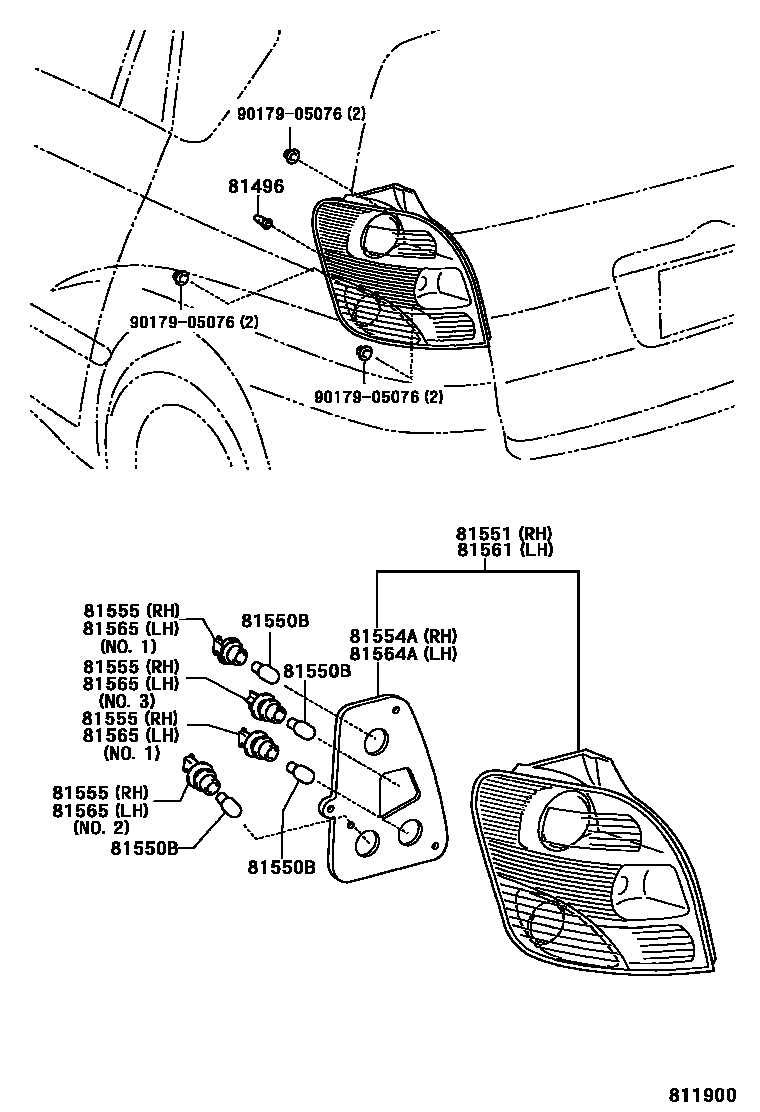

REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-12020iCDE120,ZZE12#200109-200401

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11048iCDE120,ZZE12#..RHD200109-200401

12V 21/5W

sub90981-13044

main90981-13043iCDE120,ZZE12#200109-200401

12V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-13530iCDE120,ZZE12#..RHD200109-200401

main81551-13540iCDE120,ZZE12#..LHD200110-200401

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-13510iCDE120,ZZE12#200109-200401

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13510iCDE120,ZZE12#..RHD200109-200401

NO.1

main81555-13520iCDE120,ZZE12#200109-200401

NO.2

main81555-13530iCDE120,ZZE12#200109-200401

NO.3

81561LENS, REAR COMBINATION LAMP, LH

main81561-13530iCDE120,ZZE12#..RHD200109-200401

main81561-13540iCDE120,ZZE12#..LHD200110-200401

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-13510iCDE120,ZZE12#200109-200401

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13510iCDE120,ZZE12#..RHD200109-200401

NO.1

main81555-13520iCDE120,ZZE12#200109-200401

NO.2

main81555-13530iCDE120,ZZE12#200109-200401

NO.3

9017905076

main90179-05076

9 parts on this diagram · 1 diagram in section
