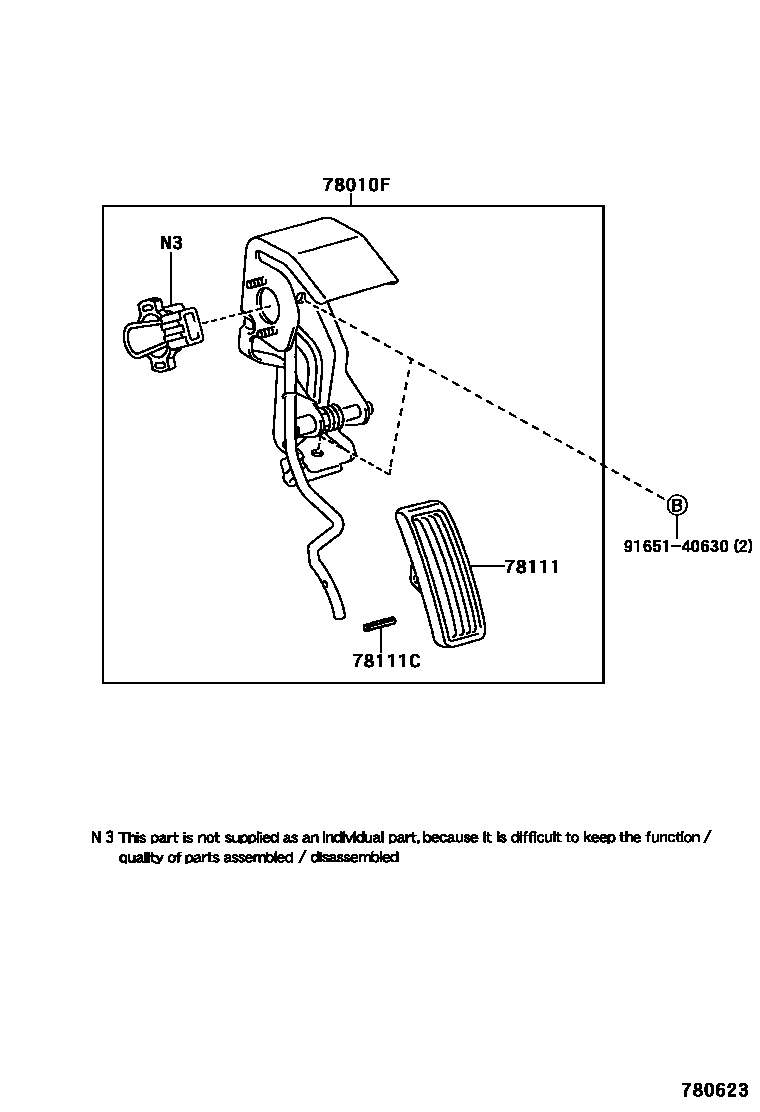

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78010FPEDAL ASSY, ACCELERATOR

main78010-12151iCDE120..RHD200110-200401

sub78010-12152

main78010-12170iCDE120..LHD200110-200311

sub78010-12171

main78010-12171iCDE120..LHD200311-200401

sub78010-12181

78111PEDAL, ACCELERATOR

main78111-20060iZZE12#..LHD..MTM200110-200401

main78111-32010iZZE122..LHD..ATM200110-200401

main78111-32020iCDE120,ZZE12#..RHD200109-200401

main78111-35030iCDE120..LHD200110-200401

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iZZE122..LHD..ATM200110-200401

main90254-04019iZZE122..RHD;CDE120,ZZE121;ZZE122..LHD..MTM200109-200401

9165140630

main91651-40630

4 parts on this diagram · 5 diagrams in section
