FRONT SEAT & SEAT TRACK

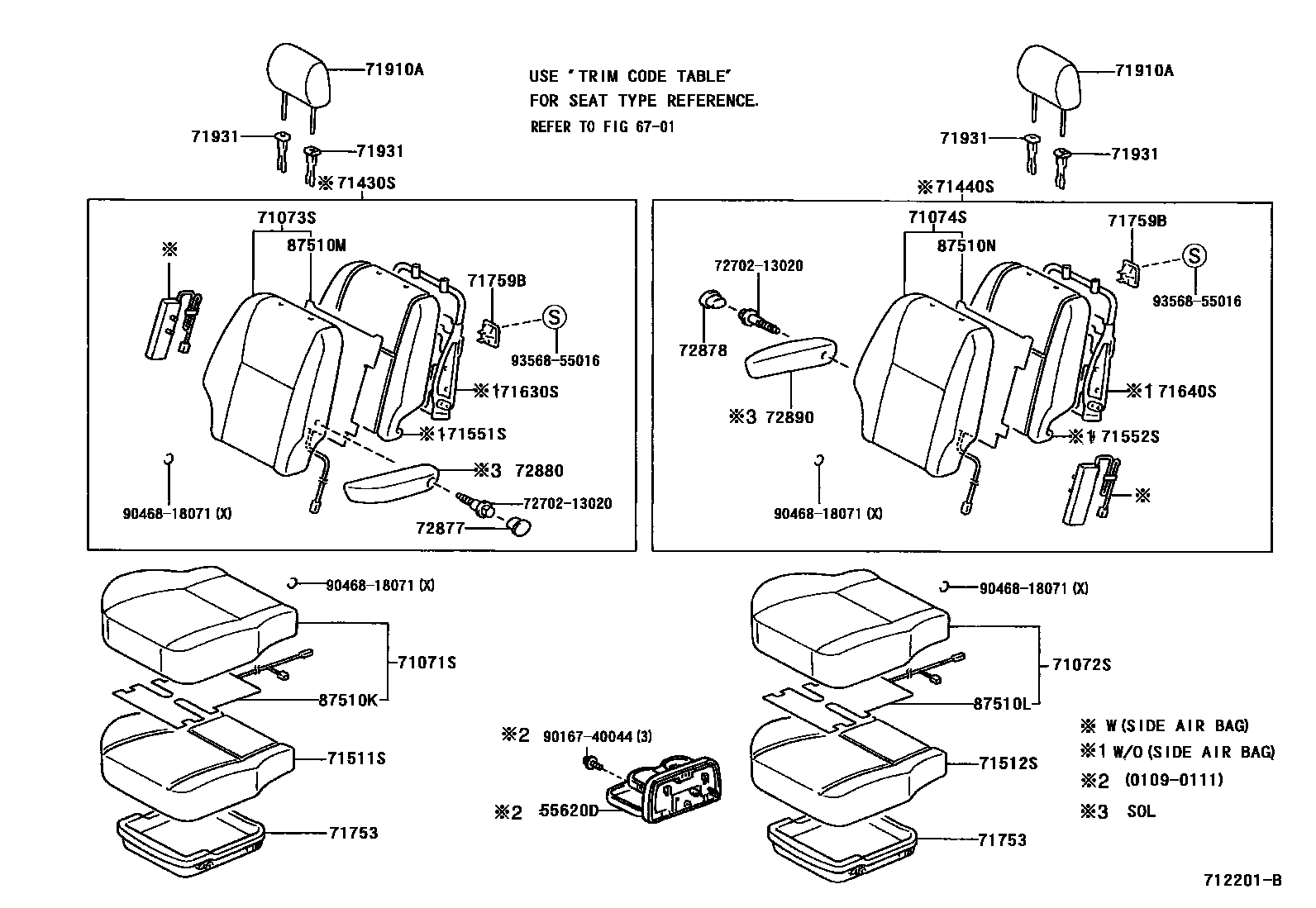

Parts diagram
55620DHOLDER ASSY, FRONT SEAT CUP
main55620-13020-A0i200109-200111
IVORY,TRIM0#
main55620-13020-B0i200109-200111
DK.GRAY,TRIM1#
6701FRONT DOOR PANEL & GLASS
→ Go to FIG 67-01
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-13680-A0i200109-200401
IVORY,TRIM0#
main71071-13680-B0i200109-200401
DARK GRAY,TRIM1#
main71071-13790-B0i200109-200401
DARK GRAY,TRIM1#
main71071-13810-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-13850-A0i200109-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71071-13850-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-13870-B0i200110-200401
W(SEAT HEATER),DARK GRAY,TRIM1#
main71071-13880-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-13890-B0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GRAY,TRIM1#
main71071-1F010-A0i200110-200401
W(SEAT HEATER),IVORY,TRIM0#
main71071-1F010-B0i200110-200401
W(SEAT HEATER),DARK GRAY,TRIM1#
main71071-1F020-A0i200110-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71071-1F020-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-1F030-A0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
main71071-1F030-B0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GRAY,TRIM1#
main71072-13880-B0i200110-200401
DARK GRAY,TRIM1#
main71072-1F030-A0i200110-200201
IVORY,TRIM0#
main71072-1F030-B0i200110-200201
DARK GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-13880-B0i200109-200401
DARK GRAY,TRIM1#
main71072-1F010-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71072-1F030-A0i200109-200401
IVORY,TRIM0#
main71072-1F030-B0i200109-200401
DARK GRAY,TRIM1#
main71072-1F040-A0i200109-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71072-1F040-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71072-1F050-B0i200110-200401
W(SEAT HEATER),DARK GRAY,TRIM1#
main71072-1F060-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71072-1F070-B0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GRAY,TRIM1#
main71072-1F080-A0i200110-200401
W(SEAT HEATER),IVORY,TRIM0#
main71072-1F080-B0i200110-200401
W(SEAT HEATER),DARK GRAY,TRIM1#
main71072-1F090-A0i200110-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71072-1F090-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71072-1F100-A0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
main71072-1F100-B0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GRAY,TRIM1#
main71072-1F190-B0i200110-200401
DARK GRAY,TRIM1#
main71072-1F200-A0i200110-200401
IVORY,TRIM0#
main71072-1F200-B0i200110-200401
DARK GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-13770-B0i200110-200401
DARK GRAY,TRIM1#
main71073-13790-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71073-13810-B0i200109-200401
DARK GRAY,TRIM1#
main71073-13830-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71073-13850-A0i200109-200401
IVORY,TRIM0#
main71073-13850-B0i200109-200401
DARK GRAY,TRIM1#
main71073-13870-A0i200109-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71073-13870-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71073-13890-A0i200110-200401
IVORY,TRIM0#
main71073-13890-B0i200110-200401
DARK GRAY,TRIM1#
main71073-1F020-A0i200110-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71073-1F020-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-13770-B0i200109-200401
DARK GRAY,TRIM1#
main71074-13710-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71074-13730-B0i200110-200401
DARK GRAY,TRIM1#
main71074-13750-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71074-13780-A0i200109-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71074-13780-B0i200109-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71074-13800-A0i200110-200401
IVORY,TRIM0#
main71074-13800-B0i200110-200401
DARK GRAY,TRIM1#
main71074-13820-A0i200110-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71074-13820-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71074-13860-B0i200201-200401
W/O(REAR SEAT),DK.GRAY,TRIM1#
main71074-13870-A0i200109-200401
IVORY,TRIM0#
main71074-13870-B0i200109-200401
DARK GRAY,TRIM1#
main71074-13890-B0i200201-200401
W(SIDE AIR BAG) & W/O(REAR SEAT),DK.GRAY,TRIM1#
main71074-1F010-A0i200201-200401
W/O(REAR SEAT),IVORY,TRIM0#
main71074-1F010-B0i200201-200401
W/O(REAR SEAT),DK.GRAY,TRIM1#
main71074-1F020-A0i200201-200401
W(SIDE AIR BAG) & W/O(REAR SEAT),IVORY,TRIM0#
main71074-1F020-B0i200201-200401
W(SIDE AIR BAG) & W/O(REAR SEAT),DK.GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-13800-B0i200109-200401
DARK GRAY,TRIM1#
main71430-13840-A0i200109-200401
IVORY,TRIM0#
main71430-13840-B0i200109-200401
DARK GRAY,TRIM1#
main71430-13880-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71430-1F010-B0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GRAY,TRIM1#
main71430-1F190-A1i200110-200401
W(SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
main71430-1F190-B1i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GREY,TRIM1#
main71430-1F200-A1i200110-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71430-1F200-B1i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1F030-B0i200109-200401
DARK GRAY,TRIM1#
main71440-1F060-A1i200109-200401
IVORY,TRIM0#
main71440-1F060-B1i200109-200401
DARK GRAY,TRIM1#
main71440-1F100-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71440-1F120-B0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GRAY,TRIM1#
main71440-1F140-A0i200110-200401
W(SIDE AIR BAG),IVORY,TRIM0#
main71440-1F140-B0i200110-200401
W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71440-1F160-A0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
main71440-1F160-B0i200110-200401
W(SIDE AIR BAG & SEAT HEATER),DARK GRAY,TRIM1#
main71440-1F170-B0i200201-200401
W/O(REAR SEAT),DK.GRAY,TRIM1#
main71440-1F190-B0i200201-200401
W(SEAT HEATER) & W/O(REAR SEAT),DK.GRAY,TRIM1#
main71440-1F250-B0i200201-200401
W(SIDE AIR BAG) & W/O(REAR SEAT),DK.GRAY,TRIM1#
main71440-1F260-B0i200201-200401
W(SIDE AIR BAG & SEAT HEATER) & W/O(REAR SEAT),DK.GRAY,TRIM1#
main71440-1F270-A0i200201-200401
W/O(REAR SEAT),IVORY,TRIM0#
main71440-1F270-B0i200201-200401
W/O(REAR SEAT),DK.GRAY,TRIM1#
main71440-1F280-A0i200201-200401
W(SEAT HEATER) & W/O(REAR SEAT),IVORY,TRIM0#
main71440-1F280-B0i200201-200401
W(SEAT HEATER) & W/O(REAR SEAT),DK.GRAY,TRIM1#
main71440-1F290-A0i200201-200401
W(SIDE AIR BAG) & W/O(REAR SEAT),IVORY,TRIM0#
main71440-1F290-B0i200201-200401
W(SIDE AIR BAG) & W/O(REAR SEAT),DK.GRAY,TRIM1#
main71440-1F300-A0i200201-200401
W(SIDE AIR BAG & SEAT HEATER) & W/O(REAR SEAT),IVORY,TRIM0#
main71440-1F300-B0i200201-200401
W(SIDE AIR BAG & SEAT HEATER) & W/O(REAR SEAT),DK.GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-63020i200109-200401
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-63020i200109-200401
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-13160i200109-200401
main71551-13170i200109-200401
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-13160i200109-200401
main71552-13100i200110-200401
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-13050i200109-200401
main71630-13060i200109-200401
main71630-63021i200110-200401
main71630-63030i200110-200401
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-63030i200109-200401
main71640-13040i200110-200401
main71640-13060i200110-200401
main71640-13080i200109-200401
71753TRAY, FRONT SEAT UNDER
main71753-52010i200109-200401
71759BHOOK, FRONT SEATBACK
main71759-13020-A0×2i200109-200401
IVORY,TRIM0#
main71759-13020-B0i200109-200401
DK.GRAY,TRIM1#
71910AHEADREST ASSY, FRONT SEAT
main71910-13240-B0×2i200109-200401
DARK GRAY,TRIM1#
main71910-13280-A1×2i200109-200401
IVORY,TRIM0#
main71910-13280-B1×2i200109-200401
DARK GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-A0×2i200109-200401
W(LOCK),IVORY,TRIM0#
main71930-47010-B2×2i200109-200401
W(LOCK),DK.GRAY,TRIM1#
main71931-47010-A0×2i200109-200401
W/O(LOCK),IVORY,TRIM0#
main71931-47010-B2×2i200109-200401
W/O(LOCK),DK.GRAY,TRIM1#
72877COVER, SEAT ARMREST, RH
main72849-13010-A0i200109-200401
IVORY,TRIM0#
main72849-13010-B0i200109-200401
DK.GRAY,TRIM1#
72878COVER, SEAT ARMREST, LH
main72849-13010-A0i200110-200401
IVORY,TRIM0#
main72849-13010-B0i200110-200401
DK.GRAY,TRIM1#
72880ARMREST ASSY, SEAT, C RH
main72880-13050-A0i200109-200401
IVORY,TRIM0#
main72880-13050-B0i200109-200401
DARK GRAY,TRIM1#
72890ARMREST ASSY, SEAT, C LH
main72890-13010-A0i200110-200401
IVORY,TRIM0#
main72890-13010-B0i200110-200401
DARK GRAY,TRIM1#
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-13040i200110-200401
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-13010i200110-200401
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-13020i200110-200401
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-13020i200110-200401
7270213020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-13020
9016740044
main90167-40044
9046818071
main90468-18071
9356855016
main93568-55016

30 parts on this diagram · 3 diagrams in section
