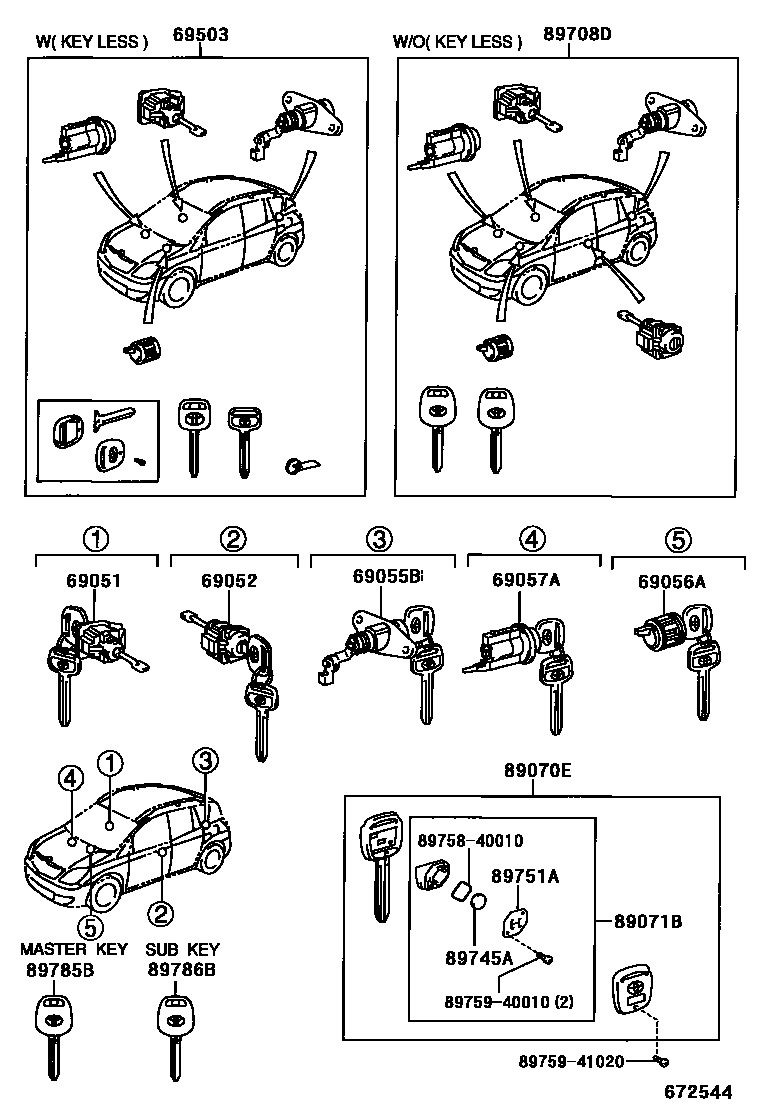

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-13230iCDE120,ZZE12#..TERRA200109-200401

main69051-13240iCDE120,ZZE12#..RHD200109-200401

W(KEY LESS ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12600iCDE120,ZZE12#..TERRA;CDE120,ZZE12#..LHD..SOL200109-200401

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-13290iCDE120,ZZE12#200109-200401

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-44010iCDE120,ZZE12#200109-200401

sub69056-60160

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main89073-13010iCDE120,ZZE12#200109-200401

W(KEY LESS ENTRY)

sub89073-13011

main89073-13020iZZE122..RHD..ATM200109-200401

HONG KONG SPEC & W(KEY LESS ENTRY)

main89708-13040iCDE120,ZZE12#..TERRA200109-200401

W/O(KEY LESS ENTRY)

sub69057-33280

69503CYLINDER SET, LOCK

main89073-13040iCDE120,ZZE12#..LHD200110-200401

sub89073-13041

main89073-13050iCDE120,ZZE12#..RHD200109-200401

main89073-13060iZZE122..RHD..ATM200109-200401

HONG KONG SPEC

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-13030iZZE122..RHD..ATM200109-200401

HONG KONG SPEC

sub89070-13031

main89070-44090iCDE120,ZZE12#200109-200401

sub89070-42211

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-33070iZZE122..RHD..ATM200109-200401

HONG KONG SPEC

main89071-60081iCDE120,ZZE12#200109-200401

89708DCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-13030iCDE120,ZZE12#..TERRA200109-200401

89745ABATTERY, TRANSMITTER

main89745-40010iCDE120,ZZE12#200109-200401

89751ACOVER, TRANSMITTER HOUSING

main89751-13010iCDE120,ZZE12#200109-200401

sub89751-13012

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iCDE120,ZZE12#..TERRA200109-200401

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iCDE120,ZZE12#200109-200401

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

16 parts on this diagram · 2 diagrams in section
