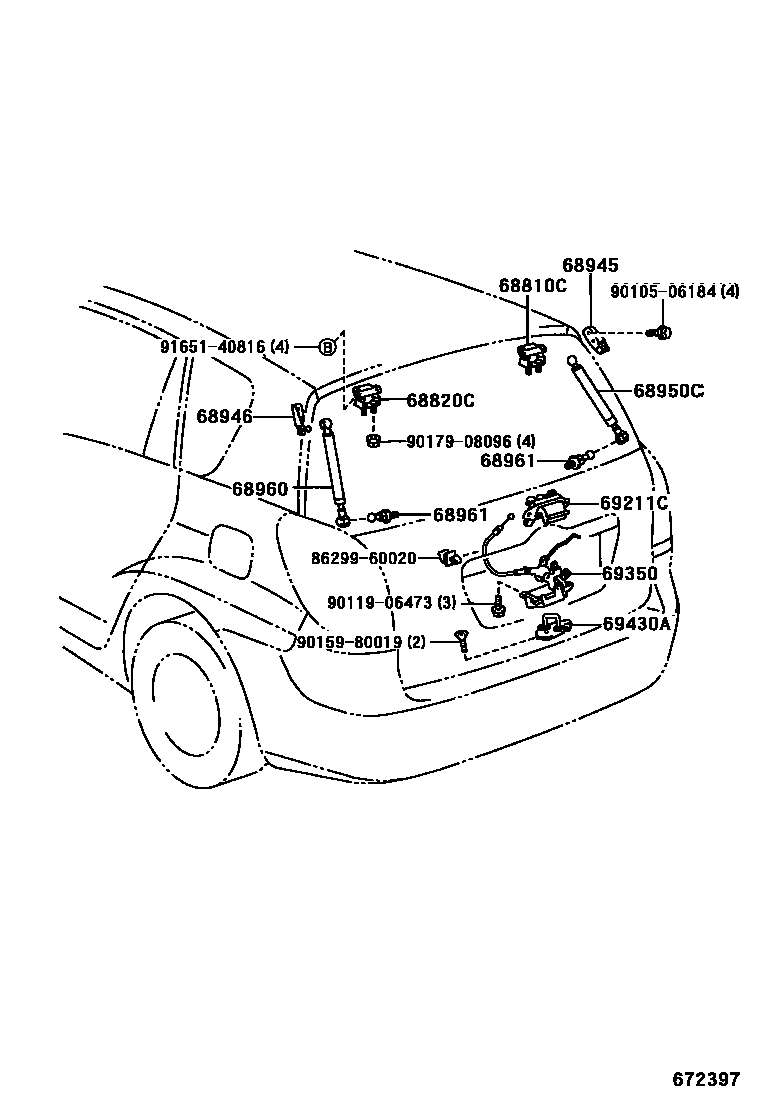

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iCDE120,ZZE12#200109-200401

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iCDE120,ZZE12#200109-200401

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13040iCDE120,ZZE12#200109-200401

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13040iCDE120,ZZE12#200109-200401

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W090iZZE122..RHD..ATM200109-200401

HONG KONG SPEC

sub68950-0W091

main68950-0W101iCDE120,ZZE12#200109-200401

68960STAY ASSY, BACK DOOR, LH

main68960-0W080iZZE122..RHD..ATM200109-200401

HONG KONG SPEC

sub68960-0W081

main68960-0W091iCDE120,ZZE12#200109-200401

68961BOLT, BACK DOOR STAY

main68961-87003iCDE120,ZZE12#200109-200401

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13020iCDE120,ZZE12#200109-200401

69350LOCK ASSY, BACK DOOR

main69350-13260iCDE120,ZZE12#200109-200401

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iCDE120,ZZE12#200109-200401

8629960020PAD, SPEAKER

main86299-60020

9010506184

main90105-06184

9011906473

main90119-06473

9015980019

main90159-80019

9017908096

main90179-08096

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
