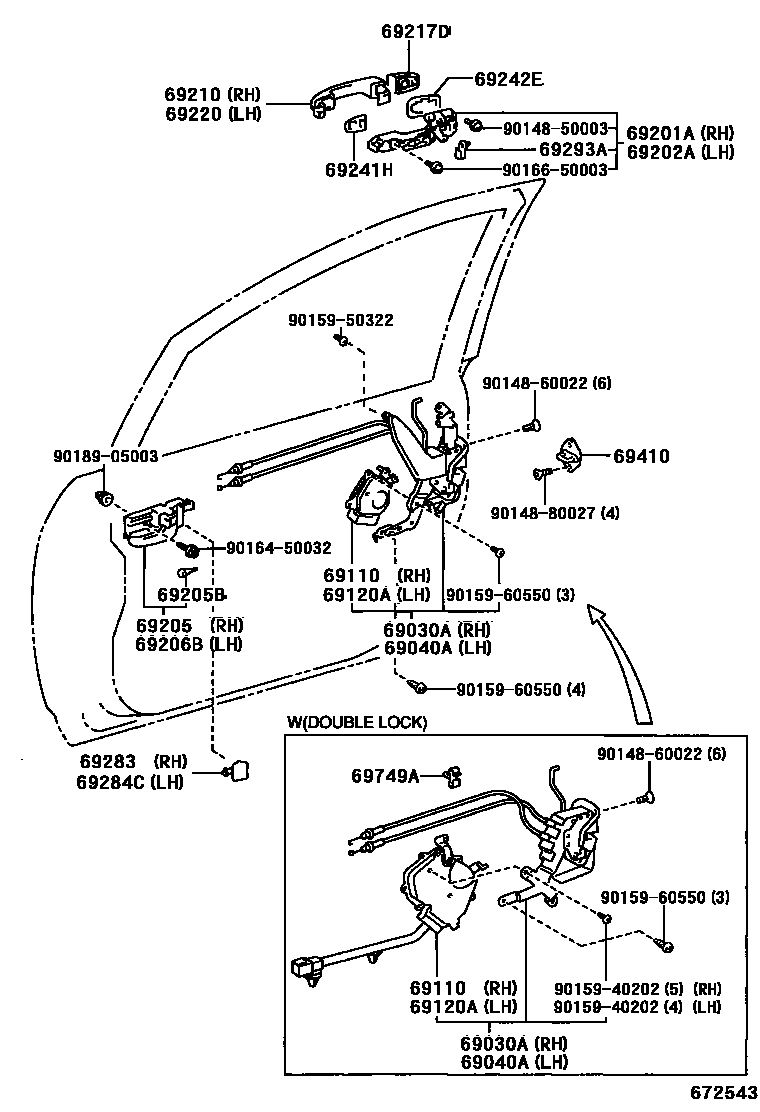

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
W(KEY LESS ENTRY)
W(DOUBLE-LOCK)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
W(KEY LESS ENTRY)
W(DOUBLE-LOCK)
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
W(KEY LESS ENTRY)
W(DOUBLE-LOCK)
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
W(KEY LESS ENTRY)
W(DOUBLE-LOCK)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
W(DOUBLE-LOCK)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
DK.GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
W(KEY LESS ENTRY),SUPER WHITE 2,040,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),SILVER ME.GR.,1D9,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),SILVER M.M.,1E7,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),BLACK ME,205,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),BLACK MC.,209,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),RED M.M.,3N8,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),BORDEAUX MC.,3P2,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),GOLD ME.,585,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),DARK GREEN MC.,6R4,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),LT.AQUA ME.OP.,761,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),DK.BLUE M.M.,8P4,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),GRAYISH BLUE ME.,8N6,PASSENGER SIDE
sub69217-12040
W(KEY LESS ENTRY),BLUE M.M.,8Q1,PASSENGER SIDE
sub69217-12040
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
BROWN
PINK
NATURAL
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9015960550
main90159-60550
9016450032
main90164-50032
9016650003
main90166-50003
9018905003
main90189-05003
28 parts on this diagram · 1 diagram in section
