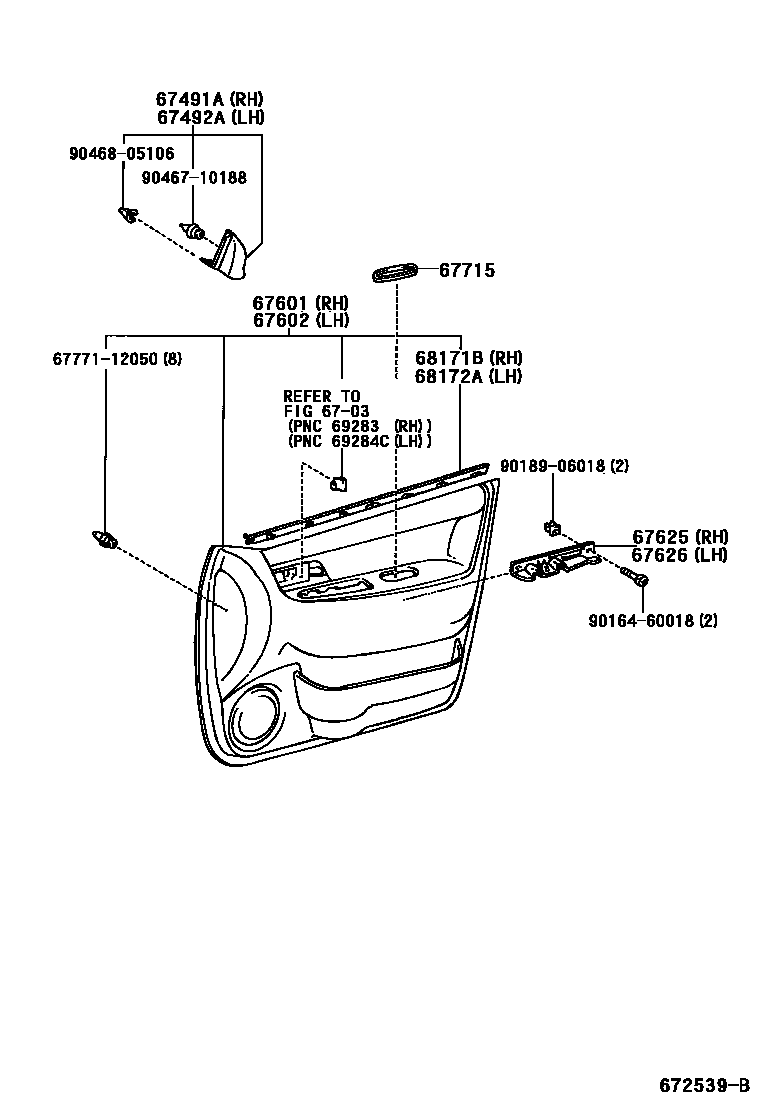

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-13030iCDE120,ZZE12#..TERRA200109-200401

main67491-13040iCDE120,ZZE12#..SOL200109-200401

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-13030iCDE120,ZZE12#..TERRA200109-200401

main67492-13040iCDE120,ZZE12#..SOL200109-200401

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-1F050-B0iCDE120,ZZE12#..TERRA200109-200401

DK.GRAY,TRIM1#

main67610-1F060-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main67610-1F060-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM1#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-13810-B0iCDE120,ZZE12#..TERRA200109-200401

DK.GRAY,TRIM1#

main67620-13820-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main67620-13820-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM1#

67625BRACKET, FRONT DOOR TRIM, RH

main67625-13010iCDE120,ZZE12#200109-200401

67626BRACKET, FRONT DOOR TRIM, LH

main67626-13010iCDE120,ZZE12#200109-200401

67715PAD, DOOR TRIM, NO.1

main67715-13010-A0×2iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main67715-13010-B0×2iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-13030iCDE120,ZZE12#200109-200401

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-13020iCDE120,ZZE12#200109-200401

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9016460018

main90164-60018

9018906018

main90189-06018

9046710188

main90467-10188

9046805106

main90468-05106

15 parts on this diagram · 3 diagrams in section
