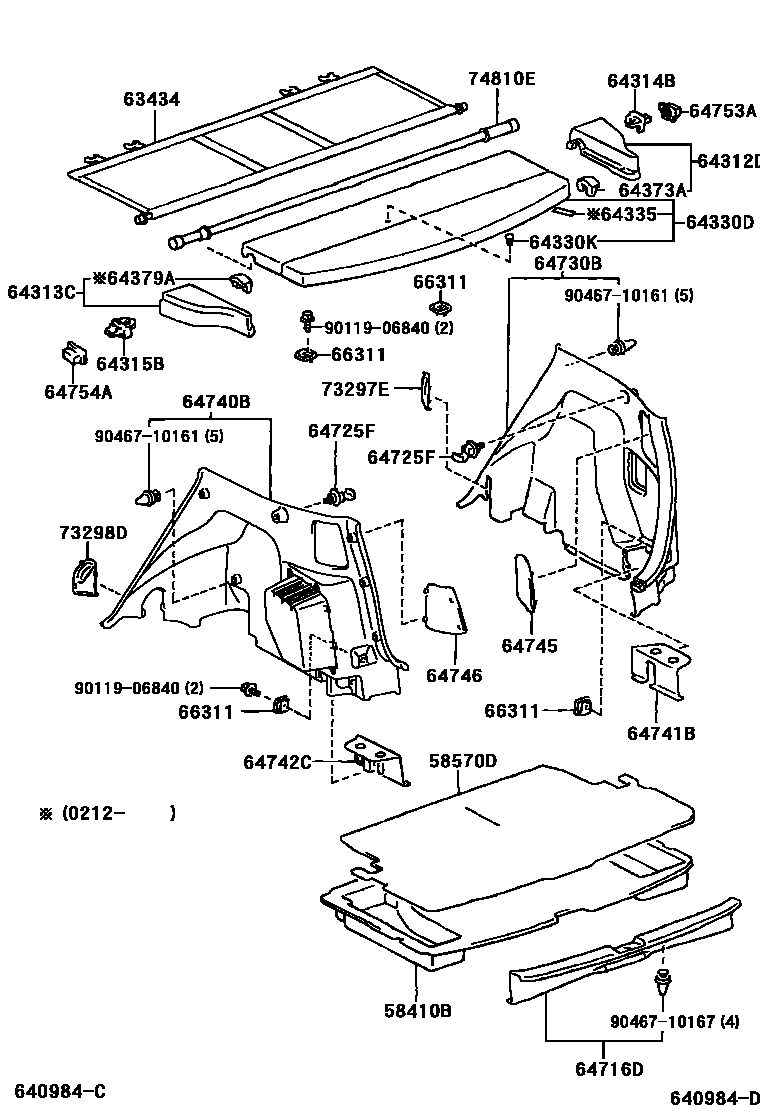

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
58570DCARPET ASSY, REAR FLOOR
IVORY,TRIM0#
GRAY,TRIM1#
63434NET, ROOM RACK
64312DBRACKET, PACKAGE TRAY, RH
64313CBRACKET, PACKAGE TRAY, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#
DARK GRAY,TRIM1#
64330KCLIP(FOR PACKAGE TRAY TRIM PANEL)
64335PAD, PACKAGE TRAY TRIM SILENCER, REAR
64373ASTOPPER, PACKAGE TRAY TRIM
64379ASTOPPER, PACKAGE TRAY TRIM, LH
64716DCOVER, DECK TRIM, REAR
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64730BPANEL ASSY, DECK TRIM SIDE, RH
DENMARK SPEC, W/O(REAR SEAT),IVORY,TRIM0#
sub64730-13190
DENMARK SPEC, W/O(REAR SEAT),DK.GRAY,TRIM1#
sub64730-13190
IVORY,TRIM0#
DK.GRAY,TRIM1#
64740BBOARD, DECK TRIM SIDE, LH
DENMARK SPEC, W/O(REAR SEAT),IVORY,TRIM0#
sub64740-13141
DENMARK SPEC, W/O(REAR SEAT),DK.GRAY,TRIM1#
sub64740-13141
IVORY,TRIM0#
DK.GRAY,TRIM1#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64753AGARNISH, DECK SIDE, REAR, RH
64754AGARNISH, DECK SIDE, REAR, LH
66311HOOK, ROPE
73297ECOVER, DECK TRIM SIDE BELT HOLE, RH
IVORY,TRIM0#
DK.GRAY,TRIM1#
73298DCOVER,DECK TRIM SIDE BELT HOLE, LH
IVORY,TRIM0#
DK.GRAY,TRIM1#
74810EBAR ASSY, SEPARATOR
9011906840
main90119-06840
9046710161
main90467-10161
9046710167
main90467-10167
29 parts on this diagram · 1 diagram in section
