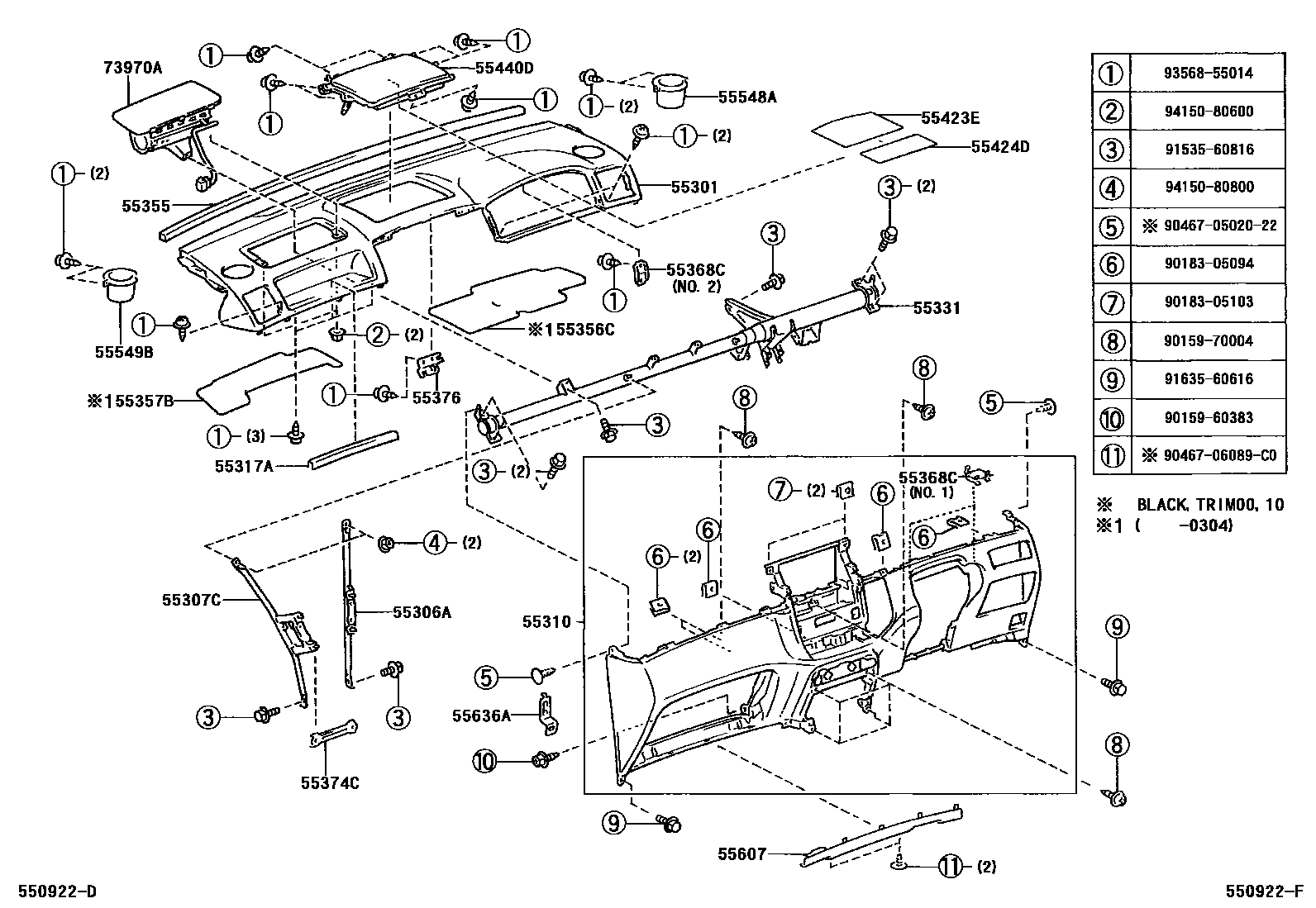

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-13010-B0iZZE122..SOL; ZZE122..TERRA200109-200110

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

main55300-13020-B0iCDE120,ZZE12#..LHD..SOL; CDE120,ZZE12#..LHD..TERRA200110-200401

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

main55300-13030-B0iCDE120,ZZE12#..RHD..SOL; CDE120,ZZE12#..RHD..TERRA200110-200210

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-13030iCDE120,ZZE12#..LHD200110-200401

main55306-13040iCDE120,ZZE12#..RHD200109-200401

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-13020iCDE120,ZZE12#..RHD200109-200401

main55307-13030iCDE120,ZZE12#..LHD200110-200401

55310PANEL ASSY, INSTRUMENT, LOWER

main55310-13010-A1iCDE120,ZZE12#..RHD..SOL200109-200401

IVORY,TRIM0#

main55310-13010-B1iCDE120,ZZE12#..RHD200109-200401

DK.GRAY,TRIM1#

main55310-13020-A1iCDE120,ZZE12#..LHD..SOL200110-200401

IVORY,TRIM0#

main55310-13020-B1iCDE120,ZZE12#..LHD200110-200401

DK.GRAY,TRIM1#

55317APANEL, INSTRUMENT SIDE, RH

main55317-13060-B0iCDE120,ZZE12#..RHD..SOL; CDE120,ZZE12#..RHD..TERRA200109-200401

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-13020iCDE120,ZZE12#..RHD200109-200111

main55330-13021iCDE120,ZZE12#..RHD200111-200401

main55330-13050iCDE120,ZZE12#..LHD200110-200111

main55330-13051iCDE120,ZZE12#..LHD200111-200401

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iCDE120,ZZE12#200109-200401

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-13050iCDE120,ZZE12#..RHD200209-200304

main55356-13060iCDE120,ZZE12#..LHD200209-200304

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-13050iCDE120,ZZE12#..RHD200209-200304

main55357-13060iCDE120,ZZE12#..LHD200209-200304

55368CBRACKET, METER MOUNTING

main55362-12050×2iCDE120,ZZE12#200109-200401

NO.1

main55368-13020iCDE120,ZZE12#200109-200401

NO.2

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55349-13010iCDE120,ZZE12#..MTM200109-200401

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-13020iCDE120,ZZE12#200109-200401

55423ECUSHION, CENTER CLUSTER, NO.1

main55423-13010iCDE120,ZZE12#200109-200401

55424DCUSHION, CENTER CLUSTER, NO.2

main55424-13020iCDE120,ZZE12#200109-200401

55440DBOX ASSY, INSTRUMENT PANEL

main55440-13010-B0iCDE120,ZZE12#..SOL; CDE120,ZZE12#..TERRA200109-200302

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

main55440-13011-B0iCDE120,ZZE12#..SOL; CDE120,ZZE12#..TERRA200302-200401

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-13050-B0iCDE120,ZZE12#..SOL; CDE120,ZZE12#..TERRA200109-200401

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-13010-B0iCDE120,ZZE12#..SOL; CDE120,ZZE12#..TERRA200109-200401

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-13030-A0iCDE120,ZZE12#..RHD..SOL200109-200401

IVORY,TRIM0#

main55607-13030-B0iCDE120,ZZE12#..RHD200109-200401

DK.GRAY,TRIM1#

main55607-13040-A0iCDE120,ZZE12#..LHD..SOL200110-200401

IVORY,TRIM0#

main55607-13040-B0iCDE120,ZZE12#..LHD200110-200401

DK.GRAY,TRIM1#

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-13010iCDE120,ZZE12#..RHD200109-200401

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55637-13010iCDE120,ZZE12#..RHD200109-200401

main55637-13020iCDE120,ZZE12#..LHD200110-200401

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-13020-B0iCDE120,ZZE12#..RHD..SOL; CDE120,ZZE12#..RHD..TERRA200109-200401

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

main73970-13030-B0iCDE120,ZZE12#..LHD..SOL; CDE120,ZZE12#..LHD..TERRA200110-200401

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

9015960383

main90159-60383

9015970004

main90159-70004

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046706089C0

main90467-06089C0

9153560816

main91535-60816

9163560616

main91635-60616

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

32 parts on this diagram · 4 diagrams in section
