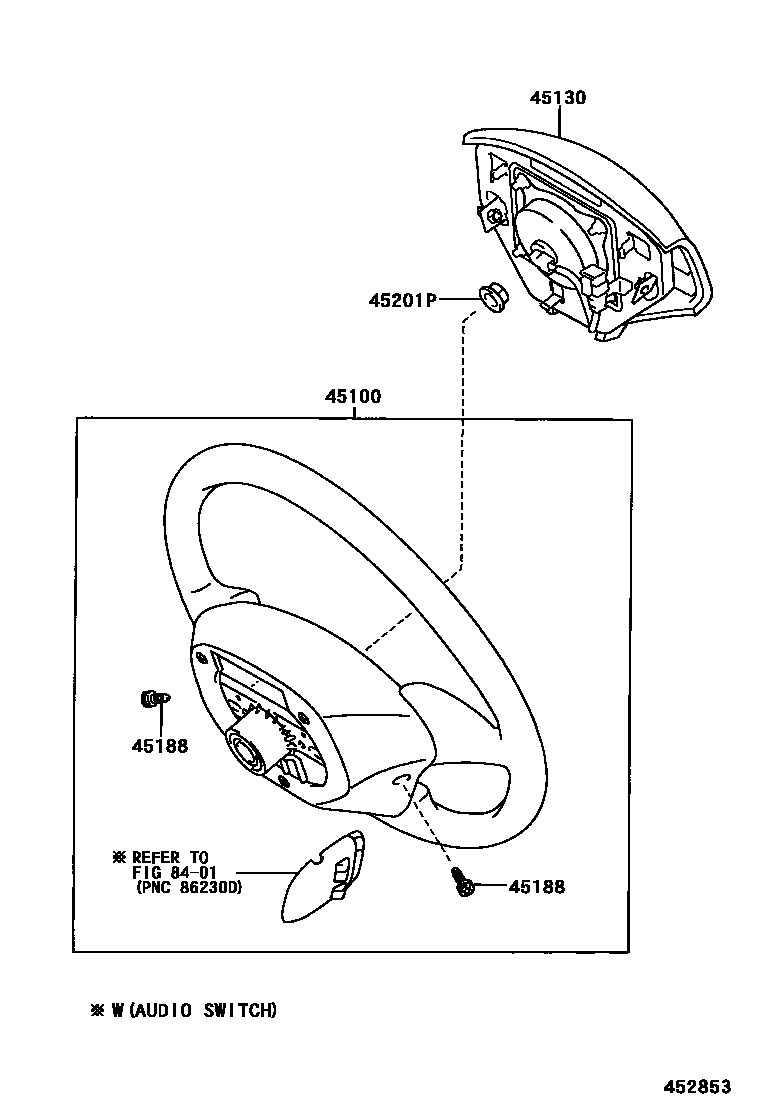

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-13030-B0iCDE120,ZZE12#..TERRA200109-200401

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

sub45100-13030

main45100-13040-B0iCDE120,ZZE12#..TERRA200109-200401

3-SPOKE,URETHANE,W(AUDIO SWITCH),DK.GRAY,TRIM1#

main45100-13050-B0iCDE120,ZZE12#..SOL200109-200401

3-SPOKE,LEATHER,DK.GRAY,TRIM0#,1#

main45100-13060-B0iCDE120,ZZE12#..SOL200109-200401

3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM0#,1#

45130BUTTON ASSY, HORN

main45130-13040-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM0#,1#

main45130-13040-B0iCDE120,ZZE12#..SOL200109-200401

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007iCDE120,ZZE12#200109-200401

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iCDE120,ZZE12#200109-200401

8401

5 parts on this diagram · 1 diagram in section
