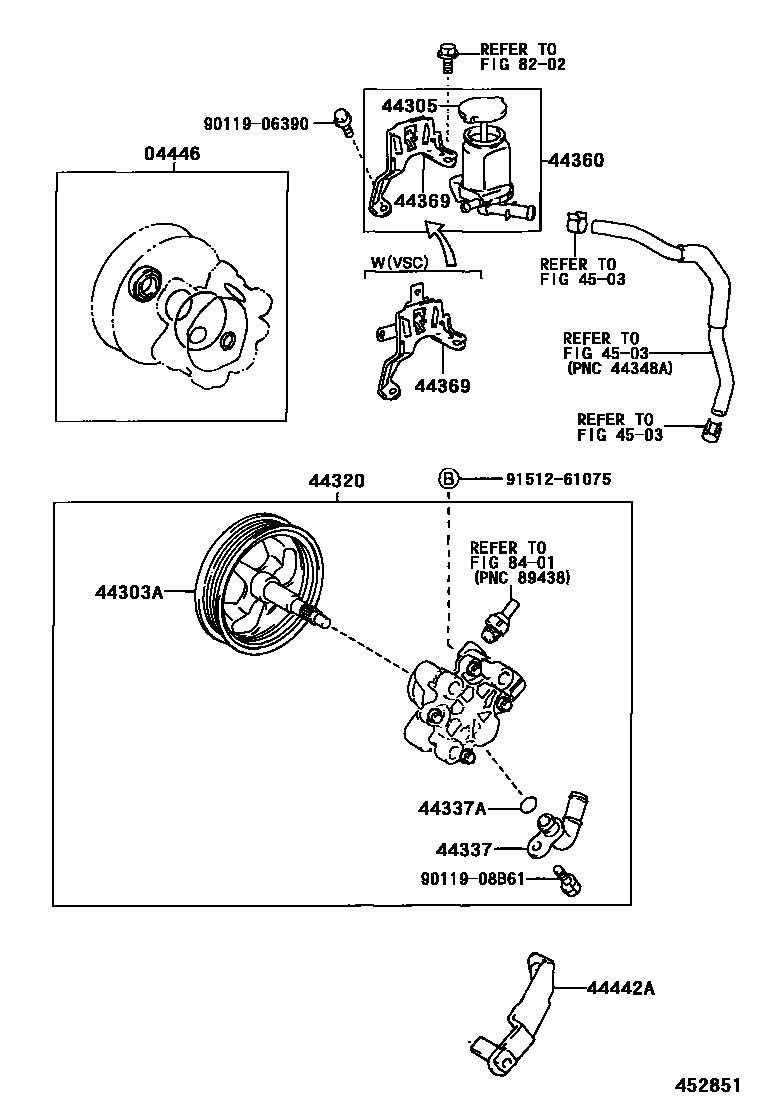

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iCDE120,ZZE12#200109-200401

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-12030iCDE120200110-200401

main44303-32010iZZE12#200109-200401

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iCDE120,ZZE12#200109-200401

44320PUMP ASSY, VANE

main44310-12560iCDE120200110-200401

main44310-13010iZZE12#200109-200401

44337UNION, POWER STEERING SUCTION PORT

main44337-12130iCDE120200110-200401

main44337-48010iZZE12#200109-200401

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iCDE120,ZZE12#200109-200401

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-12070iZZE122200109-200110

main44360-12100iZZE122..ATM..SOL200109-200401

W(VSC)

main44360-13010iCDE120200110-200401

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iCDE120,ZZE12#200109-200401

main44369-12070iZZE122..ATM..SOL200109-200401

W(VSC)

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZE12#200109-200401

main44442-13010iCDE120200110-200401

4503POWER STEERING TUBE

→ Go to FIG 45-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

9011908B61

main90119-08B61

9151261075

main91512-61075

15 parts on this diagram · 2 diagrams in section
