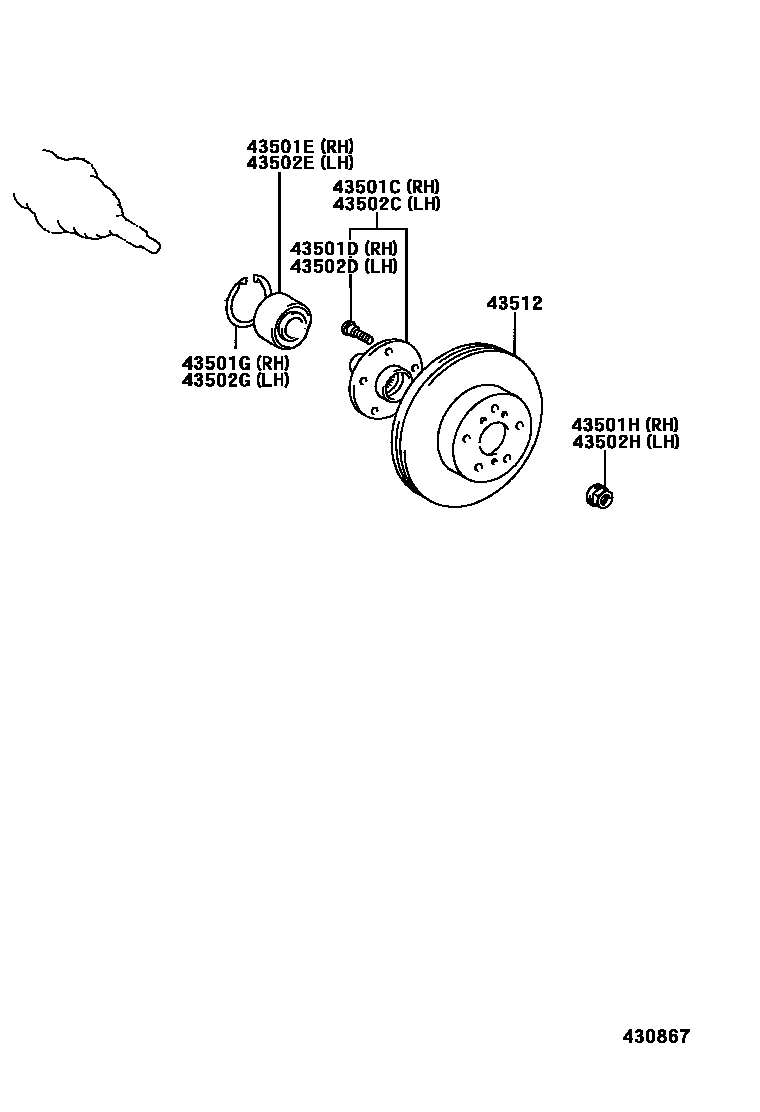

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12140iCDE120,ZZE12#200109-200401

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iCDE120,ZZE12#200109-200401

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iCDE120,ZZE12#200109-200401

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iCDE120,ZZE12#200109-200401

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iCDE120,ZZE12#200109-200401

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12140iCDE120,ZZE12#200109-200401

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iCDE120,ZZE12#200109-200401

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iCDE120,ZZE12#200109-200401

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iCDE120,ZZE12#200109-200401

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iCDE120,ZZE12#200109-200401

43512DISC, FRONT

main43512-13020iCDE120,ZZE122200109-200304

sub43512-13021

main43512-13021iCDE120,ZZE122200304-200401

sub43512-13022

main43512-13030iZZE121200110-200401

sub43512-47020

11 parts on this diagram · 1 diagram in section
