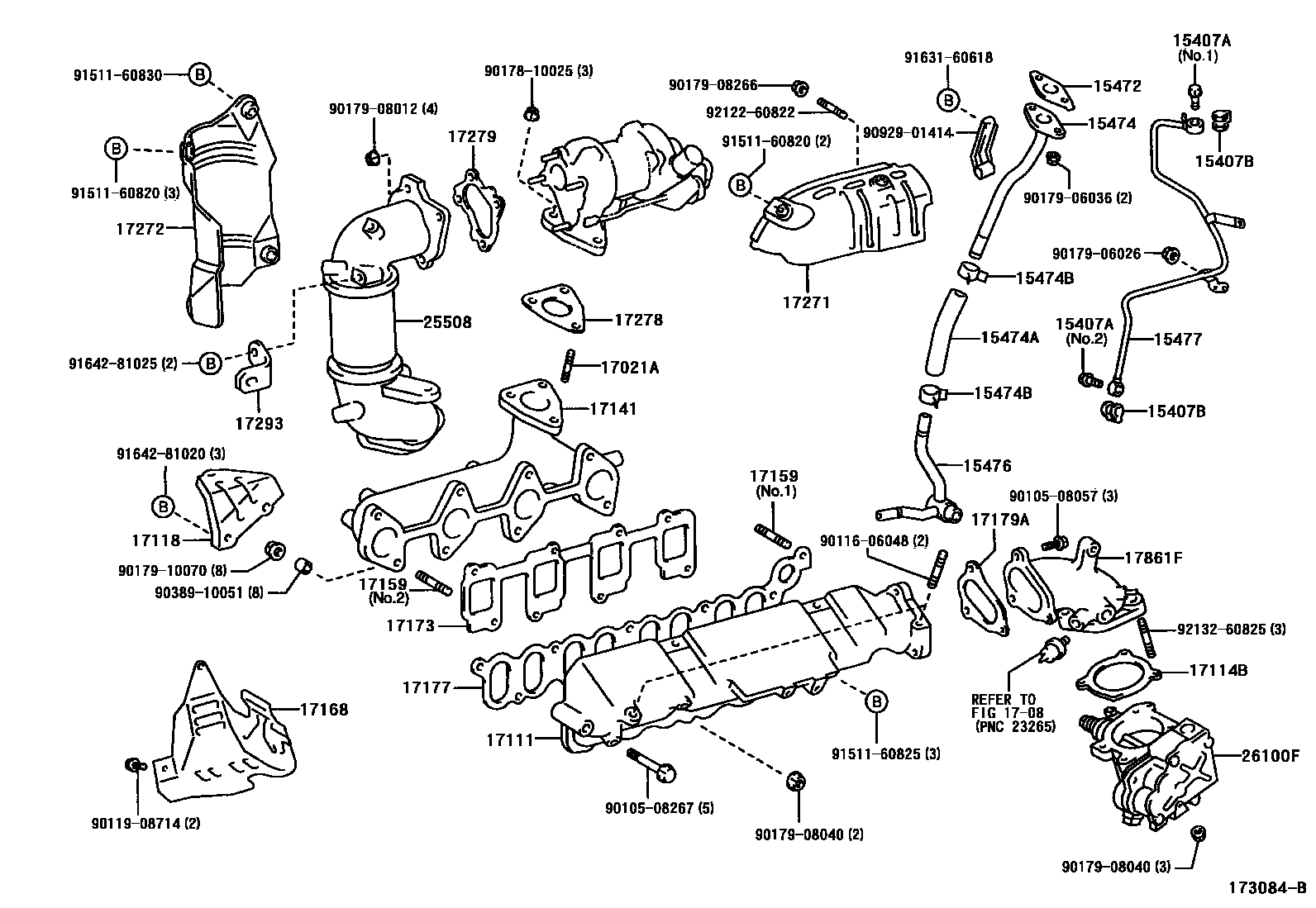

MANIFOLD
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
NO.1
NO.2
15407BGASKET(FOR TURBO OIL INLET PIPE)
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15474AHOSE, TURBO OIL OUTLET
15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
sub96134-41900
15476PIPE, TURBO OIL OUTLET, NO.2
15477PIPE, TURBO OIL INLET
17021HOUSING SUB-ASSY, BEARING
17021ABOLT, STUD(FOR BEARING HOUSING)
1708
17114BGASKET, INTAKE FLANGE
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.2
NO.2
NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17179AGASKET, INTAKE MANIFOLD, NO.2
17271INSULATOR, TURBO, NO.1
17272INSULATOR, TURBO, NO.2
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
17861FCONNECTOR, INTAKE AIR
25508CONVERTER SUB-ASSY, MANIFOLD
26100FSHUTTER ASSY, INTAKE
9010508057
main90105-08057
9010508267
main90105-08267
9011606048
main90116-06048
9011908714
main90119-08714
9017810025
main90178-10025
9017906026
main90179-06026
9017906036
main90179-06036
9017908012
main90179-08012
9017908040
main90179-08040
9017908266
main90179-08266
9017910070
main90179-10070
9038910051
main90389-10051
9092901414
main90929-01414
9151160820
main91511-60820
9151160825
main91511-60825
9151160830
main91511-60830
9163160618
main91631-60618
9164281020
main91642-81020
9164281025
main91642-81025
9212260822
main92122-60822
9213260825
main92132-60825
49 parts on this diagram · 4 diagrams in section
