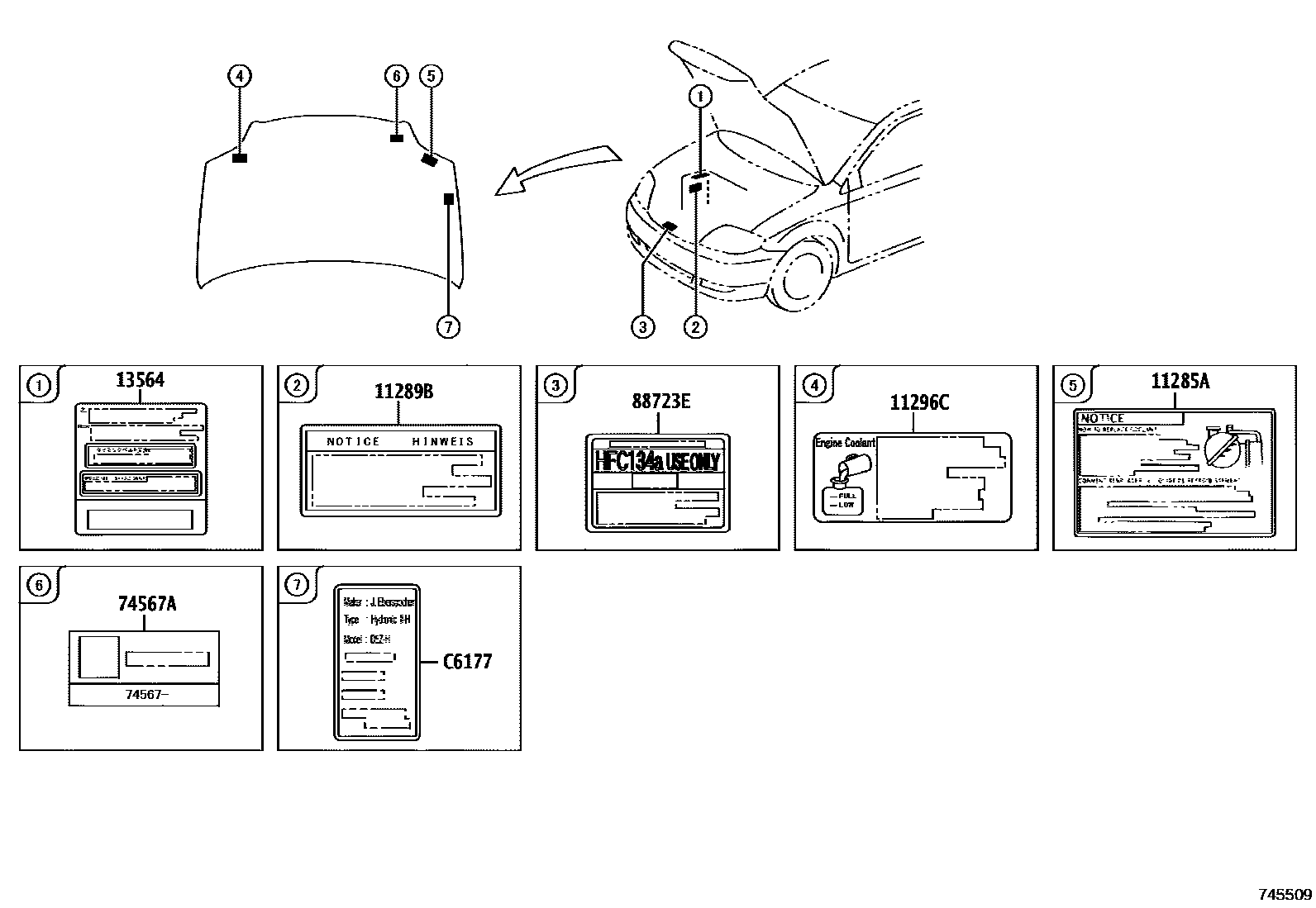

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR & INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0G010i1CDFTV..CDE120..UKP200301-200405

main11285-27030i1CDFTV..CDE120..UKP200111-200301

11289BLABEL, SPARK PLUG NOTICE

main11289-50010i2ZZGE..ZZE123..UKP200111-200405

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#200310-200405

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010i1CDFTV..CDE120..UKP200111-200405

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iCDE120..UKP..(DCR,HDCR)200111-200405

main74567-26201iNDE120..UKP200408

main74567-26250iCDE120..UKP200405

88723ELABEL, COOLER SERVICE CAUTION

main88723-12140iCDE120,ZZE12#..UKP200111-200405

main88723-28220iCDE120..UKP..LHD..DCRL;CDE120,ZZE120,121..UKP..(DCR,HDCR,HTWC)200111-200405

W(DEALER OPTION MANUAL AIR CONDITIONER)

main88733-12030iCDE120,NDE120,ZZE12#..UKP200405

C6177LABEL, HEATER NOTICE

mainC617705010iNDE120..UKP..LHD..5F200408

7 parts on this diagram · 2 diagrams in section
