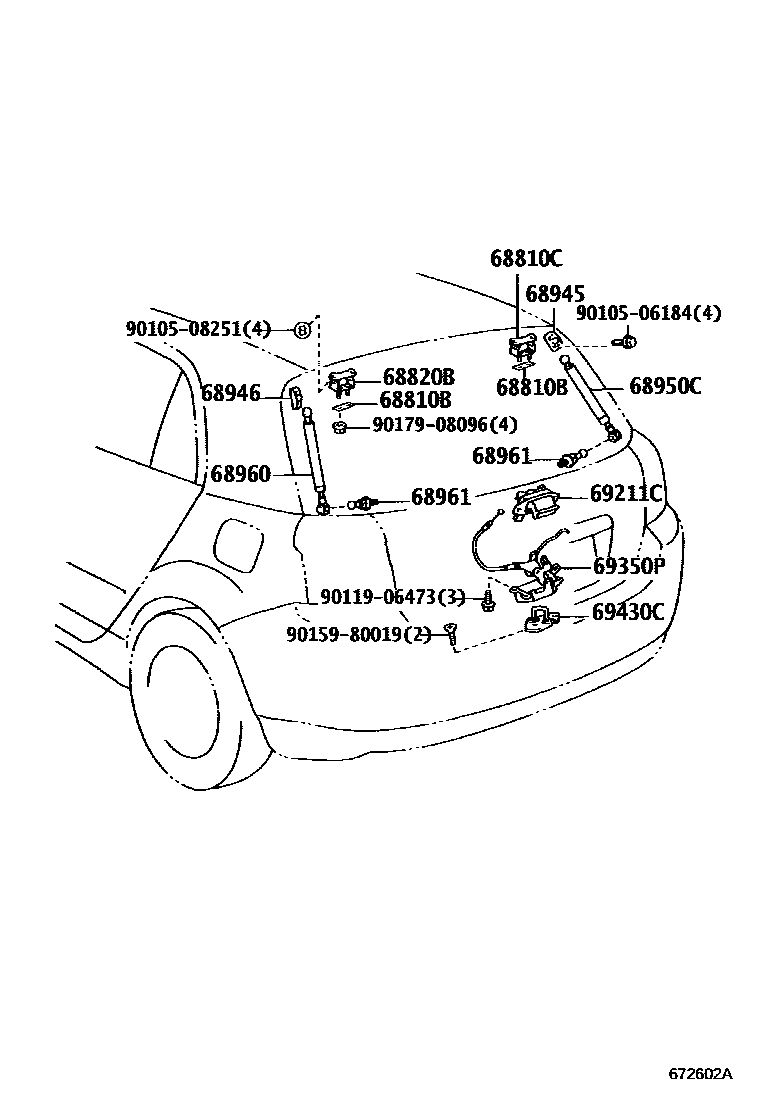

BACK DOOR LOCK & HANDLE

68810BPAD, BACK DOOR HINGE

main68838-05020iCDE120,ZZE12#..UKP200111-200405

sub68838-44020

68810CHINGE ASSY, BACK DOOR, RH

main68810-05010iCDE120..UKP..HDCR200111-200702

sub68810-21050

68820BHINGE ASSY, BACK DOOR, LH

main68810-05010iCDE120..UKP..HDCR200111-200702

sub68810-21050

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-02010iCDE120,ZZE12#..UKP200111-200405

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-02010iCDE120,ZZE12#..UKP200111-200405

68950CSTAY ASSY, BACK DOOR, RH

main68950-02040iCDE120,ZZE12#..UKP200111-200411

sub68950-02041

main68950-02041iCDE120,NDE120,ZZE12#..UKP200412

sub68950-02042

68960STAY ASSY, BACK DOOR, LH

main68960-02030iCDE120,ZZE12#..UKP200111-200411

sub68960-02031

main68960-02031iCDE120,NDE120,ZZE12#..UKP200412

sub68960-02032

68961BOLT, BACK DOOR STAY

main68961-02020iCDE120,ZZE12#..UKP200111-200405

sub68961-05010

69211CHANDLE, BACK DOOR OUTSIDE

main69023-02010iCDE120,ZZE12#..UKP200111-200405

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-02030iCDE120,ZZE120,121..UKP..LHD..TERRA200301-200407

main69350-02031iCDE120,NDE120,ZZE120,121..UKP..LHD..TERRA200408

main69350-02040iCDE120,ZZE12#..UKP200301-200407

W(POWER DOOR LOCK)

sub69350-02041

main69350-02041iCDE120,NDE120,ZZE12#..UKP200408

W(POWER DOOR LOCK)

main69350-13290iCDE120,ZZE120,121..UKP..TERRA200111-200301

main69350-13300iCDE120,ZZE12#..UKP200111-200301

W(POWER DOOR LOCK)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D010iCDE120,ZZE12#..UKP200301-200405

(L)

main69430-0D010iCDE120,NDE120,ZZE12#..UKP200405

main69430-52020iCDE120,ZZE12#..UKP200111-200301

main69430-52020iCDE120,ZZE12#..UKP200301-200405

(J)

9010506184

main90105-06184

9010508251

main90105-08251

9011906473

main90119-06473

9015980019

main90159-80019

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section
