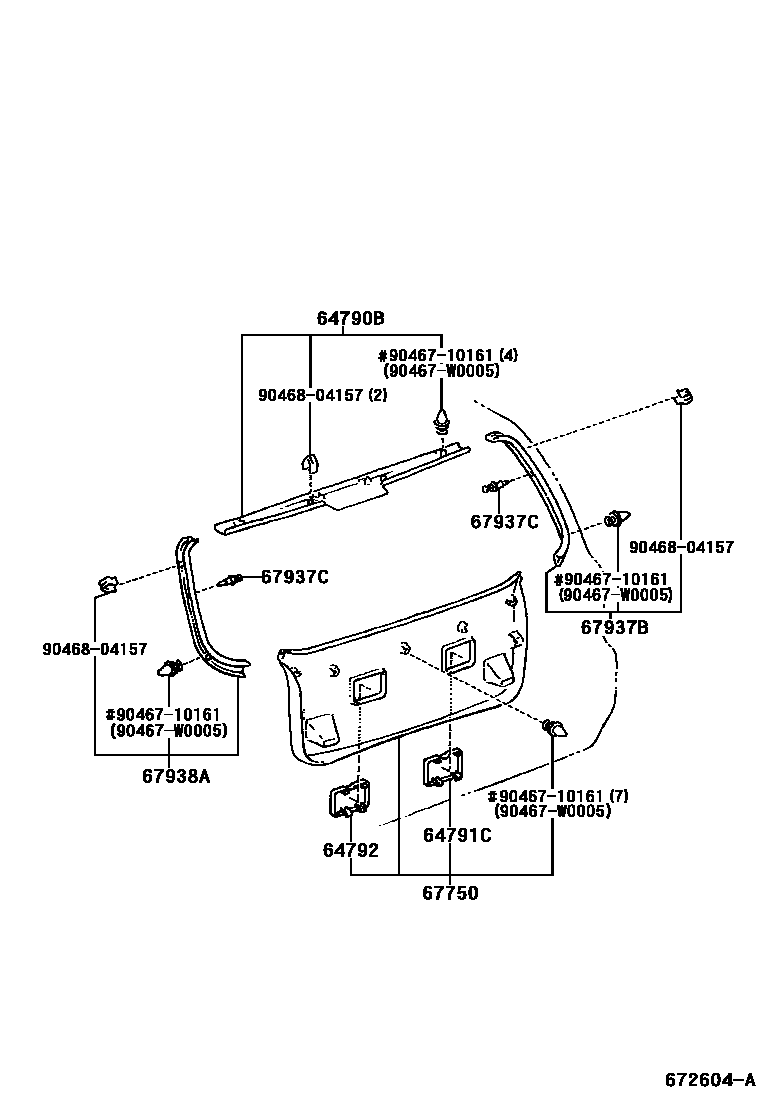

BACK DOOR PANEL & GLASS

0001 1 0002 1

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-02010-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM1#

main64790-02010-B0iZZE123..UKP200111-200405

DK.GRAY,TRIM1#,8#

main64790-02010-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM0#,1#

64791CCOVER, BACK DOOR TRIM, RH

main64791-02030-B0iCDE120..UKP..HDCR200111-200702

DK.GRAY,TRIM0#,1#

main64791-02030-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM1#

main64791-02030-B0iZZE123..UKP200111-200405

DK.GRAY,TRIM1#,8#

64792COVER, BACK DOOR TRIM, LH

main64791-02030-B0iCDE120..UKP..HDCR200111-200702

DK.GRAY,TRIM0#,1#

main64791-02030-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM1#

main64791-02030-B0iZZE123..UKP200111-200405

DK.GRAY,TRIM1#,8#

67750BOARD ASSY, BACK DOOR TRIM

main67750-02020-B0iZZE123..UKP200111-200405

DK.GRAY,TRIM1#,8#

main67750-02020-B0iCDE120..UKP..HDCR200111-200702

DK.GRAY,TRIM0#,1#

main67750-02020-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM1#

67937BGARNISH, BACK DOOR SIDE, RH

main67937-02010-B0iZZE123..UKP200111-200405

DK.GRAY,TRIM1#,8#

main67937-02010-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM0#,1#

main67937-02010-B0iCDE120,ZZE120,121..UKP..TERRA200111-200702

DK.GRAY,TRIM1#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main64338-02010-B0iCDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC)200111-200702

DK.GRAY,TRIM1#

main64338-02010-B0iCDE120..UKP..HDCR200111-200702

DK.GRAY,TRIM0#,1#

main64338-02010-B0iZZE123..UKP200111-200405

DK.GRAY,TRIM1#,8#

67938AGARNISH, BACK DOOR SIDE, LH

main67938-02010-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM0#,1#

main67938-02010-B0iZZE123..UKP200111-200702

DK.GRAY,TRIM1#

main67938-02010-B0iZZE123..UKP200111-200405

DK.GRAY,TRIM1#,8#

9046710161

main90467-10161

90467W0005

main90467-W0005

9046804157

main90468-04157

10 parts on this diagram · 2 diagrams in section
