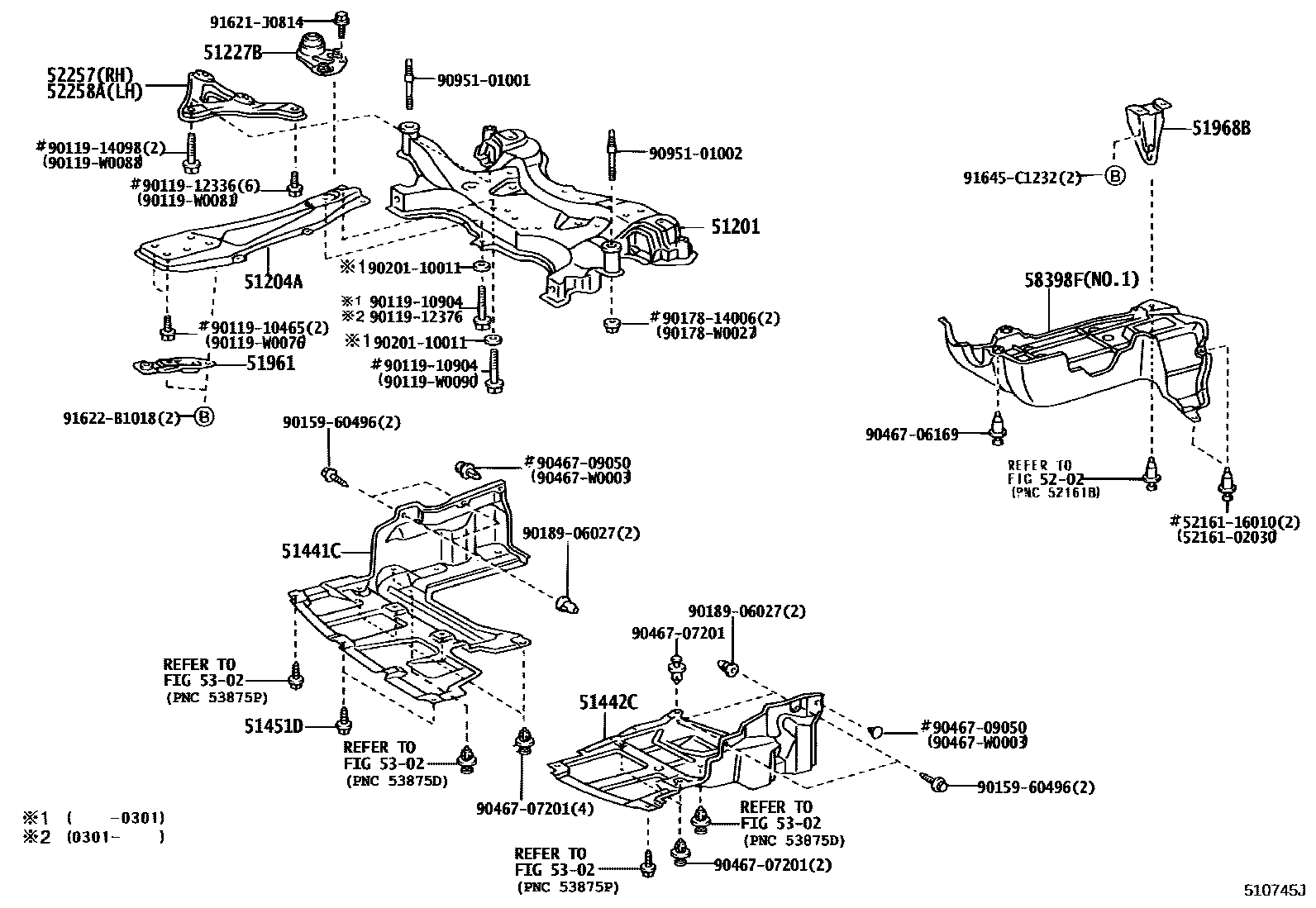

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02080iCDE120,ZZE12#..UKP200111-200209

main51201-02081iCDE120,ZZE12#..UKP200209-200304

main51201-02082iCDE120,ZZE12#..UKP200304-200405

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02041iCDE120,ZZE12#..UKP200111-200301

main51204-05021iZZE123..UKP200301-200402

main51204-05022iZZE123..UKP200402-200405

main51204-05050iCDE120,ZZE120,121..UKP200301-200402

main51204-05051iCDE120,ZZE120,121..UKP200402-200405

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-02040iZZE123..UKP200301-200405

main51227-12090iZZE123..UKP200405

51441CCOVER, ENGINE UNDER, RH

main51410-02020iCDE120,ZZE123..UKP..(DCR,HDCR,TWC)200111-200405

main51410-02050iCDE120..UKP..DCRL200304-200405

main51410-02070iNDE120..UKP200408-200702

main51410-02110iZZE123..UKP200405-200702

main51441-02080iZZE120,121..UKP200405-200702

51442CCOVER, ENGINE UNDER, LH

main51420-02020iZZE123..UKP200111-200405

main51420-02040iCDE120..UKP..DCRL200304-200405

main51420-02080iZZE123..UKP200405

main51442-02110iCDE120,ZZE120,121..5F..(DCR,HTWC)200111-200405

main51442-02120iZZE121..UKP..4FC200111-200405

main51442-02150iCDE120..UKP..HDCR200111-200304

51451DSCREW, NO.1

main90159-60488×2iCDE120,ZZE12#..UKP200111-200405

51961HOOK, NO.1

main51960-02020iCDE120,ZZE12#..UKP200111-200405

51968BHOOK, TRANSPORT, REAR LH

main51968-02020iCDE120,ZZE12#..UKP200111-200405

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02020iCDE120,ZZE12#..UKP200111-200405

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02020iCDE120,ZZE12#..UKP200111-200405

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

58398FCOVER, FLOOR UNDER, NO.1

main58398-02010iCDE120,ZZE12#..UKP200111-200405

main58399-13070iZZE123..UKP200405

NO.2

5216102030CUSHION, REAR BUMPER GUARD, NO.1

main52161-02030

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011910465

main90119-10465

9011910904

main90119-10904

9011912336

main90119-12336

9011912376

main90119-12376

9011914098

main90119-14098

90119W0076

main90119-W0076

90119W0081

main90119-W0081

90119W0088

main90119-W0088

90119W0090

main90119-W0090

9015960496

main90159-60496

9017814006

main90178-14006

90178W0027

main90178-W0027

9018906027

main90189-06027

9020110011

main90201-10011

9046706169

main90467-06169

9046707201

main90467-07201

9046709050

main90467-09050

90467W0003

main90467-W0003

9095101001

main90951-01001

9095101002

main90951-01002

91621J0814

main91621-J0814

91622B1018

main91622-B1018

91645C1232

main91645-C1232

38 parts on this diagram · 3 diagrams in section
