Toyota COROLLA HB (UKP)153 — STEERING WHEEL

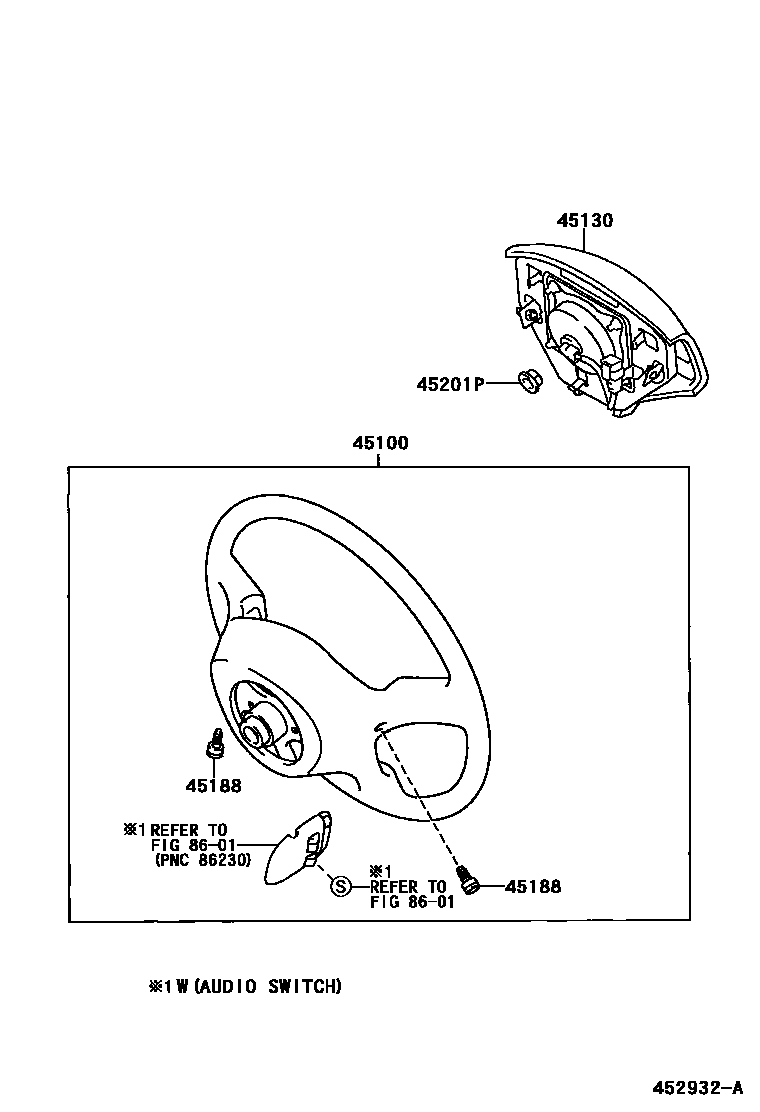

Parts diagram
45100WHEEL ASSY, STEERING
45100-02200
45100-02220
45100-02230
45100-02240
45100-02390
45100-02400
45100-02410
45100-02421
45100-02470
45100-02480
45100-12A10
45100-12A11
45100-12A50
45100-12A51
45130BUTTON ASSY, HORN
45130-02160
45130-02230
45130-02260
45130-02270
45130-12A10
45188SCREW, STEERING WHEEL PAD ATTACHING
45188-60010
90080-14018
45201PNUT, STEERING WHEEL SET
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01

5 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota COROLLA HB (UKP)153

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota COROLLA HB (UKP)153. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, BUTTON ASSY, HORN, SCREW, STEERING WHEEL PAD ATTACHING, NUT, STEERING WHEEL SET.
