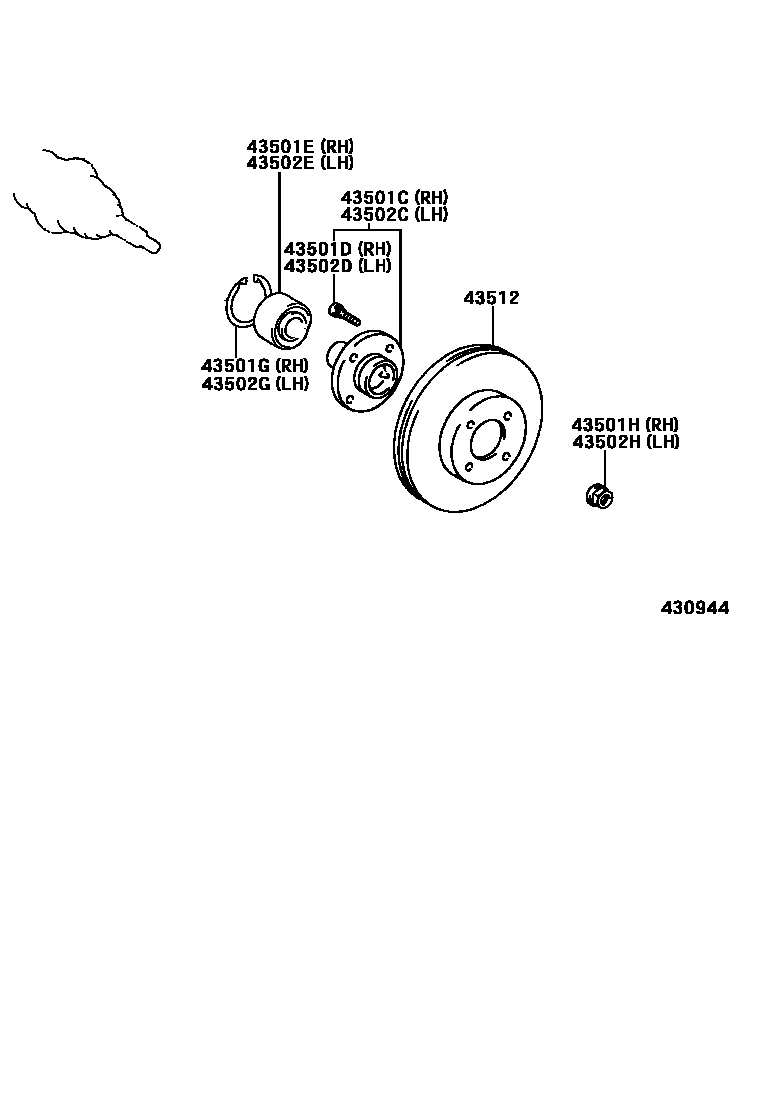

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-02021iCDE120,ZZE12#..UKP200112-200306

(L)

sub43502-02060

main43502-02021iCDE120,ZZE12#..UKP200111-200405

sub43502-02060

main43502-12140iCDE120,ZZE12#..UKP200112-200306

(J)

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iCDE120,NDE120,ZZE12#..UKP200111-200405

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36087iCDE120,ZZE12#..UKP200111-200405

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iCDE120,ZZE12#..UKP200111-200702

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iCDE120,ZZE12#..UKP200111-200405

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-02021iCDE120,ZZE12#..UKP200111-200405

sub43502-02060

main43502-02021iCDE120,ZZE12#..UKP200112-200306

(L)

sub43502-02060

main43502-12140iCDE120,ZZE12#..UKP200112-200306

(J)

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iCDE120,ZZE12#..UKP200111-200405

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36087iCDE120,ZZE12#..UKP200111-200405

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iCDE120,ZZE12#..UKP200111-200702

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iCDE120,ZZE12#..UKP200111-200405

43512DISC, FRONT

main43512-02070iZZE120,121..UKP200111-200702

sub43512-02071

main43512-02080iCDE120,ZZE123..UKP200111-200702

sub43512-02081

11 parts on this diagram · 1 diagram in section
