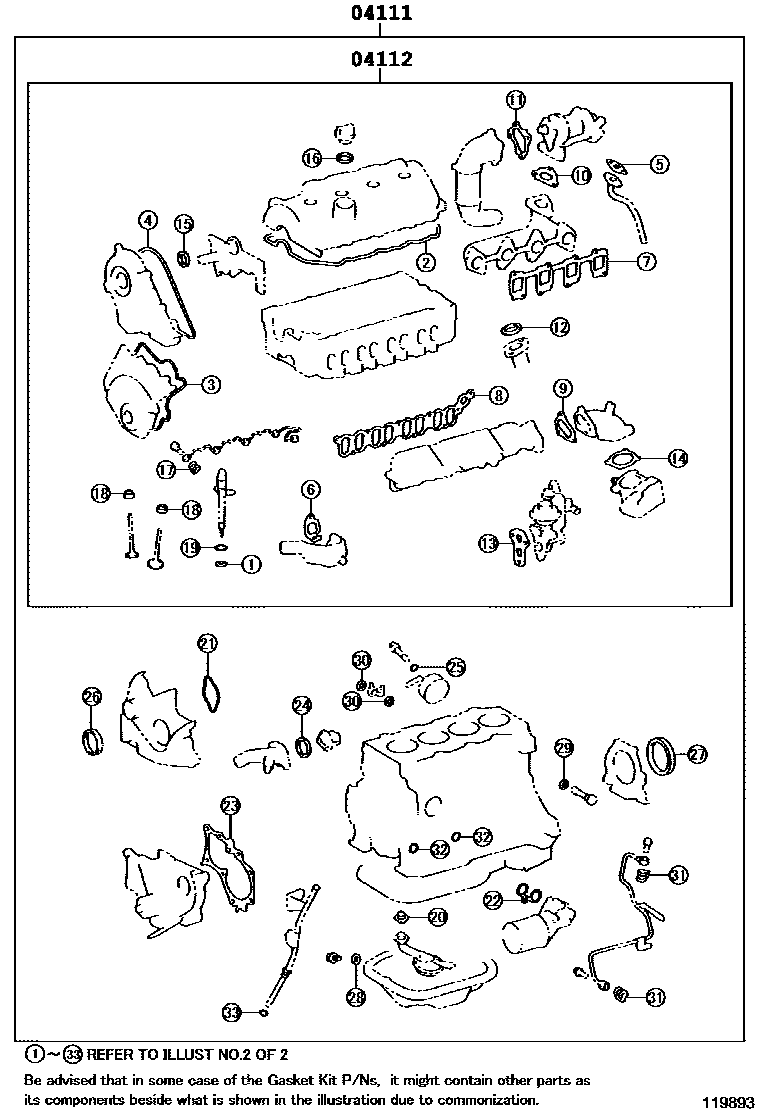

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0D100i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200206

sub04111-0D101

main04111-0D101i3ZZFE,4ZZFE..ZZE120,121..UKP200206-200302

sub04111-0D102

main04111-0D102i3ZZFE,4ZZFE..ZZE120,121..UKP200302-200405

sub04111-0D103

main04111-0D282i4ZZFE..ZZE120..UKP200405

sub04111-0D103

main04111-0D410i3ZZFE..ZZE121..UKP200405

sub04111-0D381

main04111-0G010i1CDFTV..CDE120..UKP..DCRL200304-200405

sub04111-0G100

main04111-0G100i1CDFTV..CDE120..UKP200405-200603

sub04111-27190

main04111-0N030i1NDTV..NDE120..UKP200408

main04111-22140i2ZZGE..ZZE123..UKP200111-200302

sub04111-22141

main04111-22141i2ZZGE..ZZE123..UKP200302-200405

main04111-22720i2ZZGE..ZZE123..UKP200405

main04111-27100i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

main04111-27190i1CDFTV..CDE120..UKP200603

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0D100i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200206

sub04112-0D101

main04112-0D101i3ZZFE,4ZZFE..ZZE120,121..UKP200206-200302

sub04112-0D102

main04112-0D102i3ZZFE,4ZZFE..ZZE120,121..UKP200302-200405

sub04112-0D103

main04112-0D281i4ZZFE..ZZE120..UKP200405

sub04112-0D103

main04112-0D291i3ZZFE..ZZE121..UKP200405

sub04112-0D371

main04112-0G010i1CDFTV..CDE120..UKP..DCRL200304-200405

sub04112-0G100

main04112-0G100i1CDFTV..CDE120..UKP200405-200603

sub04112-27180

main04112-0N030i1NDTV..NDE120..UKP200408

main04112-22140i2ZZGE..ZZE123..UKP200111-200302

sub04112-22141

main04112-22141i2ZZGE..ZZE123..UKP200302-200405

main04112-22241i2ZZGE..ZZE123..UKP200405

main04112-27090i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

main04112-27180i1CDFTV..CDE120..UKP200603

2 parts on this diagram · 12 diagrams in section
