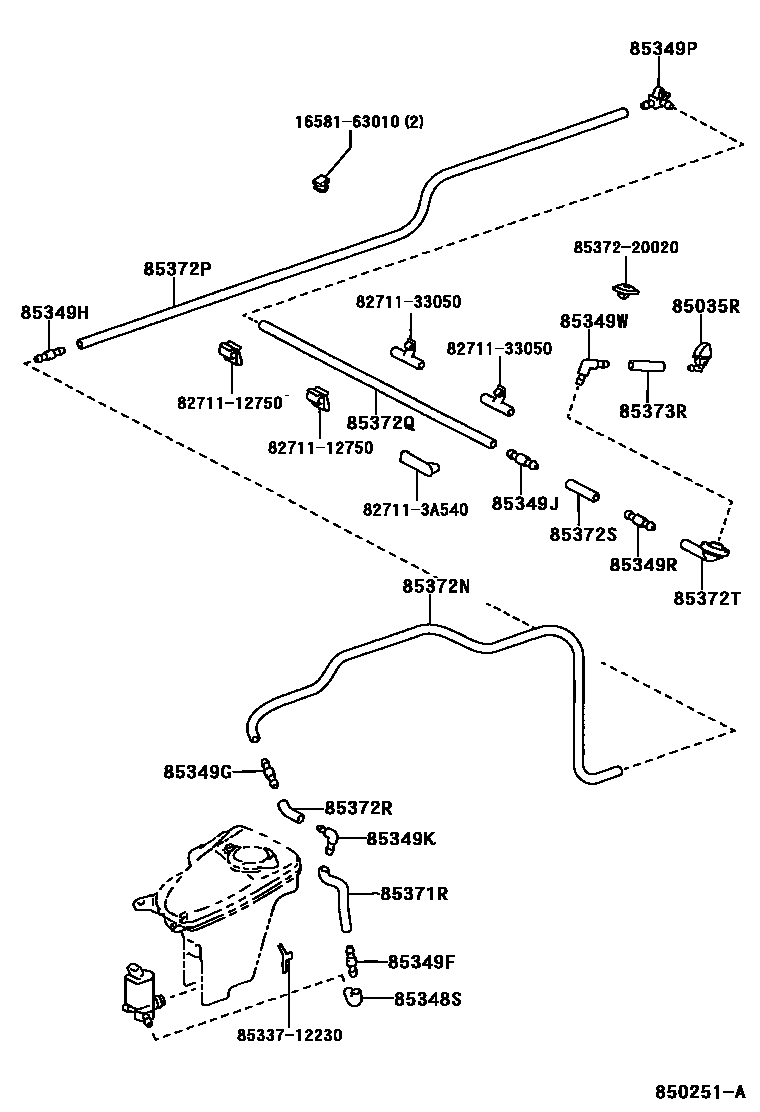

REAR WASHER
85348SJOINT, REAR WASHER ELBOW, NO.1
W(HEADLAMP CLEANER)
85349FJOINT, REAR WASHER HOSE, NO.1
W(HEADLAMP CLEANER)
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349JJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
W(HEADLAMP CLEANER)
85349PJOINT, REAR WASHER ELBOW, NO.3
85349RJOINT, REAR WASHER HOSE, NO.5
85349WJOINT, REAR WASHER ELBOW, NO.4
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=170
L=1450(*H,L=55),W(HEADLAMP CLEANER)
L=1450(*H,L=55)
L=1800(*H,L=130)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=1440)
main90446-07001iZZE112..UKP..LHD;ZZE111..JPP..RHD..LB;CDE110,ZZE112..JPP..LB;WZE110,ZZE111..LHD..LB199704-200111
L=1800(*H,L=1435)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=340
main90099-33589iZZE112..UKP..LHD;ZZE111..JPP..RHD..LB;CDE110,ZZE112..JPP..LB;WZE110,ZZE111..LHD..LB199704-200111
L=2200
L=3300(*H,L=2950)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=70)
L=1800(*H,L=950)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450(*H,L=70)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1000(*H,L=30)
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=120
L=1000(*H,L=140)
1658163010CLAMP, HOSE(FOR WATER HOSE)
main16581-63010
8271112750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12750
8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33050
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8533712230CASE, LEVEL WARNING SWITCH
main85337-12230
8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85372-20020
24 parts on this diagram · 4 diagrams in section
