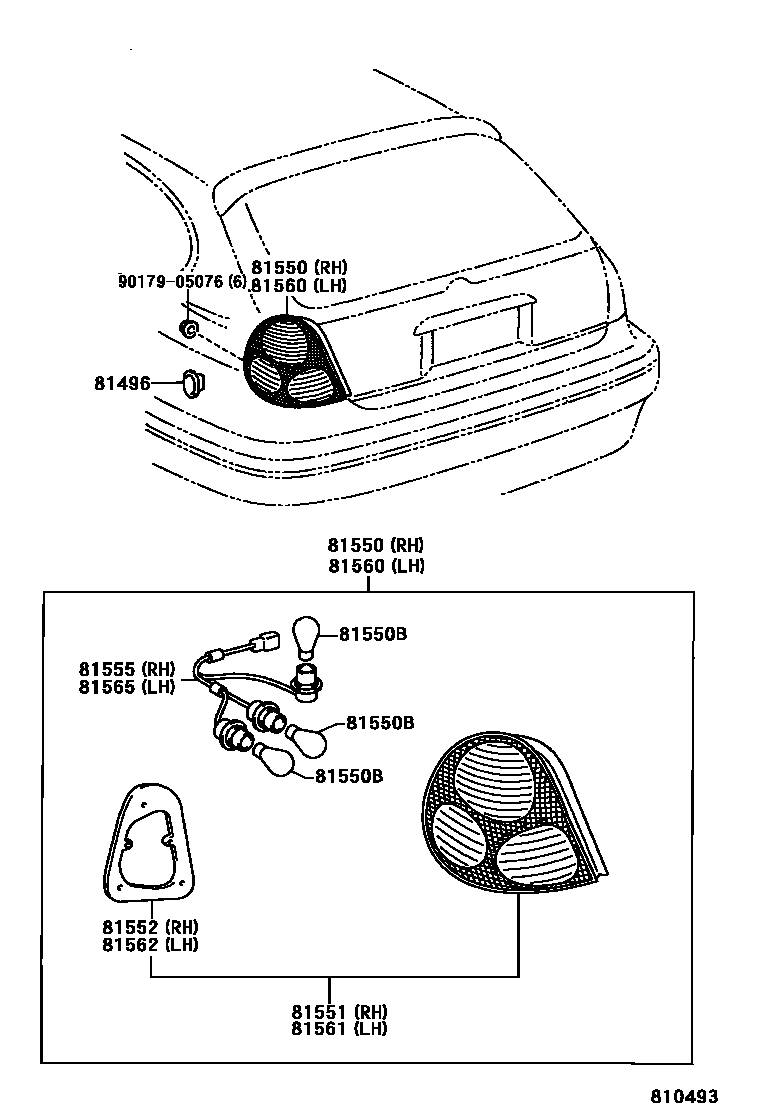

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81496GUIDE, REAR COMBINATION LAMP

main81496-12010×2iAE111,CE110,EE111..JPP199704-199910

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02080iAE111,EE111..UKP..RHD199809-199911

main81550-02090iAE111,EE111..UKP..LHD199809-199911

main81550-02100iWZE110,ZZE11#..UKP..RHD199911-200111

main81550-02110iWZE110,ZZE11#..UKP..LHD199911-200111

main81550-1E030iCDE110,WZE110,ZZE11#..RHD..HB199910-200107

main81550-1E060iAE111,CE110,EE111..JPP..RHD..LB199704-199910

main81550-1E070iAE111,CE110,EE111..JPP..LHD..LB199704-199910

main81550-1E130iAE111,CE110,EE111..LHD..HB199704-199910

main81550-1E160iCDE110,ZZE11#..JPP..RHD..LB199910-200107

main81550-1E170iCDE110,ZZE11#..JPP..LHD..LB199910-200109

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81035×4iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

12V 21W

main90080-81075×2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

12V 21/5W

main99132-11210×5iAE111,CE110,EE111..HB; AE111,CE110,EE111..JPP..LB199704-199910

12V 21W

main99132-21210×2iAE111,CE110,EE111..JPP199704-199910

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-02080iAE111,EE111..UKP..RHD199809-199911

main81551-02090iAE111,EE111..UKP..LHD199809-199911

main81551-02100iWZE110,ZZE11#..UKP..RHD199911-200111

main81551-02110iWZE110,ZZE11#..UKP..LHD199911-200111

main81551-1E030iAE111,CE110,EE111..RHD..HB199704-199910

main81551-1E060iAE111,CE110,EE111..JPP..RHD..LB199704-199910

main81551-1E070iAE111,CE110,EE111..JPP..LHD..LB199704-199910

main81551-1E130iAE111,CE110,EE111..LHD..HB199704-199910

main81551-1E160iCDE110,ZZE11#..JPP..RHD..LB199910-200107

main81551-1E170iCDE110,ZZE11#..JPP..LHD..LB199910-200109

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-1E060iAE111,CE110,EE111..JPP..LB199704-199910

main81552-1E130iAE111,CE110,EE111..HB199704-199910

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-02080iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main81555-1E030iCDE110,WZE110,ZZE11#..RHD..HB199910-200107

main81555-1E060iCDE110,ZZE11#..JPP..RHD..LB199910-200107

main81555-1E070iCDE110,ZZE11#..JPP..LHD..LB199910-200109

main81555-1E130iCDE110,WZE110,ZZE11#..LHD..HB199910-200107

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02080iAE111,EE111..UKP..RHD199809-199911

main81560-02090iAE111,EE111..UKP..LHD199809-199911

main81560-02100iWZE110,ZZE11#..UKP..RHD199911-200111

main81560-02110iWZE110,ZZE11#..UKP..LHD199911-200111

main81560-1A880iAE111,CE110,EE111..RHD..HB199704-199910

main81560-1E020iAE111,CE110,EE111..JPP..LHD..LB199704-199910

main81560-1E030iAE111,CE110,EE111..JPP..RHD..LB199704-199910

main81560-1E090iAE111,CE110,EE111..LHD..HB199704-199910

main81560-1E120iCDE110,ZZE11#..JPP..LHD..LB199910-200109

main81560-1E130iCDE110,ZZE11#..JPP..RHD..LB199910-200107

81561LENS, REAR COMBINATION LAMP, LH

main81561-02080iAE111,EE111..UKP..RHD199809-199911

main81561-02090iAE111,EE111..UKP..LHD199809-199911

main81561-02100iWZE110,ZZE11#..UKP..RHD199911-200111

main81561-02110iWZE110,ZZE11#..UKP..LHD199911-200111

main81561-1A880iCDE110,WZE110,ZZE11#..RHD..HB199910-200107

main81561-1E020iAE111,CE110,EE111..JPP..LHD..LB199704-199910

main81561-1E030iAE111,CE110,EE111..JPP..RHD..LB199704-199910

main81561-1E090iCDE110,WZE110,ZZE11#..LHD..HB199910-200107

main81561-1E120iCDE110,ZZE11#..JPP..LHD..LB199910-200109

main81561-1E130iCDE110,ZZE11#..JPP..RHD..LB199910-200107

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-1E130iCDE110,WZE110,ZZE11#..HB199910-200107

main81562-1E020iAE111,CE110,EE111..JPP..LB199704-199910

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-02080iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main81555-1E030iCDE110,WZE110,ZZE11#..LHD..HB199910-200107

main81555-1E060iCDE110,ZZE11#..JPP..LHD..LB199910-200109

main81555-1E070iCDE110,ZZE11#..JPP..RHD..LB199910-200107

main81555-1E130iAE111,CE110,EE111..RHD..HB199704-199910

9017905076

main90179-05076

11 parts on this diagram · 3 diagrams in section
