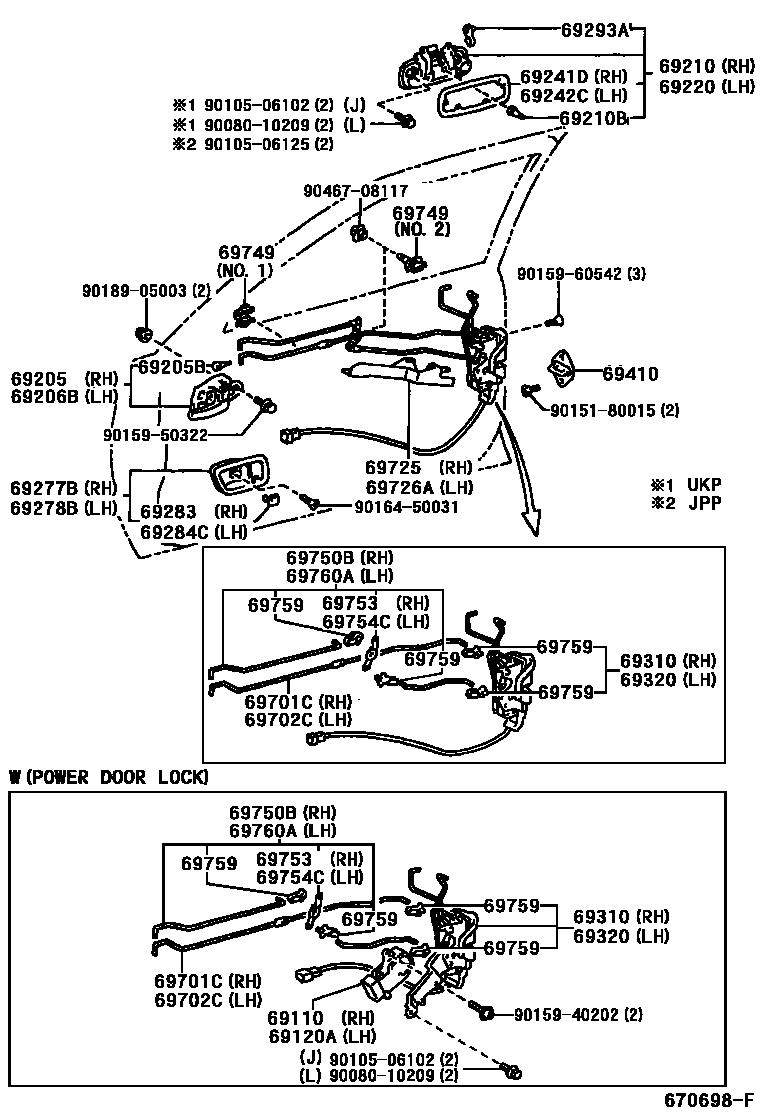

FRONT DOOR LOCK & HANDLE

0001 1 0002 1W(DOUBLE LOCK) 0003 1 0004 1W(DOUBLE LOCK)

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-12010iZZE112..RHD..HB..4FC;CDE110,WZE110..RHD..HB200001-200107

main69110-12010iZZE11#..RHD..HB..5F199704-200107

W(POWER DOOR LOCK)

main69110-12020iCDE110,WZE110,ZZE11#..LHD..HB..(G6,SOL,TERRA)199704-200107

main69110-12030iZZE11#..UKP..RHD..TERRA;CDE110,WZE110..RHD..LB..TERRA199911-200111

main69110-12030iAE111,EE111..UKP..RHD;ZZE11#..JPP..RHD..LB..TERRA199704-200107

W(POWER DOOR LOCK)

main69110-12040iAE111,CE110,EE111..JPP..LHD..LB199704-200111

main69110-12050iCDE110,WZE110,ZZE11#..RHD..LB..TERRA199910-200111

W(DOUBLE-LOCK)

main69110-12060iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

W(DOUBLE-LOCK)

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-12010iAE111,CE110,EE111..RHD..HB199704-200107

W(POWER DOOR LOCK)

main69120-12010iZZE112..RHD..HB..4FC;CDE110,WZE110..RHD..HB200001-200107

main69120-12020iAE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA)199704-200107

main69120-12030iAE111,EE111..UKP..RHD;ZZE11#..JPP..RHD..LB..TERRA199704-200107

W(POWER DOOR LOCK)

main69120-12030iZZE11#..UKP..RHD..TERRA;CDE110,WZE110..RHD..LB..TERRA199911-200111

main69120-12040iCDE110,ZZE11#..LHD..LB;AE111,EE111,WZE110..UKP..LHD199704-200111

main69120-12050iCDE110,WZE110,ZZE11#..RHD..SOL199910-200111

W(DOUBLE-LOCK)

main69120-12060iZZE11#..RHD..G6199910-200107

W(DOUBLE-LOCK)

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02040-A0iAE111,EE111..UKP199810-199911

IVORY,TRIM0#,(L)

main69205-02040-B0iAE111,EE111..UKP199810-199911

SHADOW GRAY,TRIM12,(L)

main69205-02040-B1iAE111,EE111..UKP199810-199911

MD.CHARCOAL,TRIM10,(L)

main69205-12160-A0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69205-12160

main69205-12160-B0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69205-12160

main69205-12160-B0iEE111..LB..G6199704-199910

SHADOW GRAY,TRIM1#

sub69205-12160

main69205-12160-B1iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub69205-12160

main69205-12160-B1iAE111,CE110,EE111..LB..(LUNA,TERRA)199704-199808

MD.CHARCOAL,TRIM1#

sub69205-12160

main69205-12180-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

sub69205-12180

main69205-12180-B0iCDE110,WZE110,ZZE11#..LB..(4FC,5F)199910-200111

SHADOW GRAY,TRIM16

sub69205-12180

main69205-12180-B1iCDE110,WZE110,ZZE11#..LB..(4FC,5F)199910-200111

MD.CHARCOAL,TRIM11

sub69205-12180

main69205-22080-B2iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199910-200107

SHADOW GRAY,TRIM1#

sub69205-22080

main69205-22080-B2iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199910-200107

SHADOW GRAY,TRIM16

sub69205-22080

main69205-22080-B3iZZE111..STD199910-200107

MD.CHARCOAL,TRIM11

sub69205-22080

main69205-22080-B3iZZE111..STD199910-200107

MD.CHARCOAL,TRIM1#

sub69205-22080

main69205-30120-A1iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69205-30120

main69205-30120-B1iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69205-30120

main69205-30120-B1iAE111,EE111..HB..G6199704-199910

SHADOW GRAY,TRIM1#

sub69205-30120

main69205-30120-B4iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

MD.CHARCOAL,TRIM1#

sub69205-30120

main69205-30120-B4iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub69205-30120

main69207-12030-A0iAE111,EE111..UKP199809-199810

IVORY,TRIM0#

sub69207-12030

main69207-12030-A0iAE111,EE111..UKP199810-199911

IVORY,TRIM0#,(J)

sub69207-12030

main69207-12030-B0iAE111,EE111..UKP199809-199810

SHADOW GRAY,TRIM12

sub69207-12030

main69207-12030-B0iAE111,EE111..UKP199810-199911

SHADOW GRAY,TRIM12,(J)

sub69207-12030

main69207-12030-B1iAE111,EE111..UKP199809-199810

MD.CHARCOAL,TRIM10

sub69207-12030

main69207-12030-B1iAE111,EE111..UKP199810-199911

MD.CHARCOAL,TRIM10,(J)

sub69207-12030

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iCDE110,WZE110,ZZE11#..HB199704-200107

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02040-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#,(L)

main69206-02040-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM12,(L)

main69206-02040-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10,(L)

main69206-12160-A0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69206-12160

main69206-12160-B0iEE111..LB..G6199704-199910

SHADOW GRAY,TRIM1#

sub69206-12160

main69206-12160-B0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69206-12160

main69206-12160-B1iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub69206-12160

main69206-12160-B1iAE111,CE110,EE111..LB..(LUNA,TERRA)199704-199808

MD.CHARCOAL,TRIM1#

sub69206-12160

main69206-12180-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

main69206-12180-B0iCDE110,WZE110,ZZE11#..LB..(4FC,5F)199910-200111

SHADOW GRAY,TRIM16

main69206-12180-B1iCDE110,WZE110,ZZE11#..LB..(4FC,5F)199910-200111

MD.CHARCOAL,TRIM11

main69206-22080-B2iZZE11#..G6199910-200107

SHADOW GRAY,TRIM16

sub69206-22080

sub69206-30120

main69206-22080-B2iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199910-200107

SHADOW GRAY,TRIM1#

sub69206-22080

sub69206-30120

main69206-22080-B3iZZE111..STD199910-200107

MD.CHARCOAL,TRIM1#

sub69206-22080

sub69206-30120

main69206-22080-B3iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199910-200107

MD.CHARCOAL,TRIM11

sub69206-22080

sub69206-30120

main69206-30120-A1iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69206-30120

main69206-30120-B1iAE111,EE111..HB..G6199704-199910

SHADOW GRAY,TRIM1#

sub69206-30120

main69206-30120-B1iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69206-30120

main69206-30120-B4iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub69206-30120

main69206-30120-B4iAE111,CE110,EE111..HB..(LUNA,STD,TERRA)199704-199910

MD.CHARCOAL,TRIM1#

sub69206-30120

main69208-12030-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#,(J)

sub69208-12030

main69208-12030-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM12,(J)

sub69208-12030

main69208-12030-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10,(J)

sub69208-12030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02050iAE111,EE111,WZE110,ZZE11#..UKP..TERRA199809-200111

main69210-02060-A0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SUPER WHITE 2,040

main69210-02060-B0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SILVER ME,199

main69210-02060-C0iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

BLACK ME,205

main69210-02060-D0iAE111,EE111..UKP199809-199911

CORAL REEF M.M.,3L6

main69210-02060-D2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SU.RED 3,3J6

main69210-02060-D4iWZE110,ZZE11#..UKP199911-200111

RED M.M.,3N8

main69210-02060-F0iWZE110,ZZE11#..UKP199911-200104

GOLD ME.,581

main69210-02060-G0iAE111,EE111..UKP199809-199911

GREEN M.M.,6P5

main69210-02060-G1iAE111,EE111,WZE110,ZZE11#..UKP199809-200007

DK.GREEN M.M.,6P3

main69210-02060-G2iWZE110,ZZE11#..UKP199911-200111

GREEN MC.,6R8

main69210-02060-J0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

BLUE M.M.,8L5

main69210-02060-J1iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

DK.BLUE,8M4

main69210-02060-J2iAE111,EE111..UKP199809-199909

BLUE M.M.,8M9

main69210-02060-J3iWZE110,ZZE11#..UKP199911-200111

DK.BLUE M.M.,8L3

main69210-02060-K0iAE111,EE111..UKP199809-199911

VIOLET M.M.,944

main69210-12280iZZE112..RHD..HB..4FC;CDE110,WZE110..JPP..TERRA200001-200109

main69210-12280iZZE112..JPP..LB..4FC..TERRA;ZZE112..LHD..HB..4FC..TERRA;ZZE11#..JPP..5F..(STD,TERRA)199704-200109

BLACK

main69210-12290-A0iAE111,CE110,EE111..LUNA199704-200109

SUPER WHITE 2,040

sub69210-12290

main69210-12290-B3iAE111,CE110,EE111..LUNA199704-200109

SILVER ME,199

sub69210-12290

main69210-12290-C0iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199704-200109

BLACK ME,205

sub69210-12290

main69210-12290-C0iAE111..G6199809-199812

G6R SPEC,BLACK ME,205

sub69210-12290

main69210-12290-D1iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-199910

CORAL REEF M.M.,3L6

sub69210-12290

main69210-12290-D2iAE111,CE110,EE111..G6,LUNA199704-199808

RED,3M7

sub69210-12290

main69210-12290-D4iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199808-200109

SUPER RED II,3E5

sub69210-12290

main69210-12290-D4iAE111..G6199809-199812

G6R SPEC,SUPER RED 2,3E5

sub69210-12290

main69210-12290-D6iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199910-200109

RED M.M.,3N8

sub69210-12290

main69210-12290-E0iEE111..LHD..LUNA;AE111,CE110..LUNA;EE111..RHD..(G6,LUNA)199704-199808

APRICOT M.M.,4P0

sub69210-12290

main69210-12290-F3iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199910-200109

GOLD ME.,581

sub69210-12290

main69210-12290-G1iAE111,CE110,EE111..LUNA199704-199910

GREEN M.M.,6P5

sub69210-12290

main69210-12290-G8iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199910-200109

GREEN MC.,6R8

sub69210-12290

main69210-12290-J2iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-200109

BLUE M.M.,8L5

sub69210-12290

main69210-12290-J3iAE111,CE110,EE111..LUNA199704-200109

DK.BLUE,8M4

sub69210-12290

main69210-12290-J7iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199808-199910

BLUE M.M.,8M9

sub69210-12290

main69210-12290-K0iAE111,CE110,EE111..G6,LUNA199704-199808

LAVENDER ME.,932

sub69210-12290

main69210-12290-K1iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199808-199910

VIOLET M.M.,944

sub69210-12290

main69210-12290-R0iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199906-200109

DK.BLUE M.M.,8L3

sub69210-12290

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90080-54017iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main90541-04018iCDE110,ZZE11#..JPP..LB199704-200109

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-02050iAE111,EE111,WZE110,ZZE11#..UKP..TERRA199809-200111

main69220-02060-A0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SUPER WHITE 2,040

sub69220-12290

main69220-02060-B0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SILVER ME,199

sub69220-12290

main69220-02060-C0iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

BLACK ME,205

sub69220-12290

main69220-02060-D0iAE111,EE111..UKP199809-199911

CORAL REEF M.M.,3L6

sub69220-12290

main69220-02060-D2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SU.RED 3,3J6

sub69220-12290

main69220-02060-D4iWZE110,ZZE11#..UKP199911-200111

RED M.M.,3N8

sub69220-12290

main69220-02060-F0iWZE110,ZZE11#..UKP199911-200104

GOLD ME.,581

sub69220-12290

main69220-02060-G0iAE111,EE111..UKP199809-199911

GREEN M.M.,6P5

sub69220-12290

main69220-02060-G1iAE111,EE111,WZE110,ZZE11#..UKP199809-200007

DK.GREEN M.M.,6P3

sub69220-12290

main69220-02060-G2iWZE110,ZZE11#..UKP199911-200111

GREEN MC.,6R8

sub69220-12290

main69220-02060-J0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

BLUE M.M.,8L5

sub69220-12290

main69220-02060-J1iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

DK.BLUE,8M4

sub69220-12290

main69220-02060-J2iAE111,EE111..UKP199809-199909

BLUE M.M.,8M9

sub69220-12290

main69220-02060-J3iWZE110,ZZE11#..UKP199911-200111

DK.BLUE M.M.,8L3

sub69220-12290

main69220-02060-K0iAE111,EE111..UKP199809-199911

VIOLET M.M.,944

sub69220-12290

main69220-12280iZZE112..JPP..LB..4FC..TERRA;ZZE112..LHD..HB..4FC..TERRA;ZZE11#..JPP..5F..(STD,TERRA)199704-200109

BLACK

main69220-12280iZZE112..RHD..HB..4FC;CDE110,WZE110..JPP..TERRA200001-200109

main69220-12290-A0iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-200109

SUPER WHITE 2,040

sub69220-12290

main69220-12290-B3iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199704-200109

SILVER ME,199

sub69220-12290

main69220-12290-C0iAE111..G6199809-199812

G6R SPEC,BLACK ME,205

sub69220-12290

main69220-12290-C0iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-200109

BLACK ME,205

sub69220-12290

main69220-12290-D1iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-199910

CORAL REEF M.M.,3L6

sub69220-12290

main69220-12290-D2iAE111,CE110,EE111..G6,LUNA199704-199808

RED,3M7

sub69220-12290

main69220-12290-D4iAE111..G6199809-199812

G6R SPEC,SUPER RED 2,3E5

sub69220-12290

main69220-12290-D4iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199808-200109

SUPER RED II,3E5

sub69220-12290

main69220-12290-D6iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199910-200109

RED M.M.,3N8

sub69220-12290

main69220-12290-E0iEE111..LHD..LUNA;AE111,CE110..LUNA;EE111..RHD..(G6,LUNA)199704-199808

APRICOT M.M.,4P0

sub69220-12290

main69220-12290-F3iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199910-200109

GOLD ME.,581

sub69220-12290

main69220-12290-G1iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-199910

GREEN M.M.,6P5

sub69220-12290

main69220-12290-G8iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199910-200109

GREEN MC.,6R8

sub69220-12290

main69220-12290-J2iAE111,CE110,EE111..G6,LUNA199704-200109

BLUE M.M.,8L5

sub69220-12290

main69220-12290-J3iAE111,CE110,EE111..LUNA199704-200109

DK.BLUE,8M4

sub69220-12290

main69220-12290-J7iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199808-199910

BLUE M.M.,8M9

sub69220-12290

main69220-12290-K0iAE111,CE110,EE111..LUNA199704-199808

LAVENDER ME.,932

sub69220-12290

main69220-12290-K1iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199808-199910

VIOLET M.M.,944

sub69220-12290

main69220-12290-R0iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199906-200109

DK.BLUE M.M.,8L3

sub69220-12290

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69241-12100iCDE110,WZE110,ZZE11#..JPP199704-200109

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69242-12050iAE111,CE110,EE111..JPP199704-200109

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-B1iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199910-200107

SHADOW GRAY,TRIM16

sub69277-22090

main69277-22090-B1iZZE11#..G6199910-200107

SHADOW GRAY,TRIM1#

sub69277-22090

main69277-22090-B3iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199910-200107

MD.CHARCOAL,TRIM11

sub69277-22090

main69277-22090-B3iZZE111..STD199910-200107

MD.CHARCOAL,TRIM1#

sub69277-22090

main69277-30150-A0iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69277-30150

main69277-30150-B1iAE111,EE111..HB..G6199704-199910

SHADOW GRAY,TRIM1#

sub69277-30150

main69277-30150-B1iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69277-30150

main69277-30150-B3iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub69277-30150

main69277-30150-B3iEE111..STD199704-199910

MD.CHARCOAL,TRIM1#

sub69277-30150

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-B1iZZE11#..G6199910-200107

SHADOW GRAY,TRIM1#

sub69278-22050

main69278-22050-B1iZZE11#..G6199910-200107

SHADOW GRAY,TRIM16

sub69278-22050

main69278-22050-B3iZZE111..STD199910-200107

MD.CHARCOAL,TRIM1#

sub69278-22050

main69278-22050-B3iZZE111..STD199910-200107

MD.CHARCOAL,TRIM11

sub69278-22050

main69278-30080-A0iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69278-30080

main69278-30080-B1iAE111,EE111..HB..G6199704-199910

SHADOW GRAY,TRIM1#

sub69278-30080

main69278-30080-B1iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69278-30080

main69278-30080-B3iAE111,CE110,EE111..HB..(LUNA,STD,TERRA)199704-199910

MD.CHARCOAL,TRIM1#

sub69278-30080

main69278-30080-B3iEE111..STD199808-199910

MD.CHARCOAL,TRIM10

sub69278-30080

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69283-30040

main69283-30040-B1iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199910-200107

SHADOW GRAY,TRIM16

sub69283-30040

main69283-30040-B1iZZE11#..G6199704-200107

SHADOW GRAY,TRIM1#

sub69283-30040

main69283-30040-B1iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69283-30040

main69283-30040-B4iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA)199704-200107

MD.CHARCOAL,TRIM1#

sub69283-30040

main69283-30040-B4iZZE111..STD199910-200107

MD.CHARCOAL,TRIM11

sub69283-30040

main69283-30040-B4iEE111..STD199808-199910

MD.CHARCOAL,TRIM10

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub69284-30040

main69284-30040-B1iAE111,EE111..HB..G6199704-200107

SHADOW GRAY,TRIM1#

sub69284-30040

main69284-30040-B1iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69284-30040

main69284-30040-B1iZZE11#..G6199910-200107

SHADOW GRAY,TRIM16

sub69284-30040

main69284-30040-B4iAE111,CE110,EE111..HB..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub69284-30040

main69284-30040-B4iZZE111..STD199704-200107

MD.CHARCOAL,TRIM1#

sub69284-30040

main69284-30040-B4iZZE111..STD199910-200107

MD.CHARCOAL,TRIM11

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iCDE110,ZZE11#..JPP..LB199704-200111

RH

main69293-12040iCDE110,ZZE11#..JPP..LB199704-200111

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-02070iWZE110,ZZE11#..UKP..TERRA199911-200111

main69310-12550iAE111,EE111..UKP..TERRA;CDE110,ZZE11#..JPP..LB..TERRA199704-200109

main69310-12560iAE111,CE110,EE111..HB..(STD,TERRA)199704-199910

main69310-12561iCDE110,WZE110,ZZE11#..HB..(STD,TERRA)199910-200107

main69310-12600iCDE110,ZZE11#..RHD..LB..TERRA;AE111,EE111,WZE110..UKP..RHD..(LUNA,TERRA)199704-200111

W(POWER DOOR LOCK)

main69310-12610iAE111,CE110,EE111..JPP..LHD..LB199704-200111

W(POWER DOOR LOCK)

main69310-12620iAE111,CE110,EE111..RHD..HB199704-199910

W(POWER DOOR LOCK)

main69310-12621iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

W(POWER DOOR LOCK)

main69310-12630iAE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA)199704-199910

W(POWER DOOR LOCK)

main69310-12631iCDE110,WZE110,ZZE11#..LHD..HB..TERRA199910-200107

W(POWER DOOR LOCK)

main69310-12640iCDE110,WZE110,ZZE11#..RHD..LB..TERRA199910-200111

W(DOUBLE-LOCK)

main69310-12690iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

W(DOUBLE-LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69320-02070iWZE110,ZZE11#..UKP..TERRA199911-200111

main69320-12560iAE111,EE111..UKP..TERRA;CDE110,ZZE11#..JPP..LB..TERRA199704-200109

main69320-12570iAE111,CE110,EE111..HB..(STD,TERRA)199704-199910

main69320-12571iCDE110,WZE110,ZZE11#..HB..(STD,TERRA)199910-200107

main69320-12590iCDE110,ZZE11#..RHD..LB..TERRA;AE111,EE111,WZE110..UKP..RHD..(LUNA,TERRA)199704-200111

W(POWER DOOR LOCK)

main69320-12610iCDE110..LHD..LB..SOL200008-200109

main69320-12610iZZE11#..LHD..LB;CDE110..LHD..LB..TERRA;AE111,EE111,WZE110..UKP..LHD199704-200111

W(POWER DOOR LOCK)

main69320-12620iAE111,CE110,EE111..RHD..HB199704-199910

W(POWER DOOR LOCK)

main69320-12621iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

W(POWER DOOR LOCK)

main69320-12630iAE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA)199704-199910

W(POWER DOOR LOCK)

main69320-12631iCDE110,WZE110,ZZE11#..LHD..HB..(G6,SOL)199910-200107

W(POWER DOOR LOCK)

main69320-12640iCDE110,WZE110,ZZE11#..RHD..LB..TERRA199910-200111

W(DOUBLE-LOCK)

main69320-12680iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

W(DOUBLE-LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE111,CE110,EE111..JPP199704-200111

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-12010iCDE110,WZE110,ZZE11#..HB199704-200107

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-12010iCDE110,WZE110,ZZE11#..HB199704-200107

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-12020iAE111,CE110,EE111..HB199704-200107

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-12020iZZE11#..LHD..G6;CDE110,WZE110,ZZE11#..HB..(4FC,5F)199704-200107

69749CLAMP, FRONT DOOR LOCK LINK

main69749-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69749-12070iAE111,CE110,EE111..JPP..LB199704-200109

main69749-20040iCDE110,WZE110,ZZE11#..HB199704-200107

NO.1

main69749-32030iAE111,CE110,EE111..HB199704-200107

NO.2

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-12080iZZE11#..LHD..G6;CDE110,WZE110,ZZE11#..HB..(4FC,5F)199704-200107

main69750-12090iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

W(DOUBLE-LOCK)

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-12110iCDE110,WZE110,ZZE11#..HB199704-200107

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69754-12040iCDE110,WZE110,ZZE11#..HB199704-200107

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAE111,CE110,EE111..JPP..LB199704-200111

YELLOW

main69759-20050iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

BROWN

main69759-24010iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

NATURAL

main69759-24020iAE111,CE110,EE111..JPP..LB199704-200111

BLUE

main69759-24050iCDE110,WZE110,ZZE11#..HB199704-200107

GREEN

main69759-24060iCDE110,WZE110,ZZE11#..HB199704-200107

GRAY

main69759-24080iCDE110,WZE110,ZZE11#..RHD..HB199910-200107

W(DOUBLE-LOCK),YELLOW

main69759-24080iCDE110,WZE110,ZZE11#..RHD..HB199704-200107

YELLOW

main69759-33030iAE111,CE110,EE111..HB199704-200107

ORANGE

main69759-33030iZZE11#..LHD..G6;CDE110,WZE110,ZZE11#..HB..(4FC,5F)199910-200107

W(DOUBLE-LOCK),ORANGE

main69759-50030iCDE110,ZZE11#..RHD..HB199910-200107

main69759-50030iWZE110..RHD..HB200001-200107

NATURAL

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-12080iAE111,CE110,EE111..HB199704-200107

main69760-12090iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

W(DOUBLE-LOCK)

9008010209

main90080-10209

9010506102

main90105-06102

9010506125

main90105-06125

9015180015

main90151-80015

9015940202

main90159-40202

9015950322

main90159-50322

9015960542

main90159-60542

9016450031

main90164-50031

9018905003

main90189-05003

9046708117

main90467-08117

38 parts on this diagram · 4 diagrams in section
