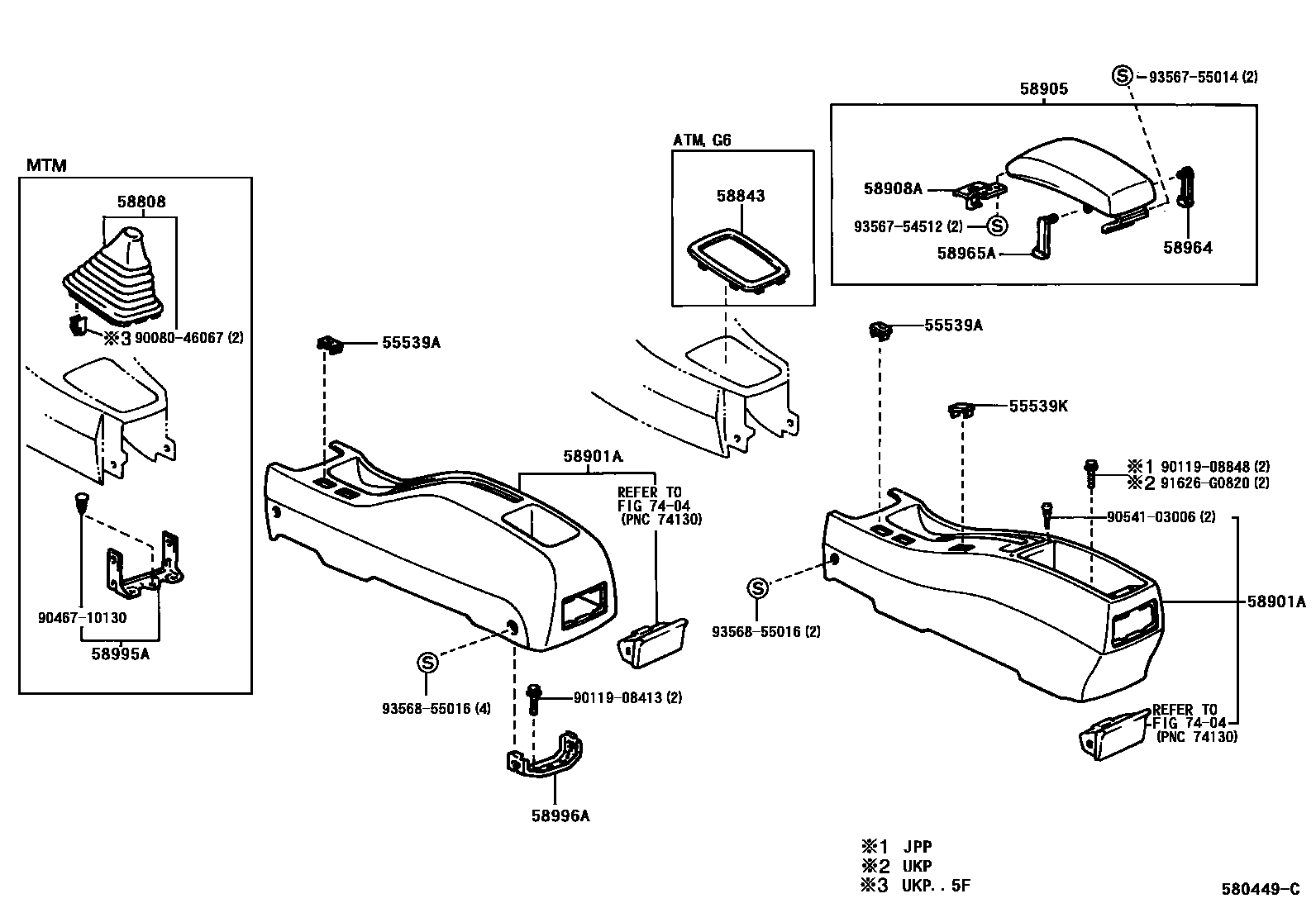

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-02010-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main55539-02010-B1iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

MD.CHARCOAL,TRIM11

main55539-02010-B2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SHADOW GRAY,TRIM16

main55539-20020-A0iAE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199805-199910

IVORY,TRIM0#

main55539-20020-B4iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11

main55539-20020-P0iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

55539KCOVER, SPARE SWITCH HOLE

main55539-05010-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main55539-05010-B0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SHADOW GRAY,TRIM16

main55539-05010-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM1#

main55539-12120-A0iAE111,CE110,EE111..LUNA,TERRA199704-199805

IVORY,TRIM0#

main55539-12120-B0iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

main55539-12120-B2iAE111,CE110,EE111..JPP..(LUNA,TERRA); EE111..STD199808-199910

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02030-B0iAE111,EE111..UKP..5F199809-199911

SHADOW GRAY,TRIM1#

main58808-02030-B1iAE111,EE111..UKP..5F199809-199911

DK.CHARCOAL,TRIM0#,1#

main58808-02040-C1iZZE112..6F..SOL199911-200111

BALCK,TRIM1#

main58808-12112-B1iAE111..LB..5F;AE111..HB..5F..TERRA;CE110,EE111..5F..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..5F..LUNA199704-199808

DK.CHARCOAL,TRIM1#

main58808-12112-P0iAE111,CE110,EE111..RHD..HB..5F..LUNA199704-199805

SHADOW GRAY,TRIM0#

main58808-12140-C0iEE111..G6199704-199804

BLACK,TRIM1#

main58808-12140-C1iEE111..G6199804-199808

BLACK,TRIM1#

main58808-12160-C0iAE111..G6199809-199812

G6R SPEC,BLACK,TRIM12

58843BEZEL, SHIFTING HOLE

main58843-12090-B0iAE111,EE111..ATM199704-199808

SHADOW GRAY,TRIM0#

main58843-12090-B3iAE111,EE111..JPP..ATM199808-199910

DK.CHARCOAL,TRIM0#,10

main58843-12100iZZE11#..6F199910-200111

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-02050-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main58901-02050-B0iWZE110,ZZE11#..UKP..(4FC,5F); ZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16

main58901-02050-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

MD.CHARCOAL,TRIM11

main58901-12220-A0iAE111,CE110,EE111..RHD..HB..5F..LUNA199704-199805

IVORY,TRIM0#

main58901-12220-B0iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

main58901-12220-B1iAE111,CE110,EE111..RHD..HB..5F..LUNA; CE110,EE111..STD199704-199805

MD.CHARCOAL,TRIM1#; W(HEADLAMP CLEANER),MD.CHARCOAL,TRIM1#

main58901-12230-B1iZZE111..STD199910-200107

MD.CHARCOAL,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02040-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main58905-02040-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM12

main58905-02040-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

MD.CHARCOAL,TRIM11

main58905-12160-A0iAE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199805-199910

IVORY,TRIM0#

main58905-12160-B0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

main58905-12160-B1iAE111,CE110,EE111..JPP..(LUNA,TERRA); EE111..STD199808-199910

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32040iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199805-199810

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-05010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58964-12040iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199805-199910

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-05010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58965-12040iCDE110,WZE110,ZZE11#..JPP199910-200109

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-01040iAE111,EE111,WZE110,ZZE11#..UKP..MTM199809-200111

main58995-12080iAE111,CE110,EE111..MTM199704-199805

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12090iZZE111..STD199910-200107

7404ASH RECEPTACLE

→ Go to FIG 74-04

9008046067

main90080-46067

9011908413

main90119-08413

9011908848

main90119-08848

9046710130

main90467-10130

9054103006

main90541-03006

91626G0820

main91626-G0820

9356754512

main93567-54512

9356755014

main93567-55014

9356855016

main93568-55016

21 parts on this diagram · 1 diagram in section
