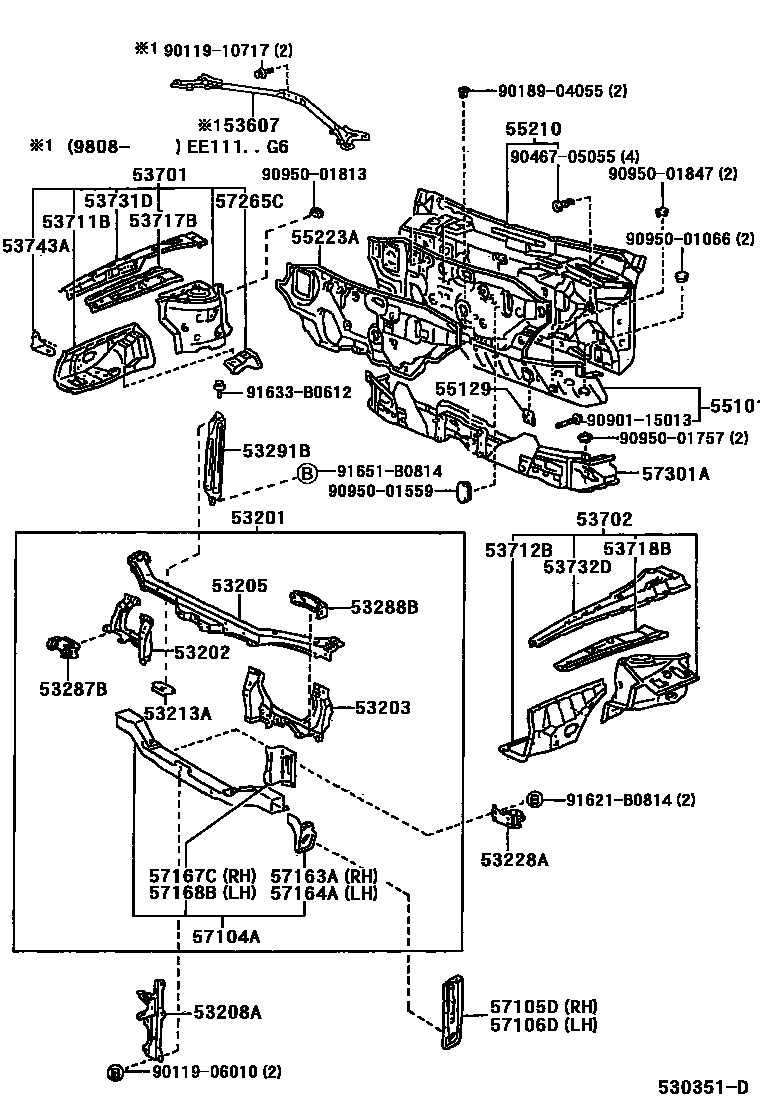

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02040iAE111,EE111..UKP199809-199911

main53201-02050iWZE110,ZZE11#..UKP199911-200111

main53201-1A120iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199910

main53201-1A170iWZE110,ZZE11#..JPP199910-200109

main53201-1A260iCDE110200008-200109

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53202-12380iCDE110,WZE110,ZZE11#..JPP199704-200109

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53203-12330iCDE110,WZE110,ZZE11#..JPP199704-200109

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02030iAE111,EE111..UKP199809-200111

main53205-12180iCDE110,WZE110,ZZE11#..JPP199704-200109

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53208-12440iCE110..STD;AE111,CE110,EE111..RHD..HB..5F..LUNA199704-200109

53213ASUPPORT, RADIATOR, UPPER RH

main53213-12110iAE111,CE110,EE111199704-200111

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53228-12120iCDE110200008-200109

main53228-12130iWZE110,ZZE11#..JPP199704-200109

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-12060iAE111,CE110,EE111199704-199911

main53287-12070iCDE110,WZE110,ZZE11#199910-200111

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-12060iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199911

main53288-12070iCDE110,WZE110,ZZE11#199910-200111

53291BPLATE, RADIATOR COVER

main53291-02010iAE111,EE111..UKP..5F199809-199911

main53291-12080iAE111..JPP..LB..5F;EE111..JPP..LB..5F..LUNA;AE111..HB..MTM..(G6,TERRA);AE111,EE111..LHD..HB..5F..LUNA;EE111..JPP..MTM..(G6,STD,TERRA)199704-199910

53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-12040iAE111,EE111..G6199808-200111

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02060iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53701-1A052iCDE110,WZE110,ZZE11#..JPP199704-200109

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53702-1A042iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12902iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200111

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12182iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

53717BGUSSET, FENDER APRON, RH

main53717-12051iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

53718BGUSSET, FENDER APRON, LH

main53718-12051iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12150iAE111,CE110,EE111199704-200111

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12130iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-12040iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

55101PANEL SUB-ASSY, DASH

main55101-02140iAE111,EE111,WZE110..UKP..RHD..5F199809-200111

main55101-02150iAE111,EE111..UKP..RHD..ATM199809-199911

main55101-02160iAE111..UKP..LHD..4FC199809-199911

main55101-02170iAE111,EE111,WZE110..UKP..LHD..5F199809-200111

main55101-02180iEE111..UKP..LHD..3FC199809-199911

main55101-02200iZZE11#..UKP..RHD..MTM199911-200111

main55101-02210iZZE112..UKP..RHD..4FC199911-200111

main55101-02220iZZE112..UKP..LHD..4FC199911-200111

main55101-02230iZZE11#..UKP..LHD..MTM199911-200111

main55101-1E410iAE111,EE111..JPP..RHD..ATM199704-199910

sub55101-1E510

sub90333-40001

main55101-1E440iAE111..JPP..LHD..4FC199704-199910

sub55101-1E720

main55101-1E450iZZE11#..JPP..RHD..MTM199910-200107

main55101-1E460iCE110,EE111..LHD..MTM199704-199910

main55101-1E480iCDE110,WZE110..JPP..RHD200001-200107

sub55101-1E510

sub90333-35002

main55101-1E570iAE111,CE110,EE111..RHD..MTM199704-199910

sub55101-1E510

main55101-1E640iZZE112..JPP..RHD..4FC199910-200107

sub55101-1E450

sub90333-35002

sub90333-40001

main55101-1E680iAE111..JPP..LHD..MTM199704-200109

sub55101-1E610

sub90333-35002

main55101-1E700iEE111..JPP..LHD..3FC199704-199910

sub55101-1E720

main55101-1E710iZZE11#..JPP..LHD..MTM199910-200109

main55101-1E720iZZE112..JPP..LHD..4FC199910-200109

main55101-1E880iCDE110..LHD200008-200109

COLD SPEC

55129COVER, DASH PANEL HOLE

main55129-12030iAE111,CE110,EE111199704-200111

55210INSULATOR ASSY, DASH PANEL

main55210-02030iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55210-02040iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55210-12460iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main55210-12470iAE111,CE110,EE111..LHD199704-200109

55223AINSULATOR, DASH PANEL, OUTER

main55223-02040iWZE110..RHD..LB;ZZE112..RHD..6F..SOL199911-200111

main55223-02050iWZE110..LHD..LB;ZZE112..LHD..6F..SOL199911-200111

main55223-12071iCE110..RHD..TERRA;CE110..RHD..LB..LUNA199704-199905

sub55223-12072

main55223-12072iZZE112..RHD..G6;CDE110,WZE110..JPP..RHD199905-200107

main55223-12081iCE110..LHD..(LUNA,TERRA)199704-199905

sub55223-12082

main55223-12082iZZE112..LHD..G6;CDE110,WZE110..JPP..LHD199905-200109

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub57104-12080

main57104-12080iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

main57104-12130iCDE110200008-200109

57105DPLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-02030iWZE110,ZZE11#..UKP199911-200111

main57105-02040iAE111,EE111..UKP199809-199911

main57105-12120iAE111,CE110,EE111199704-199910

sub57105-12121

main57105-12130iCDE110,WZE110,ZZE11#..JPP199910-200109

57106DPLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57106-12110iAE111,CE110,EE111199704-200109

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-12130iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-12080iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12100iAE111,CE110,EE111199704-200111

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12100iAE111,CE110,EE111199704-200111

57265CBRACKET, ENGINE MOUNTING, RH

main57265-12050iAE111,CE110,EE111199704-200111

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-02070iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main57301-02080iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main57301-12210iWZE110,ZZE11#..JPP..LHD199704-200109

main57301-12220iCDE110..RHD200008-200107

main57301-12230iCDE110..LHD200008-200109

main57301-13010iWZE110,ZZE11#..JPP..RHD199704-200107

9011906010

main90119-06010

9011910717

main90119-10717

9018904055

main90189-04055

9046705055

main90467-05055

9090115013

main90901-15013

9095001066

main90950-01066

9095001559

main90950-01559

9095001757

main90950-01757

9095001813

main90950-01813

9095001847

main90950-01847

91621B0814

main91621-B0814

91633B0612

main91633-B0612

91651B0814

main91651-B0814

46 parts on this diagram · 1 diagram in section
