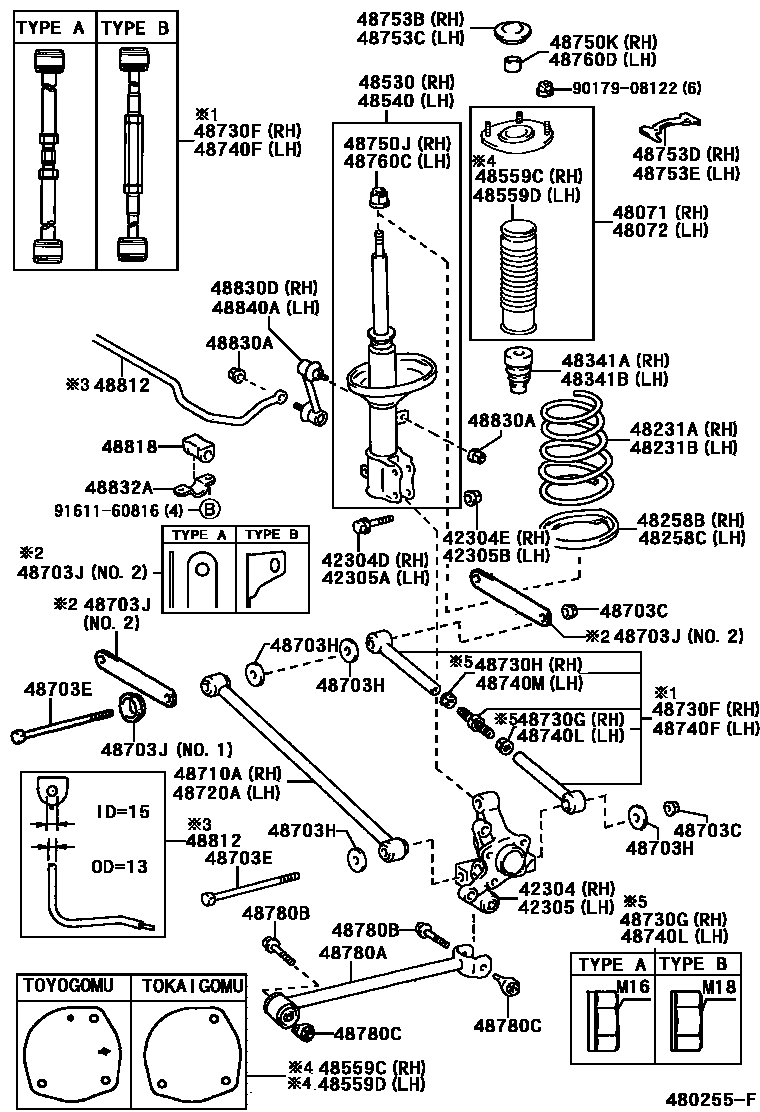

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-02040iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main42304-02050iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

W(ABS)

main42304-02060iWZE110,ZZE11#..UKP199911-200111

W(ABS & REAR DISC BRAKE)

main42304-12090iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

W(ABS)

main42304-12130iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main42304-12140iAE111,EE111..UKP;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;WZE110,ZZE11#..JPP..MTM199808-200109

W(REAR DISC BRAKE)

main42304-12140iZZE112..RHD..HB..4FC200008-200107

W(ABS & REAR DISC BRAKE)

main42304-12140iCDE110200008-200109

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-12102iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

sub90105-12236

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-12025iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-02040iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main42305-02050iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

W(ABS)

main42305-02060iWZE110,ZZE11#..UKP199911-200111

W(ABS & REAR DISC BRAKE)

main42305-12090iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

W(ABS)

main42305-12130iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main42305-12140iZZE112..RHD..HB..4FC200008-200107

W(ABS & REAR DISC BRAKE)

main42305-12140iAE111,EE111..UKP;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;WZE110,ZZE11#..JPP..MTM199808-200109

W(REAR DISC BRAKE)

main42305-12140iCDE110200008-200109

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-12102iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

sub90105-12236

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-12025iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH

main48071-12140iAE111,CE110,EE111199704-200107

main48071-12140iZZE11#..HB..5F;ZZE112..LHD..HB..4FC;ZZE112..JPP..LHD..LB..TERRA199901-200109

ROUGH ROAD PACKAGE

main48071-12180iAE111,EE111..G6199808-200111

48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH

main48072-12140iWZE110..HB;ZZE112..RHD..HB..4FC199704-200107

main48072-12140iZZE11#..HB..5F;ZZE112..LHD..HB..4FC;ZZE112..JPP..LHD..LB..TERRA199901-200109

ROUGH ROAD PACKAGE

main48072-12180iCDE110;ZZE112..LB;ZZE112..G6;ZZE111..LHD..LB;ZZE111..LHD..G6;ZZE111..RHD..(G6,SOL);ZZE111..RHD..LB..TERRA;AE111,EE111,WZE110..UKP199808-200111

48231ASPRING, COIL, REAR RH

main48231-02190iAE111,EE111..UKP199809-199810

sub48231-02191

main48231-02191iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199810-200111

main48231-02200iZZE112..6F..SOL199911-200111

main48231-1H050iAE111..HB..4FC..TERRA;EE111..LHD..HB..TERRA199711-200107

ROUGH ROAD PACKAGE

main48231-1H050iZZE11#..JPP..LB199910-200109

main48231-1H330iAE111,CE110,EE111..HB199704-199808

main48231-1H340iAE111,CE110,EE111..LB199704-199808

main48231-1H400iZZE112..JPP..LHD..LB..TERRA199711-200109

ROUGH ROAD PACKAGE

main48231-1H450iAE111,CE110,EE111..HB199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48231-1H460iAE111,CE110,EE111..JPP..LB199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48231-1H460iWZE110,ZZE11#..HB199910-200107

main48231-1H480iAE111..G6199809-199812

G6R SPEC

main48231-1H620iCDE110..HB200008-200107

main48231-1H640iCDE110..LB200008-200109

48231BSPRING, COIL, REAR LH

main48231-02190iAE111,EE111..UKP199809-199810

sub48231-02191

main48231-02191iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199810-200111

main48231-02200iZZE112..6F..SOL199911-200111

main48231-1H050iAE111..HB..4FC..TERRA;EE111..LHD..HB..TERRA199711-200107

ROUGH ROAD PACKAGE

main48231-1H050iZZE11#..JPP..LB199910-200109

main48231-1H330iAE111,CE110,EE111..HB199704-199808

main48231-1H340iAE111,CE110,EE111..LB199704-199808

main48231-1H400iAE111..JPP..LHD..LB..TERRA199711-200109

ROUGH ROAD PACKAGE

main48231-1H450iAE111,CE110,EE111..HB199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48231-1H460iAE111,CE110,EE111..JPP..LB199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48231-1H460iWZE110,ZZE11#..HB199910-200107

main48231-1H480iAE111..G6199809-199812

G6R SPEC

main48231-1H620iCDE110..HB200008-200107

main48231-1H640iCDE110..LB200008-200109

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48258-12040iAE111,CE110,EE111..JPP199704-200109

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48258-12040iCDE110,WZE110,ZZE11#..JPP199704-200109

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48341-12130iAE111,CE110,EE111..JPP199704-200109

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48341-12130iCDE110,WZE110,ZZE11#..JPP199704-200109

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09250iAE111,EE111..UKP199809-199901

sub48530-80025

main48530-09310iAE111,EE111..UKP199907-199911

sub48530-09320

main48530-09320iWZE110,ZZE11#..UKP199911-200111

main48530-19715iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

MARK 48530-12610,ROUGH ROAD PACKAGE

main48530-80004iAE111,CE110,EE111199704-199808

main48530-80016iWZE110,ZZE11#..HB..(4FC,5F)199710-200107

MARK 48530-1A310

main48530-80023iAE111..G6199809-199812

G6R SPEC

main48530-80024iAE111..G6;AE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

MARK 48530-1A321

sub48530-80016

main48530-80025iCDE110;ZZE112..G6;ZZE112..JPP..LB;ZZE111..LHD..G6;ZZE111..JPP..LB..TERRA;ZZE111..JPP..LHD..LB..SOL;ZZE111..JPP..RHD..(G6,SOL)199910-200109

MARK 48530-1A360

sub48530-80016

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09220iAE111,EE111..UKP199809-199901

sub48540-19345

main48540-09270iAE111,EE111..UKP199907-199911

sub48540-09280

main48540-09280iWZE110,ZZE11#..UKP199911-200111

main48540-19165iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

MARK 48540-12550,ROUGH ROAD PACKAGE

main48540-19215iAE111,CE110,EE111199704-199808

main48540-19295iEE111..G6,STD;AE111,CE110,EE111..HB..(LUNA,TERRA)199710-200107

MARK 48540-1A250

main48540-19325iAE111..G6199809-199812

G6R SPEC

main48540-19335iAE111,EE111..UKP199808-199910

MARK 48540-1A261

sub48540-19295

main48540-19345iCDE110;ZZE112..G6;ZZE112..JPP..LB;ZZE111..LHD..G6;ZZE111..JPP..LB..TERRA;ZZE111..JPP..LHD..LB..SOL;ZZE111..JPP..RHD..(G6,SOL)199910-200109

MARK 48540-1A300

sub48540-19295

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-12080iWZE110,ZZE11#..HB..(4FC,5F);ZZE112..JPP..LHD..LB..TERRA199704-200109

TOYO GOMU

main48559-12090iAE111,CE110,EE111..JPP199704-200111

TOKAIGOMU

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-12080iWZE110,ZZE11#..HB..(4FC,5F);ZZE112..JPP..LHD..LB..TERRA199704-200109

TOYO GOMU

main48559-12090iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

TOKAIGOMU

48703CNUT(FOR REAR SUSPENSION ARM)

main90178-14007iWZE110,ZZE11#..UKP199911-200111

NO.2

main90179-14025iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP199704-200109

main90179-14025iWZE110,ZZE11#..UKP199911-200111

NO.1

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-14099iAE111,CE110,EE111..JPP199704-200109

*14-1.5PX222-29

main90105-14099iWZE110,ZZE11#..UKP199911-200111

*14-1.5PX222-29,NO.1

main90105-14148iWZE110,ZZE11#..UKP199911-200111

*14-1.5PX222-29,NO.2

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14035iAE111,CE110,EE111..JPP199704-200111

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-12010iAE111,CE110,EE111..JPP199704-200111

NO.2

main48715-12010iCDE110,ZZE11#..JPP..LB199910-200109

TYPE A:REFER TO ILLUSTRATION,NO.2

main48715-12020iCDE110,ZZE11#..JPP..LB199910-200109

TYPE B:REFER TO ILLUSTRATION,NO.2

main48715-12020iWZE110,ZZE11#..UKP199911-200111

NO.3

main90209-15002iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

NO.1

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub48710-12200

main48710-12200iCDE110,WZE110,ZZE11#..JPP199704-200109

main48710-12220iAE111..G6199809-199812

G6R SPEC

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub48710-12200

main48710-12200iAE111,CE110,EE111..JPP199704-200109

main48710-12220iAE111..G6199809-199812

G6R SPEC

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-02050iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main48730-12110iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

TYPE A:REFER TO ILLUSTRATION

main48730-12120iAE111..G6199809-199812

G6R SPEC

main48730-12160iWZE110,ZZE11#..JPP199704-200109

main48730-12210iZZE112..6F..SOL199911-200109

main48730-12210iZZE112..RHD..6F..SOL;WZE110,ZZE11#..UKP..LHD200008-200111

GERMANY SPEC

main48730-13020iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

TYPE B:REFER TO ILLUSTRATION

sub48730-12170

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

TYPE A:REFER TO ILLUSTRATION

main90179-16022iWZE110,ZZE11#..UKP199911-200111

main90179-18016iZZE11#..JPP..MTM;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199704-200109

TYPE B:REFER TO ILLUSTRATION

main90179-18016iWZE110..HB;ZZE112..RHD..HB..4FC200001-200107

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iWZE110,ZZE11#..UKP199911-200111

main90179-16021iAE111,EE111..UKP;ZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

TYPE A:REFER TO ILLUSTRATION

main90179-18017iZZE11#..JPP..MTM;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199704-200109

TYPE B:REFER TO ILLUSTRATION

main90179-18017iWZE110..HB;ZZE112..RHD..HB..4FC200001-200107

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-02050iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main48730-12110iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

TYPE A:REFER TO ILLUSTRATION

main48730-12120iAE111..G6199809-199812

G6R SPEC

main48730-12160iAE111,CE110,EE111..JPP199704-200109

main48730-12210iZZE112..RHD..6F..SOL;WZE110,ZZE11#..UKP..LHD200008-200111

GERMANY SPEC

main48730-12210iCDE110199911-200109

main48730-13020iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

TYPE B:REFER TO ILLUSTRATION

sub48730-12170

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAE111,EE111..UKP;ZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

TYPE A:REFER TO ILLUSTRATION

main90179-16022iWZE110,ZZE11#..UKP199911-200111

main90179-18016iZZE11#..JPP..MTM;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199704-200109

TYPE B:REFER TO ILLUSTRATION

main90179-18016iWZE110..HB;ZZE112..RHD..HB..4FC200001-200107

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iWZE110,ZZE11#..UKP199911-200111

main90179-16021iAE111,EE111..UKP;ZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

TYPE A:REFER TO ILLUSTRATION

main90179-18017iZZE11#..JPP199704-200109

TYPE B:REFER TO ILLUSTRATION

main90179-18017iWZE110..HB;ZZE112..RHD..HB..4FC200001-200107

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iAE111,CE110,EE111..JPP199704-200111

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48753-12050iCDE110,WZE110,ZZE11#..JPP199704-200109

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48753-12050iCDE110,WZE110,ZZE11#..JPP199704-200109

48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH

main48753-12080iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH

main48753-12080iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48780AROD ASSY, STRUT, REAR

main48780-02030iZZE112..RHD..6F..SOL;WZE110,ZZE11#..UKP..(4FC,5F)200005-200111

sub48780-12090

main48780-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200005

(L)

sub48780-12090

main48780-12080iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main48780-12100iAE111..G6199808-200002

main48780-12100iCDE110;ZZE11#..G6;ZZE112..LHD..6F..SOL200002-200111

(J)

main48780-12110iAE111..G6199809-199812

G6R SPEC

48780BBOLT(FOR STRUT ROD)

main90119-12152iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48780CNUT(FOR STRUT ROD)

main90179-12091iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48812BAR, STABILIZER, REAR

main48812-02020iAE111..JPP..LB;EE111..HB..(STD,TERRA);EE111..JPP..LB..(G6,LUNA)199704-199910

(L),OD=14

main48812-02060iEE111..UKP..TERRA199809-199911

OD=14

main48812-02070iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

main48812-02070iAE111,EE111..UKP199809-199911

OD=15

main48812-02080iZZE112..6F..SOL199911-200111

main48812-12160iEE111..JPP..LB..TERRA;EE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199704-199910

main48812-12170iAE111..JPP..LB;EE111..HB..(STD,TERRA);EE111..JPP..LB..(G6,LUNA)199704-199910

OD=14

main48812-12180iEE111..JPP..(G6,LUNA,TERRA);AE111,CE110..JPP..(LUNA,TERRA)199710-199910

OD=15

main48812-12180iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main48812-12200iCDE110;ZZE11#..G6199910-200109

main48812-12300iAE111..G6199809-199812

G6R SPEC

48818BUSH, STABILIZER, REAR

main48818-02050iEE111..UKP..TERRA199809-199911

ID=14

main48818-02060iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

main48818-02060iAE111,EE111..UKP199809-199911

ID=15

main48818-12150iEE111..HB..(STD,TERRA)199710-199910

ID=14

main48818-12150iAE111..LB;EE111..LB..(G6,LUNA);EE111..HB..(STD,TERRA)199704-199710

main48818-12160iEE111..JPP..(G6,LUNA,TERRA);AE111,CE110..JPP..(LUNA,TERRA)199710-199910

ID=15

main48818-12160iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main48818-12170iZZE112..6F..SOL199911-200111

main48818-12180iCDE110;ZZE11#..G6199910-200109

main48818-12220iEE111..JPP..LB..TERRA;EE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-199910

ROUGH ROAD PACKAGE

main48818-12220iEE111..LB..TERRA199704-199711

main48818-12240iAE111..G6199809-199812

G6R SPEC

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48830DLINK ASSY, REAR STABILIZER, RH

main48830-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub48830-20010

main48830-12060iAE111,CE110,EE111199704-200109

sub48830-20010

main48830-20010iAE111,EE111..G6199808-200107

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20030iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48840ALINK ASSY, REAR STABILIZER, LH

main48830-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub48830-20010

main48830-12060iAE111,CE110,EE111199704-200109

sub48830-20010

main48830-20010iAE111,EE111..G6199808-200107

9017908122

main90179-08122

9161160816

main91611-60816

49 parts on this diagram · 2 diagrams in section
