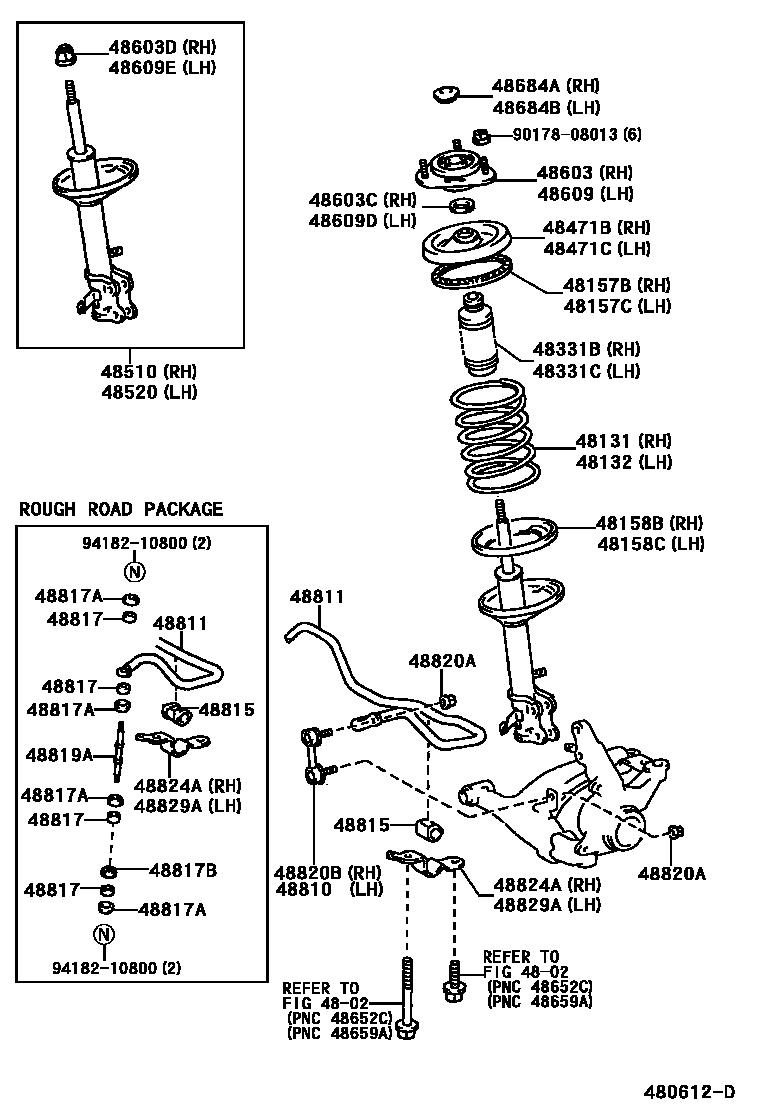

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-02640iEE111..UKP..3FC199809-199911

main48131-02670iEE111..UKP..5F199809-199911

main48131-02680iAE111..UKP..5F199809-199911

sub48131-1N380

main48131-02690iAE111,ZZE112..UKP..4FC199809-200111

L=376.5

main48131-02700iZZE11#..UKP..MTM199911-200111

L=380.0

main48131-02710iWZE110..LB199912-200111

L=407.0

main48131-02820iZZE11#..UKP..MTM199911-200111

L=360.5

main48131-1L450iAE111..4FC199710-199808

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1L690iZZE111..LHD..HB..TERRA199711-200107

L=337.5,ROUGH ROAD PACKAGE

main48131-1L710iAE111..JPP..LHD..LB..5F..TERRA199711-199910

ROUGH ROAD PACKAGE

main48131-1L710iZZE112..JPP..LHD..LB..5F..TERRA199910-200109

main48131-1L890iAE111..JPP..LHD..4FC..TERRA199711-199910

L=351.5,ROUGH ROAD PACKAGE

main48131-1L890iZZE112..JPP..LHD..4FC..TERRA199910-200109

L=351.5

main48131-1N060iEE111..MTM199704-199808

main48131-1N080iEE111..MTM199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N100iEE111..JPP..3FC199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N100iAE111..5F199704-199808

main48131-1N120iAE111..4FC199704-199808

main48131-1N160iAE111..5F199710-199808

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N170iCE110199710-199808

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N180iAE111..G6199809-199812

G6R SPEC

main48131-1N210iCE110199704-199808

main48131-1N230iEE111..3FC199704-199808

main48131-1N330iCDE110200008-200109

L=366

main48131-1N370iZZE11#..JPP..MTM199910-200109

L=358.5

main48131-1N380iEE111..G6;AE111..JPP..5F199808-200109

L=367.5

main48131-1N390iAE111..JPP..(4FC,6F)199808-199910

L=376.5

main48131-1N400iWZE110..HB199808-200107

L=385

48132SPRING, FRONT COIL, LH

main48131-02640iEE111..UKP..3FC199809-199911

main48131-02670iEE111..UKP..5F199809-199911

main48131-02680iAE111..UKP..5F199809-199911

sub48131-1N380

main48131-02690iAE111,ZZE112..UKP..4FC199809-200111

L=376.5

main48131-02700iZZE11#..UKP..MTM199911-200111

L=380.0

main48131-02710iWZE110..LB199912-200111

L=407.0

main48131-02820iZZE11#..UKP..MTM199911-200111

L=360.5

main48131-1L450iAE111..4FC199710-199808

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1L690iZZE111..LHD..HB..TERRA199910-200107

L=337.5

main48131-1L690iEE111..LHD..HB..TERRA199711-199910

L=337.5,ROUGH ROAD PACKAGE

main48131-1L710iZZE112..JPP..LHD..LB..5F..TERRA199910-200109

main48131-1L710iAE111..JPP..LHD..LB..5F..TERRA199711-199910

ROUGH ROAD PACKAGE

main48131-1L890iZZE112..JPP..LHD..4FC..TERRA199910-200109

L=351.5

main48131-1L890iAE111..JPP..LHD..4FC..TERRA199711-199910

L=351.5,ROUGH ROAD PACKAGE

main48131-1N060iEE111..MTM199704-199808

main48131-1N080iEE111..MTM199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N100iEE111..JPP..3FC199710-199910

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N100iAE111..5F199704-199808

main48131-1N120iAE111..4FC199704-199808

main48131-1N160iAE111..5F199710-199808

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N170iCE110199710-199808

DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48131-1N180iAE111..G6199809-199812

G6R SPEC

main48131-1N210iCE110199704-199808

main48131-1N230iEE111..3FC199704-199808

main48131-1N330iCDE110200008-200109

L=366

main48131-1N370iZZE11#..JPP..MTM199910-200109

L=358.5

main48131-1N380iZZE112..JPP..4FC199808-200109

L=367.5

main48131-1N390iAE111..JPP..(4FC,6F)199808-199910

L=376.5

main48131-1N400iCE110199808-200107

L=385

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48157-12070iCDE110,WZE110,ZZE11#..JPP199704-200109

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48157-12070iAE111,CE110,EE111..JPP199704-200109

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48158-12030iAE111,CE110,EE111..JPP199704-200109

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48158-12030iCDE110,WZE110,ZZE11#..JPP199704-200109

48331BBUMPER, FRONT SPRING, RH

main48304-02010iWZE110,ZZE11#..UKP199911-200111

TYPE C:REFER TO ILLUSTRATION

main48304-12020iCE110199808-200109

main48304-12020iZZE11#..UKP..(4FC,5F)199911-200111

TYPE A:REFER TO ILLUSTRATION

main48304-12030iEE111..UKP199809-199911

TYPE A:REFER TO ILLUSTRATION

main48304-12030iAE111..UKP199808-200109

main48331-02040iEE111..UKP199907-199911

main48331-02040iEE111..UKP199809-199901

TYPE B:REFER TO ILLUSTRATION

main48331-12140iAE111,EE111199704-199910

main48331-12150iCE110199704-199711

main48331-12150iCE110;EE111..LHD..HB..TERRA;AE111..LHD..4FC..TERRA;AE111..LHD..LB..5F..TERRA199711-200109

ROUGH ROAD PACKAGE

48331CBUMPER, FRONT SPRING, LH

main48304-02010iZZE11#..UKP..(4FC,5F)199911-200111

TYPE C:REFER TO ILLUSTRATION

main48304-12020iCE110199808-200109

main48304-12020iZZE11#..UKP..(4FC,5F)199911-200111

TYPE A:REFER TO ILLUSTRATION

main48304-12030iAE111..UKP199808-200109

main48304-12030iEE111..UKP199809-199911

TYPE A:REFER TO ILLUSTRATION

main48331-02040iEE111..UKP199809-199901

TYPE B:REFER TO ILLUSTRATION

main48331-02040iEE111..UKP199907-199911

main48331-12140iAE111,EE111199704-199910

main48331-12150iCE110199704-199711

main48331-12150iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

ROUGH ROAD PACKAGE

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iAE111,CE110,EE111..JPP199704-200109

(L)

main48044-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48044-12090iCDE110,WZE110,ZZE11#..JPP199704-200109

(J)

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iCDE110,WZE110,ZZE11#..JPP199704-200109

(L)

main48044-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48044-12090iCDE110,WZE110,ZZE11#..JPP199704-200109

(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09300iAE111,EE111..UKP199809-199901

sub48510-80009

main48510-09400iAE111,EE111..UKP199907-199911

sub48510-09410

main48510-09410iWZE110,ZZE11#..UKP199911-200111

sub48510-80008

main48510-19435iCE110199704-199805

sub48510-80232

main48510-19475iEE111..LHD..HB..TERRA;AE111..LHD..4FC..TERRA;AE111..LHD..LB..5F..TERRA199711-199805

ROUGH ROAD PACKAGE

sub48510-80222

main48510-19715iEE111..JPP;AE111..JPP..(LUNA,TERRA)199704-199910

MARK=48510-1A130

main48510-80003iAE111,EE111199710-199808

MARK 48510-1A230,DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

sub48510-80008

main48510-80006iAE111..G6;AE111,EE111..JPP..LB..(LUNA,TERRA)199808-199910

MARK 48510-1A200

sub48510-80008

main48510-80007iAE111..G6199809-199812

G6R SPEC

main48510-80008iEE111..G6,STD;AE111,EE111..HB..(LUNA,TERRA)199808-199910

MARK 48510-1A231,DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48510-80008iZZE11#..HB..(4FC,5F)199910-200107

MARK 48510-1A231

main48510-80009iZZE112..G6;ZZE112..JPP..LB;ZZE111..LHD..G6;ZZE111..JPP..LB..TERRA;ZZE111..JPP..LHD..LB..SOL;ZZE111..JPP..RHD..(G6,SOL)199910-200109

MARK 48510-1A310

sub48510-80008

main48510-80014iCDE110200008-200109

MARK 48510-1A390

sub48510-80262

main48510-87686iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199805-199812

ROUGH ROAD PACKAGE

sub48510-87693

main48510-87690iCE110199805-199812

sub48510-87700

main48510-87693iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199812-200109

MARK 48510-12792,ROUGH ROAD PACKAGE

sub48510-80222

main48510-87700iCE110199812-200107

sub48510-80232

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09270iAE111,EE111..UKP199809-199901

sub48520-19635

main48520-09340iAE111,EE111..UKP199907-199911

sub48520-09350

main48520-09350iWZE110,ZZE11#..UKP199911-200111

sub48520-19625

main48520-19155iCE110199704-199805

sub48520-80055

main48520-19195iEE111..LHD..HB..TERRA;AE111..LHD..4FC..TERRA;AE111..LHD..LB..5F..TERRA199711-199805

ROUGH ROAD PACKAGE

sub48520-80048

main48520-19395iEE111..JPP;AE111..JPP..(LUNA,TERRA)199704-199910

MARK 48520-12890

main48520-19595iAE111,EE111199710-199808

MARK 48520-1A100,DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

sub48520-19625

main48520-19605iAE111..G6;AE111,EE111..JPP..LB..(LUNA,TERRA)199808-199910

MARK 48520-1A070

sub48520-19625

main48520-19615iAE111..G6199809-199812

G6R SPEC

main48520-19625iAE111,EE111..UKP199808-199910

MARK 48520-1A101,DENMARK FINLAND ITALY NORWAY SWEDEN SPEC

main48520-19625iZZE11#..HB..(4FC,5F)199910-200107

MARK 48520-1A101

main48520-19635iZZE112..G6;ZZE112..JPP..LB;ZZE111..LHD..G6;ZZE111..JPP..LB..TERRA;ZZE111..JPP..LHD..LB..SOL;ZZE111..JPP..RHD..(G6,SOL)199910-200109

MARK 48520-16520

sub48520-19625

main48520-19715iCDE110200008-200109

MARK 48520-1A390

sub48520-80063

main48520-49215iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199805-199812

ROUGH ROAD PACKAGE

sub48520-49216

main48520-49216iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199812-200109

ROUGH ROAD PACKAGE

sub48520-80048

main48520-49255iCE110199805-199812

sub48520-49256

main48520-49256iWZE110..HB199812-200107

sub48520-80055

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02080iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main48609-12260iAE111..G6199809-199812

G6R SPEC

main48609-12340iAE111,EE111..G6199808-200111

sub48609-12341

main48609-12341iCDE110;ZZE11#..G6200008-200109

main48609-12350iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

ROUGH ROAD PACKAGE

main48609-12370iAE111,CE110,EE111..JPP..(LUNA,STD,TERRA)199704-199910

*B/S

main48609-12370iWZE110,ZZE11#..JPP..(4FC,5F)199910-200109

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02080iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main48609-12260iAE111..G6199809-199812

G6R SPEC

main48609-12340iZZE112..6F..SOL199808-200111

sub48609-12341

main48609-12341iCDE110;ZZE11#..G6200008-200109

main48609-12350iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

ROUGH ROAD PACKAGE

main48609-12370iZZE11#..JPP..5F;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199704-200109

*B/S

main48609-12370iWZE110..HB;ZZE112..RHD..HB..4FC200001-200107

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE111,CE110,EE111199704-200111

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48684-12070iCDE110,WZE110,ZZE11#..JPP199704-200109

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48684-12070iAE111,CE110,EE111..JPP199704-200109

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48820-33010iCDE110,WZE110,ZZE11#..JPP199704-200109

48811BAR, STABILIZER, FRONT

main48811-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48811-12890iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

ROUGH ROAD PACKAGE

main48811-1A100iAE111,CE110;EE111..STD,TERRA199704-200109

main48811-1A100iCE110,EE111..JPP;AE111..JPP..(LUNA,TERRA)199710-199910

OD=20

main48811-1A110iEE111..JPP..(G6,LUNA)199704-199910

OD=21

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48815-12230iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

ROUGH ROAD PACKAGE

main48815-12280iCE110,EE111..JPP;AE111..JPP..(LUNA,TERRA)199710-199910

ID=20

main48815-12280iCDE110,WZE110,ZZE11#..JPP199704-200109

main48815-12290iEE111..JPP..(G6,LUNA)199704-199910

ID=21

48817CUSHION, FRONT STABILIZER

main48817-30020iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

48819ABOLT, FRONT STABILIZER

main48819-20030iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48820-33010iCDE110,WZE110,ZZE11#..JPP199704-200109

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

ROUGH ROAD PACKAGE

main48824-12140iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

ROUGH ROAD PACKAGE

main48829-12070iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

9017808013

main90178-08013

9418210800

main94182-10800

34 parts on this diagram · 2 diagrams in section
