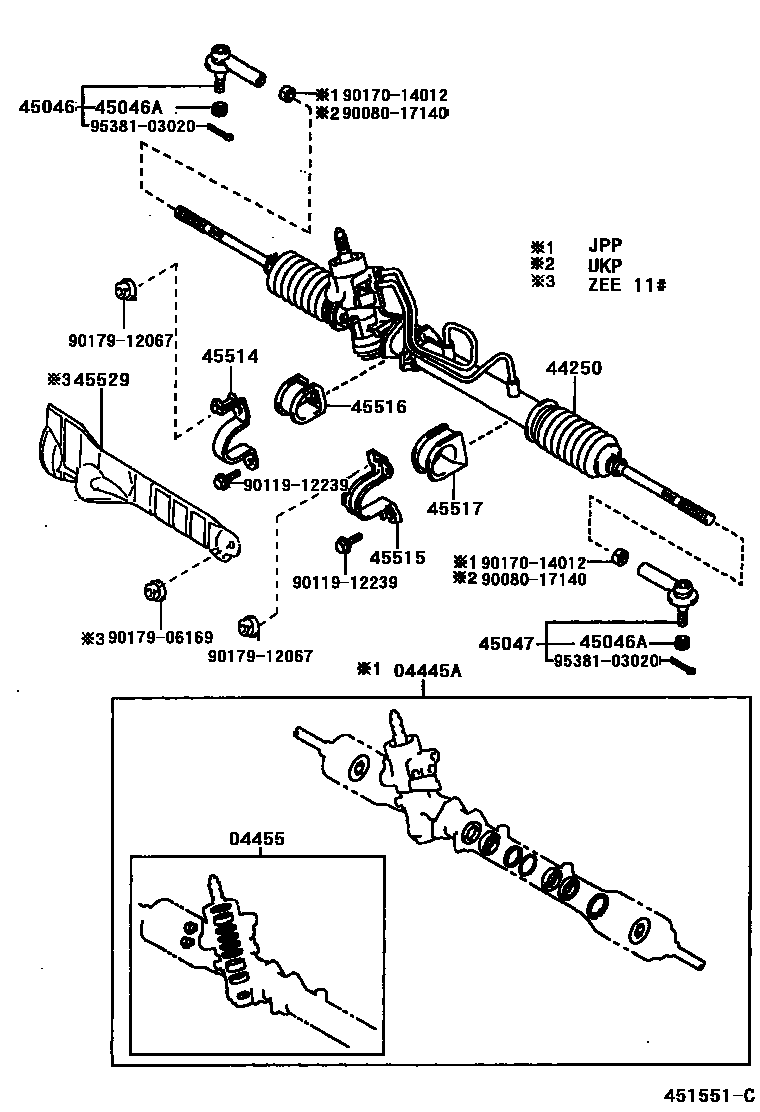

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12150iCDE110,WZE110,ZZE11#..JPP199910-200109

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iCDE110,WZE110,ZZE11#..JPP199910-200109

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-02052iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200001

main44250-02053iWZE110,ZZE11#..UKP..RHD200001-200111

main44250-02061iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200001

main44250-02062iWZE110,ZZE11#..UKP..LHD200001-200005

main44250-02111iWZE110,ZZE11#..UKP..LHD200005-200111

main44250-12540iWZE110,ZZE11#..JPP..RHD199910-200007

main44250-12541iCDE110,WZE110,ZZE11#..JPP..RHD200007-200107

main44250-12580iWZE110,ZZE11#..JPP..LHD199910-200007

main44250-12581iCDE110,WZE110,ZZE11#..JPP..LHD200007-200109

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE111,CE110,EE111..JPP199704-199910

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iCE110..LHD;AE111,EE111..JPP199704-199910

main45514-12110iCE110..RHD199704-199910

main45514-12120iZZE11#199910-200111

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE111,CE110,EE111..JPP..RHD199704-199910

main45515-12180iCDE110,WZE110..LHD;AE111,EE111..UKP..LHD199809-200111

main45515-12190iZZE11#..RHD199910-200111

main45515-12200iZZE11#..LHD199910-200111

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main45516-12060iAE111,CE110,EE111..JPP199704-199910

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main45517-12111iCDE110,WZE110,ZZE11#..JPP199910-200109

45529INSULATOR, STEERING RACK BOOT HEAT

main45529-12030iZZE11#..RHD199910-200111

main45529-12040iZZE11#..LHD199910-200111

9008017140

main90080-17140

9011912239

main90119-12239

9017014012

main90170-14012

9017906169

main90179-06169

9017912067

main90179-12067

9538103020

main95381-03020

17 parts on this diagram · 3 diagrams in section
