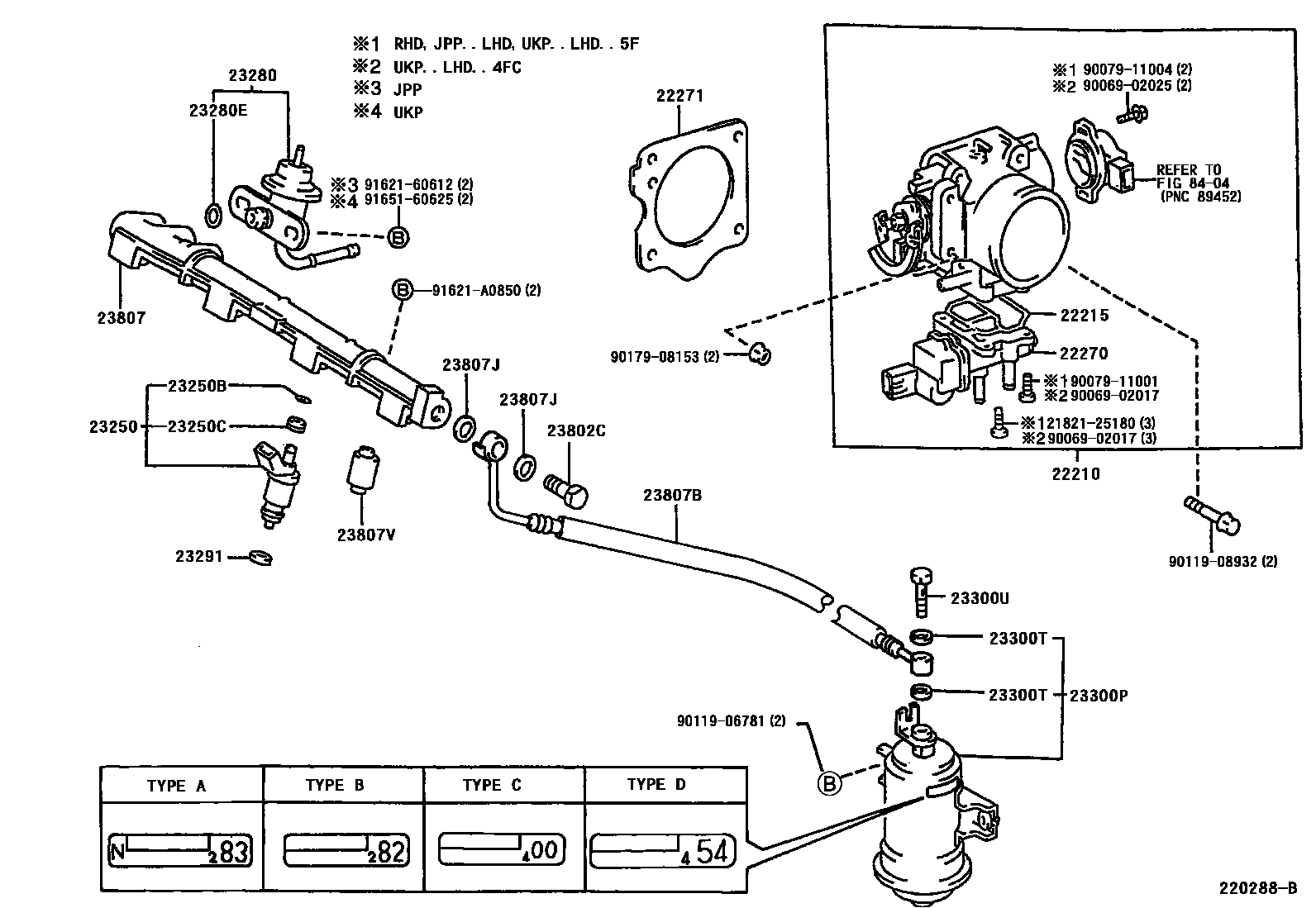

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
(L)
(L)
(J)
(J)
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23300PFILTER, FUEL(FOR EFI)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE D:REFER TO ILLUSTRATION
main23300-22020i3ZZFE..ZZE112..JPP..LB..4FC;3ZZFE..ZZE112..LHD..HB..4FC;3ZZFE,4ZZFE..ZZE11#..JPP..MTM199910-200109
MARK 23300-22020
MARK 23300-22030
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
(L)
(J)
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9006902017
main90069-02017
9006902025
main90069-02025
9007911001
main90079-11001
9007911004
main90079-11004
9011906781
main90119-06781
9011908932
main90119-08932
9017908153
main90179-08153
9162160612
main91621-60612
91621A0850
main91621-A0850
9165160625
main91651-60625
30 parts on this diagram · 8 diagrams in section
