ENGINE OVERHAUL GASKET KIT

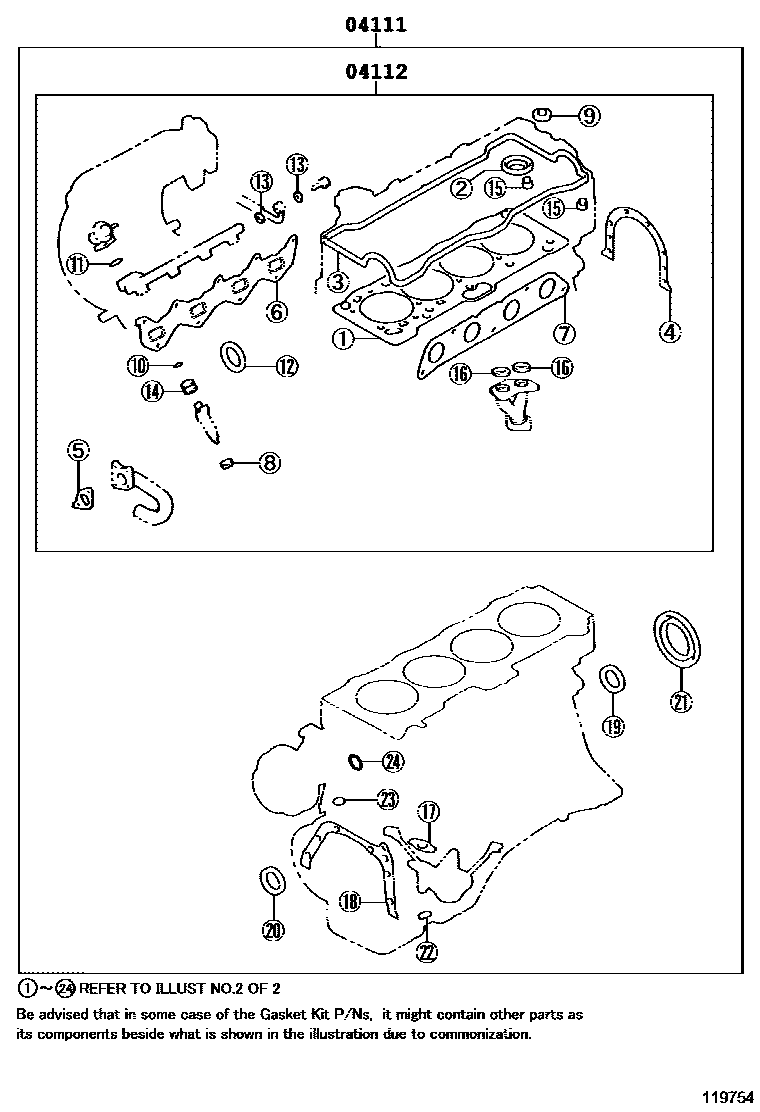

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-02070i199809-199911
main04111-02080i199809-199911
main04111-0D010i199911-200111
sub04111-0D011
main04111-11141i199704-199910
main04111-16231i199704-199910
main04111-22080i199910-200109
sub04111-22081
main04111-27060i200008-200109
main04111-64292i199704-199708
sub04111-64293
sub11115-64140
main04111-64293i199708-199805
sub04111-64294
main04111-64294i199805-199811
sub04111-64295
main04111-64295i199811-199906
sub04111-64296
main04111-64296i199906-199910
mainSU00100003i199912-200111
04112GASKET KIT, ENGINE VALVE GRIND
main04112-02070i199809-199911
main04112-02080i199809-199911
main04112-0D010i199911-200111
sub04112-0D011
main04112-11121i199704-199910
main04112-16230i199704-199910
main04112-22080i199910-200109
sub04112-22081
main04112-27050i200008-200109
main04112-64222i199704-199708
sub04112-64223
sub11115-64140
main04112-64223i199708-199906
sub04112-64224
main04112-64224i199906-199910
mainSU00100042i199912-200111

2 parts on this diagram · 17 diagrams in section
