MIRROR
87810MIRROR ASSY, INNER REAR VIEW
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
DAY/NIGHT TYPE,LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#
DAY/NIGHT TYPE,LIGHT BLUE,TRIM8#; LIGHT BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-1E070iAE101..GLI;AE102..RHD;AE102..5D..LHD;EE101..5D..RHD..GLI; EE101..LHD..GLI;CE100,EE101..RHD..(XL,XLI)199205-199505
ELECTRIC REMOTE CONTROL MIRROR
main87931-1E080iAE10#,EE100;EE101..RHD..GLI;CE100,EE101..LHD..(STD,XL,XLI); CE100,EE101..RHD..(XL,XLI)199205-199505
MANUAL REMOTE CONTROL MIRROR
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
ELECTRIC REMOTE CONTROL MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040
ELECTRIC REMOTE CONTROL MIRROR,BLUEISH GRAY ME,182
ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199
ELECTRIC REMOTE CONTROL MIRROR,BLACK METALLIC,205
ELECTRIC REMOTE CONTROL MIRROR,SUPER RED 2,3E5
ELECTRIC REMOTE CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
ELECTRIC REMOTE CONTROL MIRROR,TURQUOISE M.M.,746
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUE MC,8K8
ELECTRIC REMOTE CONTROL MIRROR,STRONG BLUE M.,8B6
MANUAL REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUEISH GRAY M.,183
ELECTRIC REMOTE CONTROL MIRROR,SILVER MICA M.,192
ELECTRIC REMOTE CONTROL MIRROR,SUPER RED 2,3E5
ELECTRIC REMOTE CONTROL MIRROR,GRAISH GREEN M.,6M3
MANUAL REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040
ELECTRIC REMOTE CONTROL MIRROR,SILVER MICA M.,192
ELECTRIC REMOTE CONTROL MIRROR,BLUISH GRAY ME.,182
ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199
ELECTRIC REMOTE CONTROL MIRROR,BLACK METALLIC,205
ELECTRIC REMOTE CONTROL MIRROR,SUPER RED 2,3E5
ELECTRIC REMOTE CONTROL MIRROR,GRAISH GREEN M.,6M3
ELECTRIC REMOTE CONTROL MIRROR,GREEN M.M.,6P0
ELECTRIC REMOTE CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
ELECTRIC REMOTE CONTROL MIRROR,TURQUISE M.M.,746
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUE MICA M.,8G5
ELECTRIC REMOTE CONTROL MIRROR,LT.PURPLISH BLUE M.M,8K1
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUE MICA,8K8
ELECTRIC REMOTE CONTROL MIRROR,STRONG BLUE M.,8B6
ELECTRIC REMOTE CONTROL MIRROR,LAVENDER MICA M.,925
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
MANUAL REMOTO CONTROL MIRROR,SILVER ME,199
MANUAL REMOTO CONTROL MIRROR,SUPER RED 2,3E5
MANUAL REMOTO CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
95 SPRING CAMPAIGN,TURQUISE M.M.,746
MANUAL REMOTO CONTROL MIRROR,STRONG BLUE M.,8B6
MANUAL REMOTO CONTROL MIRROR,SUPER WHITE 2,040
MANUAL REMOTO CONTROL MIRROR,BLUEISH GRAY ME,182
MANUAL REMOTO CONTROL MIRROR,SILVER ME,199
MANUAL REMOTO CONTROL MIRROR,BLACK M.,205
MANUAL REMOTO CONTROL MIRROR,SUPER RED 2,3E5
MANUAL REMOTO CONTROL MIRROR,MD.GREEN M.M.,6P0
MANUAL REMOTO CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
95 SPRING CAMPAIGN,TURQUISE M.M.,746
MANUAL REMOTO CONTROL MIRROR,STRONG BLUE M.,8B6
MANUAL REMOTO CONTROL MIRROR,DARK BLUE MC,8K8
95 SPRING CAMPAIGN,TURQUISE M.M.,746
95 SPRING CAMPAIGN,TURQUISE M.M.,746
87940MIRROR ASSY, OUTER REAR VIEW, LH
ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040
ELECTRIC REMOTE CONTROL MIRROR,BLUEISH GRAY ME,182
ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199
ELECTRIC REMOTE CONTROL MIRROR,BLACK METALLIC,205
ELECTRIC REMOTE CONTROL MIRROR,SUPER RED 2,3E5
ELECTRIC REMOTE CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
ELECTRIC REMOTE CONTROL MIRROR,TURQUOISE M.M.,746
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUE MC,8K8
ELECTRIC REMOTE CONTROL MIRROR,STRONG BLUE M.,8B6
ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUEISH GRAY M.,183
ELECTRIC REMOTE CONTROL MIRROR,SILVER MICA M.,192
ELECTRIC REMOTE CONTROL MIRROR,SUPER RED 2,3E5
ELECTRIC REMOTE CONTROL MIRROR,GRAISH GREEN M.,6M3
MANUAL REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040
ELECTRIC REMOTE CONTROL MIRROR,SILVER MICA M.,192
ELECTRIC REMOTE CONTROL MIRROR,BLUEISH GRAY ME,182
ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199
ELECTRIC REMOTE CONTROL MIRROR,BLACK METALLIC,205
ELECTRIC REMOTE CONTROL MIRROR,SUPER RED 2,3E5
ELECTRIC REMOTE CONTROL MIRROR,GRAISH GREEN M.,6M3
ELECTRIC REMOTE CONTROL MIRROR,MD.GREEN M.M.,6P0
ELECTRIC REMOTE CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
ELECTRIC REMOTE CONTROL MIRROR,TURQUISE M.M.,746
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUE MICA M.,8G5
ELECTRIC REMOTE CONTROL MIRROR,LT.PURPLISH BLUE M.M
ELECTRIC REMOTE CONTROL MIRROR,DARK BLUE MICA,8K8
ELECTRIC REMOTE CONTROL MIRROR,STRONG BLUE M.,8B6
ELECTRIC REMOTE CONTROL MIRROR,LAVENDER MICA M.,925
MANUAL REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
MANUAL REMOTO CONTROL MIRROR,SILVER ME,199
MANUAL REMOTO CONTROL MIRROR,SUPER RED 2,3E5
MANUAL REMOTO CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
MANUAL REMOTO CONTROL MIRROR,TURQUOISE M.M.,746
MANUAL REMOTO CONTROL MIRROR,STRONG BLUE M.,8B6
MANUAL REMOTO CONTROL MIRROR,SUPER WHITE 2,040
MANUAL REMOTO CONTROL MIRROR,BLUEISH GRAY ME,182
MANUAL REMOTO CONTROL MIRROR,SILVER ME,199
MANUAL REMOTO CONTROL MIRROR,BLACK M.,205
MANUAL REMOTO CONTROL MIRROR,SUPER RED 2,3E5
MANUAL REMOTO CONTROL MIRROR,MD.GREEN M.M.,6P0
MANUAL REMOTO CONTROL MIRROR,MEDIUM GREEN M.M.,6P6
MANUAL REMOTO CONTROL MIRROR,TURQUISE M.M.,746
MANUAL REMOTO CONTROL MIRROR,STRONG BLUE M.,8B6
MANUAL REMOTO CONTROL MIRROR,DARK BLUE MC,8K8
95 SPRING CAMPAIGN,TURQUISE M.M.,746
95 SPRING CAMPAIGN,TURQUISE M.M.,746
9010506216
main90105-06216
9014950035
main90149-50035
9033320001
main90333-20001
9095901459
main90959-01459
9151260614
main91512-60614

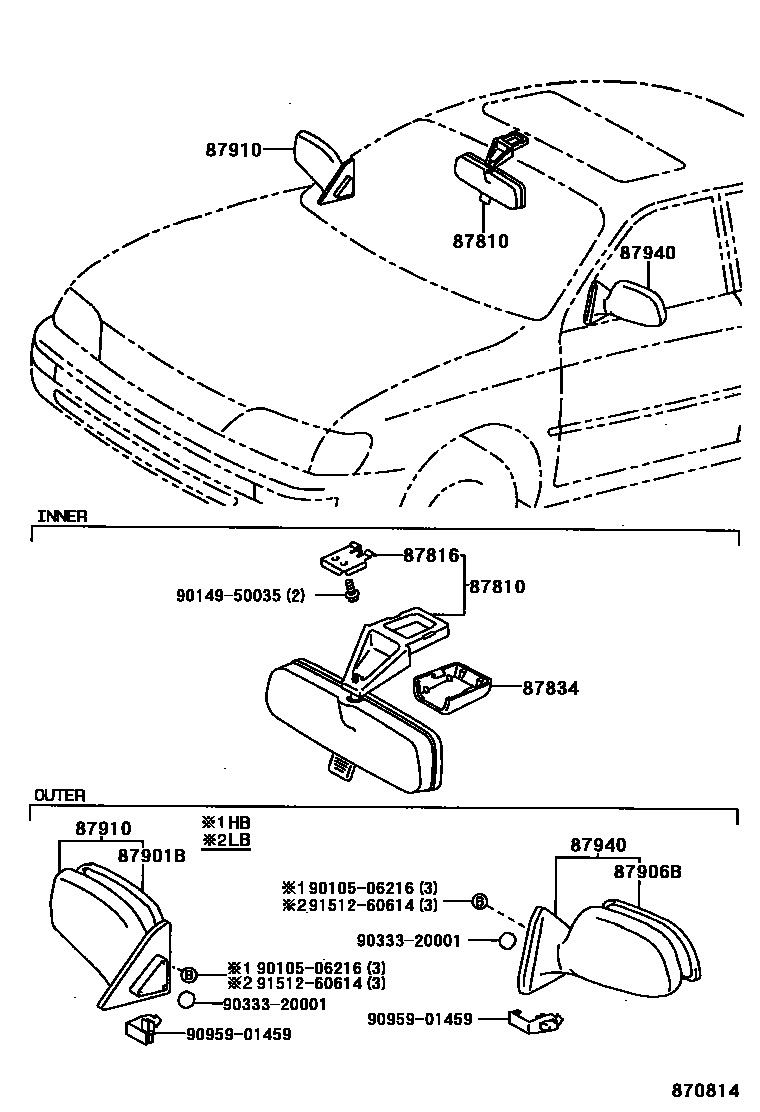

12 parts on this diagram · 1 diagram in section
