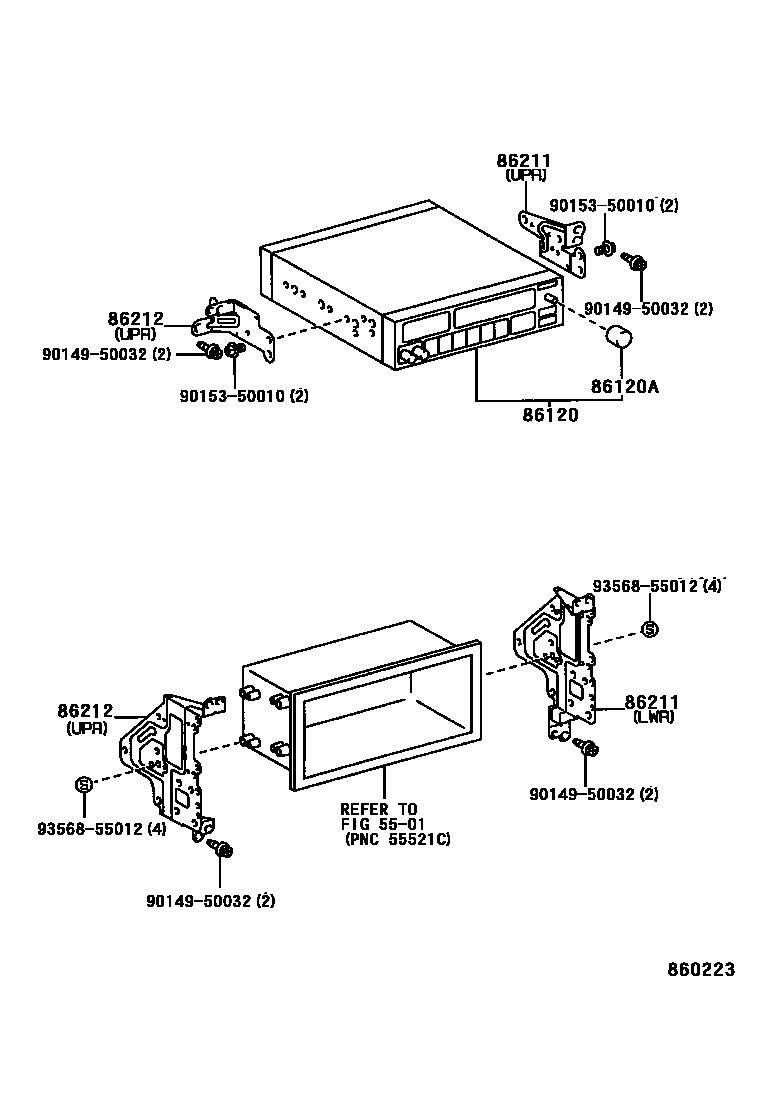

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86120RECEIVER ASSY, RADIO

main86120-12520iAE10#,CE100,EE10#199205

main86120-12790iAE10#,CE100,EE10#199205-199304

LW/MW/UKW MULTIPLEX ETR CASSETTE 2SPEAKER

main86120-12810iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199205-199304

LW/MW/UKW MULTIPLEX ETR CASSETTE 4SPEAKER

main86120-1A060iAE10#,CE100,EE10#199304

LW/MW/UKW MULTIPLEX ETR CASSETTE 2SPEAKER

main86120-1A080iAE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI199304

LW/MW/UKW MULTIPLEX ETR CASSETTE 4SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main86128-17490×2iAE10#,CE100,EE10#199304

86211BRACKET, RADIO, NO.1

main86211-12250iAE10#,CE100,EE10#199205

LOWER

main86211-12320iAE10#,CE100,EE10#..LHD199205

UPPER

main86211-12330iAE10#,CE100,EE101..RHD199205

UPPER

86212BRACKET, RADIO, NO.2

main86212-12230iAE10#,CE100,EE10#199205

LOWER

main86212-12300iAE10#,CE100,EE101..RHD199205

UPPER

main86212-12310iAE10#,CE100,EE10#..LHD199205

UPPER

9014950032

main90149-50032

9015350010

main90153-50010

9356855012

main93568-55012

8 parts on this diagram · 3 diagrams in section
