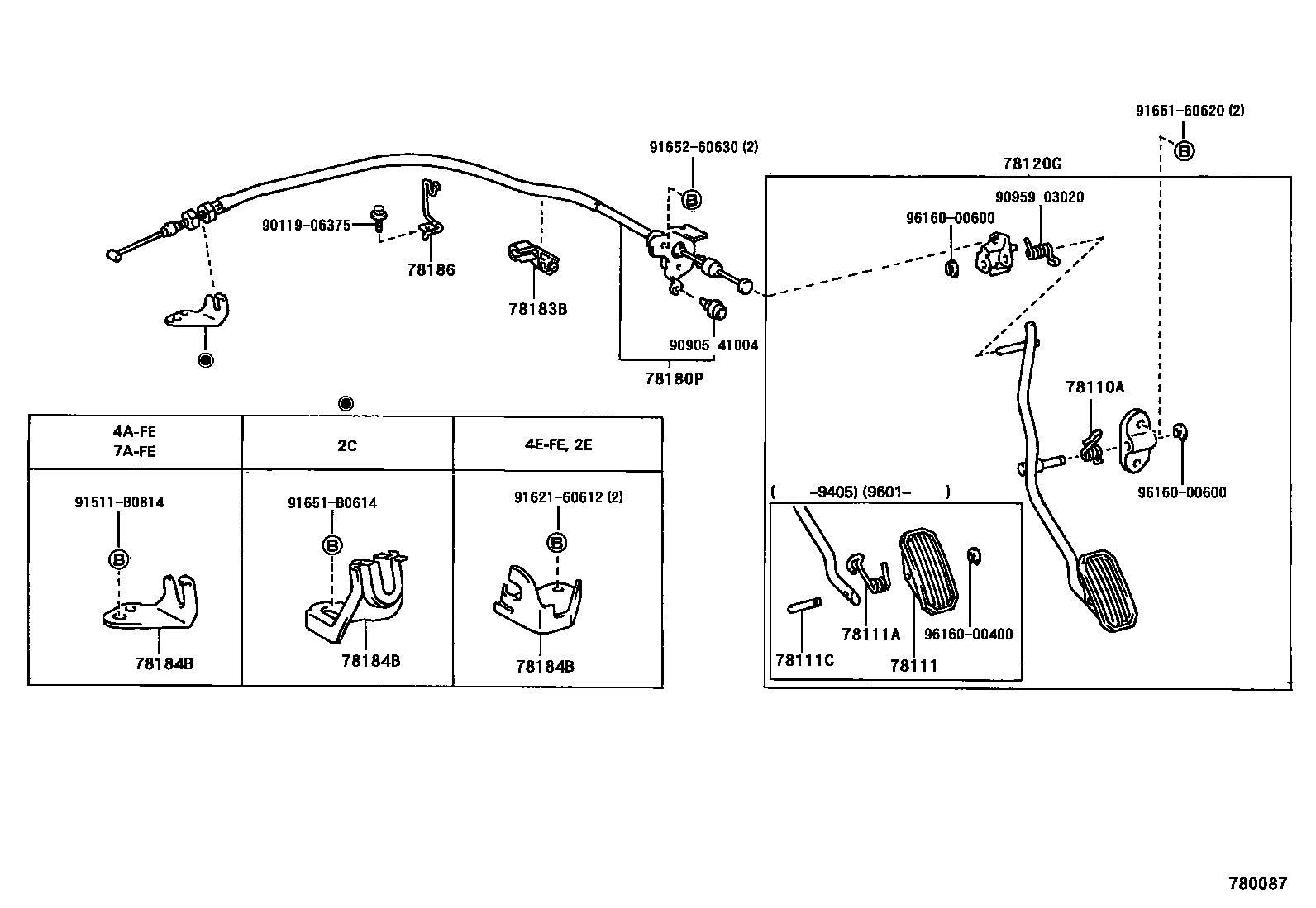

ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iEE101..3FC;AE101,CE100199205-199605

main90508-26036iCE100,EE101..5F199205-199605

78111PEDAL, ACCELERATOR

main78111-32010iAE10#,CE100,EE10#199205-199408

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAE101,CE100,EE101..RHD199205-199405

main90959-03040iAE10#,CE100,EE10#..LHD199302-199408

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE10#,CE100,EE10#199205-199408

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12150iCE100,EE101..RHD..5F199205-199605

main78120-12151iCE100,EE101..RHD..5F199405-199601

sub78120-12150

main78120-12160iAE10#..RHD;EE101..RHD..3FC199205-199605

main78120-12161iAE10#..RHD;EE101..RHD..3FC199405-199601

sub78120-12160

main78120-12200iCE100,EE101..LHD..5F199205-199408

sub78120-12201

main78120-12201iCE100,EE101..LHD..5F199505-199605

main78120-12210iEE101..LHD..3FC;AE10#,EE100..LHD..5F199205-199408

sub78120-12230

main78120-12220iAE101..LHD..4FC199205-199408

sub78120-12221

main78120-12221iAE101..LHD..4FC199408

main78120-12230iEE101..LHD..3FC;AE10#,EE100..LHD..5F199408-199605

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-02030iAE10#..LHD199205-199605

(L)

main78180-1A420iAE10#..RHD199205

main78180-1A440iEE101..RHD199205-199505

main78180-1A490iCE100..RHD199205

main78180-1A520iAE101..LHD199605

main78180-1A520iAE10#..LHD199205-199605

(J)

main78180-1A550iCE100..LHD199205

main78180-1A580iEE101..LHD199205-199505

main78180-1A590iEE100199205-199505

main78180-1A660iEE101..RHD199505

main78180-1A760iEE101..LHD199505

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160iAE10#,CE100,EE101..RHD199205

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78024-12040iAE101..LHD..4FC199205-199411

sub78024-12041

main78024-12041iAE101..LHD..4FC199411

main78024-12050iAE10#..LHD..5F199205

main78024-32140iCE100199205

main78184-10080iEE101199205-199505

main78184-12280iAE10#..RHD199205

main78184-16070iEE101199505

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12170iEE100199205-199505

main78186-12290iAE10#..RHD199205

main78186-12320iCE100..LHD199205

sub78186-12480

main78186-16120iEE101..LHD199205-199505

TYPE A

main78186-16150iEE101..LHD199205

TYPE B

main78186-16190iEE101..LHD199505

TYPE A

9011906375

main90119-06375

9090541004

main90905-41004

9095903020

main90959-03020

91511B0814

main91511-B0814

9162160612

main91621-60612

9165160620

main91651-60620

91651B0614

main91651-B0614

9165260630

main91652-60630

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 2 diagrams in section
