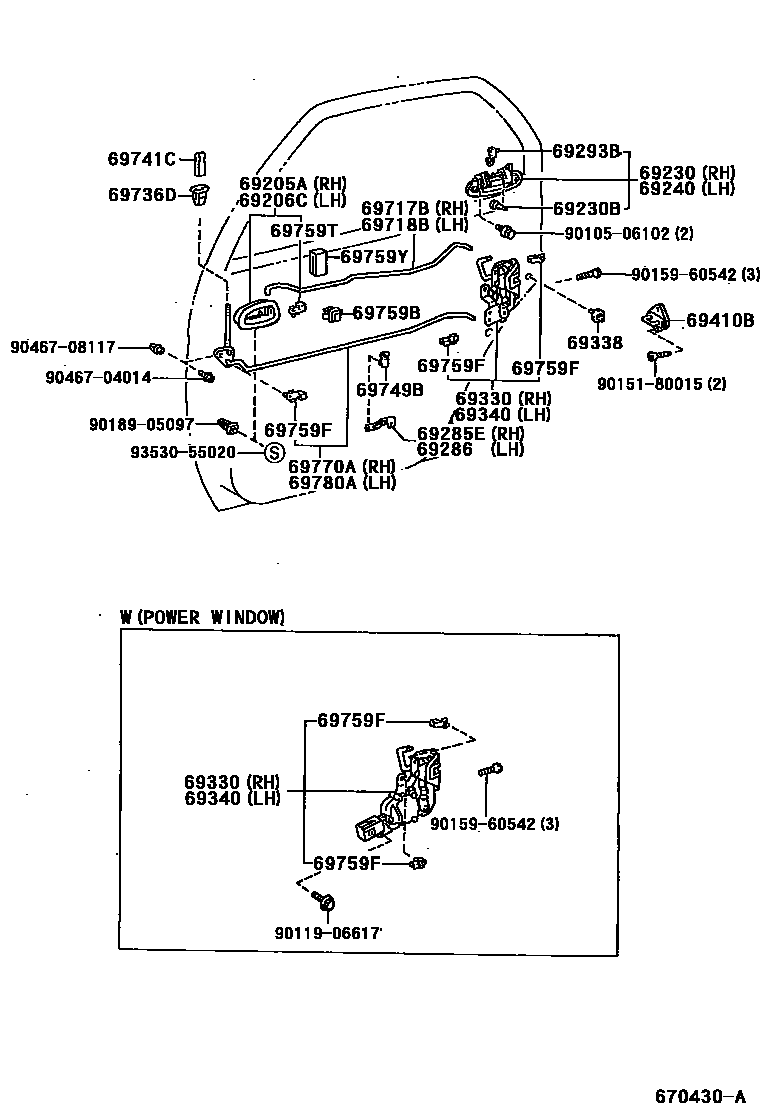

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-12020-03iAE10#,CE100,EE10#..5D199205-199704

SHADOW GRAY,TRIM1#

sub69207-12020

main69207-12020-04iAE101,CE100,EE10#..5D199205-199704

DARK BLUE,TRIM8#

sub69207-12020

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-12020-03iAE10#,CE100,EE10#..5D199205-199704

SHADOW GRAY,TRIM1#

sub69208-12020

main69208-12020-04iAE101,CE100,EE10#..5D199205-199704

DARK BLUE,TRIM8#

sub69208-12020

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12140iAE101,CE100,EE10#..5D199205

main69230-12150-03iAE102..5D199211-199505

DARK BLUEISH GRAY M,183

sub69230-12150

main69230-12150-07iAE102..5D199211-199505

GRAYISH GREEN M,6M3

sub69230-12150

main69230-12150-A0iAE101,CE100,EE101..5D..(XL,XLI)199211-199505

SUPER WHITE 2,040

sub69230-12150

main69230-12150-A0iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SUPER WHITE 2,040

sub69230-12150

main69230-12150-B0iAE102..5D199211-199505

SILVER MICA M,192

sub69230-12150

main69230-12150-B3iAE101,CE100,EE101..5D..(XL,XLI)199605

BLUEISH GRAY ME.,182

sub69230-12150

main69230-12150-B3iAE101,CE100,EE101..5D199511

'96 SPRING CAMPAIGN,BLUEISH GRAY ME.,182

sub69230-12150

main69230-12150-B4iCE100,EE101..5D..LHD199511-199604

'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,1A7

sub69230-12150

main69230-12150-B4iCE100,EE101..5D..LHD199511-199604

'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SILVER PEARL M,1A7

sub69230-12150

main69230-12150-B4iCE100,EE101..5D..LHD199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SILVER PEARL M,1A7

sub69230-12150

main69230-12150-B4iAE101,CE100,EE101..5D199511

'96 SPRING CAMPAIGN,SILVER PEARL M,1A7

sub69230-12150

main69230-12150-B4iEE101..5D..LHD..5F199512-199604

'96 SPRING CAMPAIGN(FRANCE),SILVER PEARL M,1A7

sub69230-12150

main69230-12150-B4iEE101..5D..LHD..5F199512-199604

'96 SPRING CAMPAIGN(UK),SILVER PEARL M,1A7

sub69230-12150

main69230-12150-B5iAE101,CE100,EE101..5D..(XL,XLI)199605

SILVER ME,199

sub69230-12150

main69230-12150-C0iAE101,CE100,EE101..5D..(XL,XLI)199605

BLACK M,205

sub69230-12150

main69230-12150-D0iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SUPER RED 2,3E5

sub69230-12150

main69230-12150-D0iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),SUPER RED 2,3E5

sub69230-12150

main69230-12150-D0iAE102..5D199211-199505

SUPER RED 2,3E5

sub69230-12150

main69230-12150-D3iAE102..5D199211-199305

ROSE GRAPHITE MI ME,3K5

sub69230-12150

main69230-12150-G7iAE101,CE100,EE101..5D..(XL,XLI)199605-199611

MD. GREEN M.M.,6P0

sub69230-12150

main69230-12150-G7iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),MD.GREEN M.M,6P0

sub69230-12150

main69230-12150-H0iAE102..5D199211-199505

DEEP TURQUOISE ME,747

sub69230-12150

main69230-12150-H2iAE101,CE100,EE101..5D..(XL,XLI)199605

TURQUOISE M.M.,746

sub69230-12150

main69230-12150-H2iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),TURQUOISE M.M.,746

sub69230-12150

main69230-12150-H2iEE101..HB..5D;CE100..5D..LHD199412-199504

95 SPRING CAMPAIGN,TURQUOISE M.M.,746

sub69230-12150

main69230-12150-H2iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),TURQUOISE M.M.,746

sub69230-12150

main69230-12150-J4iAE102..5D199305-199505

DARK BLUE MICA M.,8G5

sub69230-12150

main69230-12150-J5iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),LT PURPLISH BLUE M.M,8K1

sub69230-12150

main69230-12150-J7iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),DK.BLUE MC.,8K8

sub69230-12150

main69230-12150-J7iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),DK.BLUE MC.,8K8

sub69230-12150

main69230-12150-J7iAE101,CE100,EE101..5D..(XL,XLI)199605

DARK BLUE MC.,8K8

sub69230-12150

main69230-12150-J9iAE101,CE100,EE101..5D..(XL,XLI)199605

STRONG BLUE M,8B6

sub69230-12150

main69230-12150-Q1iEE101..5D..RHD;AE101,CE100..5D..(XL,XLI)199611

GREEN MC.,6P6

sub69230-12150

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iAE10#,CE100,EE10#..5D199205

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12140iAE101,CE100,EE10#..5D199205

main69240-12150-03iAE102..5D199211-199505

DARK BLUEISH GRAY M,183

sub69240-12150

main69240-12150-07iAE102..5D199211-199505

GRAYISH GREEN M,6M3

sub69240-12150

main69240-12150-A0iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SUPER WHITE 2,040

sub69240-12150

main69240-12150-A0iAE101,CE100,EE101..5D..(XL,XLI)199211-199505

SUPER WHITE 2,040

sub69240-12150

main69240-12150-B0iAE102..5D199211-199505

SILVER MICA M,192

sub69240-12150

main69240-12150-B3iAE101,CE100,EE101..5D..(XL,XLI)199605

BLUEISH GRAY ME.,182

sub69240-12150

main69240-12150-B3iAE101,CE100,EE101..5D199511

'96 SPRING CAMPAIGN,BLUEISH GRAY ME.,182

sub69240-12150

main69240-12150-B4iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SILVER PEARL M,1A7

sub69240-12150

main69240-12150-B4iCE100,EE101..5D..LHD..5F199511-199604

'96 SPRING CAMPAIGN(FRANCE),SHADOW GRAY,1A7

sub69240-12150

main69240-12150-B4iCE100,EE101..5D..LHD..5F199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SILVER PEARL M,1A7

sub69240-12150

main69240-12150-B4iEE101..5D..LHD..5F199512-199604

'96 SPRING CAMPAIGN(FRANCE),SILVER PEARL M,1A7

sub69240-12150

main69240-12150-B4iEE101..5D..LHD..5F199512-199604

'96 SPRING CAMPAIGN(UK),SILVER PEARL M,1A7

sub69240-12150

main69240-12150-B4iAE101,CE100,EE101..5D199511

'96 SPRING CAMPAIGN,SILVER PEARL M,1A7

sub69240-12150

main69240-12150-B5iAE101,CE100,EE101..5D..(XL,XLI)199605

SILVER ME,199

sub69240-12150

main69240-12150-C0iAE101,CE100,EE101..5D..(XL,XLI)199605

BLACK M,205

sub69240-12150

main69240-12150-D0iAE102..5D199211-199505

SUPER RED 2,3E5

sub69240-12150

main69240-12150-D0iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SUPER RED 2,3E5

sub69240-12150

main69240-12150-D0iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),SUPER RED 2,3E5

sub69240-12150

main69240-12150-D3iAE102..5D199211-199305

ROSE GRAPHITE MI ME,3K5

sub69240-12150

main69240-12150-G7iEE101..5D..LHD199605-199611

MD. GREEN M.M.,6P0

sub69240-12150

main69240-12150-G7iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),MD.GREEN M.M,6P0

sub69240-12150

main69240-12150-H0iAE102..5D199211-199505

DEEP TURQUOISE ME,747

sub69240-12150

main69240-12150-H2iAE101,CE100,EE101..5D..(XL,XLI)199605

TURQUOISE M.M.,746

sub69240-12150

main69240-12150-H2iEE101..HB..5D;CE100..5D..LHD199412-199504

95 SPRING CAMPAIGN,TURQUOISE M.M.,746

sub69240-12150

main69240-12150-H2iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),TURQUOISE M.M.,746

sub69240-12150

main69240-12150-H2iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),TURQUOISE M.M.,746

sub69240-12150

main69240-12150-J4iAE102..5D199305-199505

DARK BLUE MICA M.,8G5

sub69240-12150

main69240-12150-J5iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),LT PURPLISH BLUE M.M,8K1

sub69240-12150

main69240-12150-J6iAE101,EE101..5D..LHD..5F..XLI199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),DK.BLUE MC.,8K8

sub69240-12150

main69240-12150-J6iAE101,CE100,EE101..5D..(XL,XLI)199605

DARK BLUE MC,8K8

sub69240-12150

main69240-12150-J6iEE101..5D..RHD199512-199604

'96 SPRING CAMPAIGN(UK),DK.BLUE MC.,8K8

sub69240-12150

main69240-12150-J9iAE101,CE100,EE101..5D..(XL,XLI)199605

STRONG BLUE M,8B6

sub69240-12150

main69240-12150-Q1iEE101..5D..RHD;AE101,CE100..5D..(XL,XLI)199611

GREEN MC.,6P6

sub69240-12150

69285EPLATE, REAR DOOR INSIDE LOCKING CONTROL, RH

main69285-12020iAE101,CE100,EE10#..HB..5D199206-199403

69286PLATE, REAR DOOR INSIDE LOCKING CONTROL, LH

main69286-12020iAE101,CE100,EE10#..HB..5D199206-199403

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAE10#,CE100,EE10#..5D199205

RH

main69293-12040iAE10#,CE100,EE10#..5D199205

LH

69330LOCK ASSY, REAR DOOR, RH

main69305-12020iAE101,CE100,EE10#..HB..5D199206-199403

sub69305-12021

main69305-12021iCE100,EE101..HB..5D;AE101,EE100..HB..5D..LHD199403

main69305-12050iAE101,CE100,EE10#..HB..5D199206-199403

W(*EL)

sub69305-12051

main69305-12050iAE101..5D..4FC..XLI199211-199305

W(*EL) OR W(*PW)

sub69305-12051

main69305-12051iCE100,EE101..HB..5D;AE101,EE100..HB..5D..LHD199403

W(*EL)

main69305-12051iAE101..RHD..GLI199505

main69305-12060iAE10#,CE100,EE10#..LB199205-199404

main69305-12061iAE10#,CE100,EE10#..LB199404-199505

main69305-12070iAE10#,CE100,EE10#..LB199205-199404

W(*EL)

main69305-12071iAE10#,CE100,EE10#..LB199404-199505

W(*EL)

69338KNOB, CHILD PROTECTOR LOCK LEVER

main69338-12020iAE10#,CE100,EE10#..5D199205

69340LOCK ASSY, REAR DOOR, LH

main69306-12020iAE101,CE100,EE10#..HB..5D199206-199403

sub69306-12021

main69306-12021iCE100,EE101..HB..5D;AE101,EE100..HB..5D..LHD199403

main69306-12050iAE101,CE100,EE10#..HB..5D..(3FC,5F)199206-199403

W(*EL)

sub69306-12051

main69306-12050iAE101..5D..4FC..XLI199211-199305

W(*EL) OR W(*PW)

sub69306-12051

main69306-12051iAE101..RHD..GLI199505

main69306-12051iCE100,EE101..HB..5D;AE101,EE100..HB..5D..LHD199403

W(*EL)

main69306-12060iAE10#,CE100,EE10#..LB199205-199404

main69306-12061iAE10#,CE100,EE10#..LB199404-199505

main69306-12070iAE10#,CE100,EE10#..LB199205-199404

W(*EL)

main69306-12071iAE10#,CE100,EE10#..LB199404-199505

W(*EL)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iAE10#,CE100,EE10#..5D199205-199305

main69410-87001iAE10#,CE100,EE10#..5D199305

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-12050iAE101,CE100,EE10#..HB..5D199206

main69713-12080iAE10#,CE100,EE10#..LB199205-199505

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-12060iAE101,CE100,EE10#..HB..5D199206

main69714-12090iAE10#,CE100,EE10#..LB199205-199505

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12100iAE101,CE100,EE10#..HB..5D199206

main69736-12110iAE10#,CE100,EE10#..LB199205-199505

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-87003-13iAE10#,CE100,EE10#..5D199205-199704

SHADOW GRAY,TRIM1#

sub69741-87003

main69741-87003-14iAE101,CE100,EE10#..5D199205-199704

DARK BLUE,TRIM8#

sub69741-87003

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040iAE10#,CE100,EE10#..LB199205-199404

main69749-12080iAE101,CE100,EE10#..HB..5D199206-199404

69759BSNAP, REAR DOOR LOCK CYLINDER

main69749-50020iAE101,CE100,EE10#..HB..5D199206

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iAE10#,CE100,EE10#..5D199205

NATURAL

main69759-20030iAE10#,CE100,EE10#..5D199205

LIGHT BLUE

main69759-20040iAE10#,CE100,EE10#..5D199205

YELLOW

main69759-20050iAE10#,CE100,EE10#..5D199205

BROWN

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-22040iAE10#,CE100,EE10#..5D199205

LH

main69759-22050iAE10#,CE100,EE10#..5D199205

RH

69759YSILENCER, REAR DOOR LOCK LINK

main69759-20390iAE101,CE100,EE101..5D199601

60 X 40

main69759-30021iAE10#,CE100,EE10#..5D199205-199511

main69759-30021iAE101,CE100,EE101..5D199511

80 X 40

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-12050iAE101,CE100,EE10#..HB..5D199403

main69770-12080iAE10#,CE100,EE10#..LB199205-199404

main69770-12081iAE10#,CE100,EE10#..LB199404-199505

main69770-12090iAE101,CE100,EE10#..HB..5D199206-199403

sub69770-12050

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-12050iAE101,CE100,EE10#..HB..5D199403

main69780-12080iAE10#,CE100,EE10#..LB199205-199404

main69780-12081iAE10#,CE100,EE10#..LB199404-199505

main69780-12090iAE101,CE100,EE10#..HB..5D199206-199403

sub69780-12050

9010506102

main90105-06102

9011906617

main90119-06617

9015180015

main90151-80015

9015960542

main90159-60542

9018905097

main90189-05097

9046704014

main90467-04014

9046708117

main90467-08117

9353055020

main93530-55020

31 parts on this diagram · 1 diagram in section
