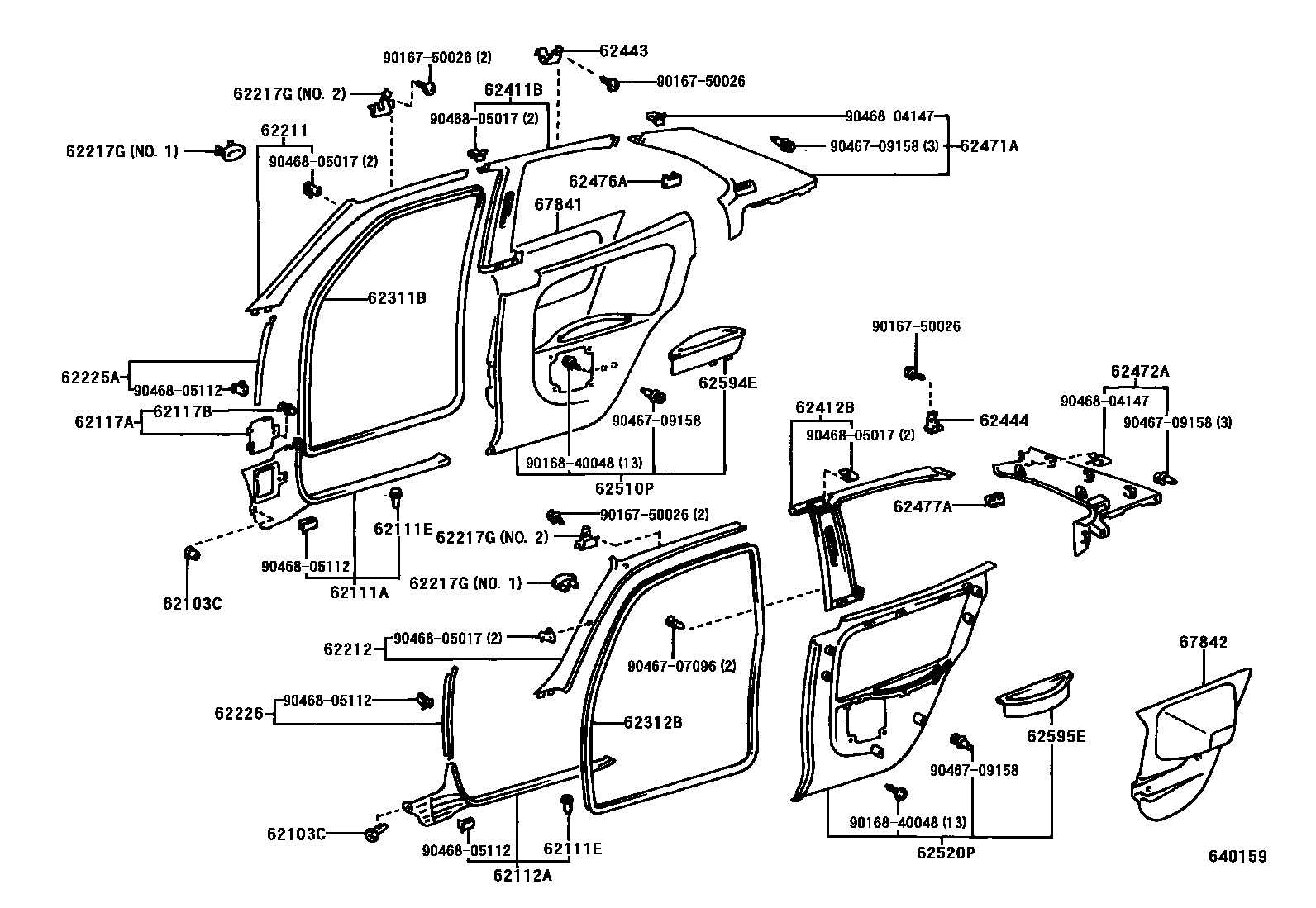

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01iAE101..SI199206-199211

BLACK,TRIM1#

sub90467-05050

main90467-05050-01iAE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)199206-199211

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-22iAE101,CE100,EE10#..GLI,STD,XL,XLI199211-199704

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-22iAE101,CE100,EE10#..GLI,STD,XL,XLI199211-199704

BLACK,TRIM1#

sub90467-05050

main90467-08160iAE101,CE100,EE10#..LB199205-199207

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12160-P0iAE101,CE100,EE101..HB..5D..RHD199206-199704

SHADOW GRAY,TRIM1#

sub62101-12160

main62101-12160-W3iAE101,CE100,EE101..HB..5D..RHD199206-199704

DARK BLUE,TRIM8#

sub62101-12160

main62101-12170-P0iAE10#,CE100,EE101..LB..RHD199205-199505

SHADOW GRAY,TRIM1#

main62101-12170-W3iAE101,CE100,EE101..LB..RHD199205-199505

DARK BLUE,TRIM8#

main62101-12190-B0iAE101,CE100,EE10#..HB..5D..LHD199206-199704

SHADOW GRAY,TRIM1#

sub62101-12190

main62101-12190-J0iAE101,CE100,EE10#..HB..5D..LHD199206-199704

DARK BLUE,TRIM8#

sub62101-12190

main62101-12200-B0iAE10#,CE100,EE101..3D..RHD199205-199704

SHADOW GRAY,TRIM1#

main62101-12200-J0iCE100,EE101..3D..RHD199205-199704

DARK BLUE,TRIM8#

main62101-12210-B0iAE10#,CE100,EE10#..3D..LHD199205-199704

SHADOW GRAY,TRIM1#

main62101-12210-J0iAE101,CE100,EE10#..3D..LHD..(STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

main62101-12220-B0iAE10#,CE100,EE10#..LB..LHD199205-199505

SHADOW GRAY,TRIM1#

main62101-12220-J0iAE101,CE100,EE10#..LB..LHD199205-199505

DARK BLUE,TRIM8#

62111ERETAINER, COWL SIDE TRIM

main67921-32010iAE10#,CE100,EE10#..3D199205

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12160-P0iAE101,CE100,EE101..HB..5D..RHD199206-199704

SHADOW GRAY,TRIM1#

sub62102-12160

main62102-12160-W3iAE101,CE100,EE101..HB..5D..RHD199206-199704

DARK BLUE,TRIM8#

sub62102-12160

main62102-12170-P0iAE10#,CE100,EE101..LB..RHD199205-199505

SHADOW GRAY,TRIM1#

main62102-12170-W3iAE101,CE100,EE101..LB..RHD199205-199505

DARK BLUE,TRIM8#

main62102-12190-B0iAE101,CE100,EE10#..HB..5D..LHD199206-199704

SHADOW GRAY,TRIM1#

sub62102-12190

main62102-12190-J0iAE101,CE100,EE10#..HB..5D..LHD199206-199704

DARK BLUE,TRIM8#

sub62102-12190

main62102-12200-B0iAE10#,CE100,EE101..3D..RHD199205-199704

SHADOW GRAY,TRIM1#

main62102-12200-J0iCE100,EE101..3D..RHD199205-199704

DARK BLUE,TRIM8#

main62102-12210-B0iAE10#,CE100,EE10#..3D..LHD199205-199704

SHADOW GRAY,TRIM1#

main62102-12210-J0iAE101,CE100,EE10#..3D..LHD..(STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

main62102-12220-B0iAE10#,CE100,EE10#..LB..LHD199205-199505

SHADOW GRAY,TRIM1#

main62102-12220-J0iAE101,CE100,EE10#..LB..LHD199205-199505

DARK BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12140-P0iAE10#,CE100,EE101..RHD199205-199605

SHADOW GRAY,TRIM1#

sub62117-12141

main62117-12140-W3iAE101,CE100,EE101..RHD..(GLI,XL,XLI)199205-199605

DARK BLUE,TRIM8#

sub62117-12141

main62117-12141-P0iAE101,CE100,EE101..RHD199605-199704

SHADOW GRAY,TRIM1#

sub62117-12141

main62117-12141-W3iAE101,CE100,EE101..RHD..(GLI,XL,XLI)199605-199704

DARK BLUE,TRIM8#

sub62117-12141

main62117-12150-B0iAE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F199205-199505

WEST GERMANY SPEC,SHADOW GRAY,TRIM1#

main62117-12150-J0iAE101..LB..LHD;CE100,EE101..LHD;AE101..HB..5F..(GLI,XLI)199205-199505

WEST GERMANY SPEC,DARK BLUE,TRIM8#

main62117-12170-B0iAE10#,CE100,EE10#..LHD199205-199505

SHADOW GRAY,TRIM1#

sub62117-12170

main62117-12170-J0iAE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI)199205-199505

DARK BLUE,TRIM8#

sub62117-12170

main62117-12171-B0iAE101,CE100,EE101..LHD199505-199704

SHADOW GRAY,TRIM1#

sub62117-12171

main62117-12171-J0iAE101,CE100,EE101..LHD..(GLI,STD,XL,XLI)199505-199704

DARK BLUE,TRIM8#

sub62117-12171

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iAE10#,CE100,EE10#199205

62211GARNISH, FRONT PILLAR, RH

main62211-12200-P0iAE101,CE100,EE10#..HB..5D199206-199704

SHADOW GRAY,TRIM1#

sub62211-12200

main62211-12200-W3iAE101,CE100,EE10#..HB..5D199206-199704

DARK BLUE,TRIM8#

sub62211-12200

main62211-12240-P0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

main62211-12240-W3iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

main62211-12260-B0iAE10#,CE100,EE10#..3D199205-199704

SHADOW GRAY,TRIM1#

main62211-12260-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62212-12200-P0iAE101,CE100,EE10#..HB..5D199206-199704

SHADOW GRAY,TRIM1#

sub62212-12200

main62212-12200-W3iAE101,CE100,EE10#..HB..5D199206-199704

DARK BLUE,TRIM8#

sub62212-12200

main62212-12240-P0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

main62212-12240-W3iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

main62212-12260-B0iAE10#,CE100,EE10#..3D199205-199704

SHADOW GRAY,TRIM1#

main62212-12260-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

62217GCLIP, FRONT PILLAR GARNISH

main62217-12010iAE10#,CE100,EE10#..LB199205-199505

NO.2

main62217-12020iAE10#,CE100,EE10#..3D199205

NO.1

main62217-12030iAE10#,CE100,EE10#..LB199205-199505

NO.1

main62217-12040iAE10#,CE100,EE10#..3D199205

NO.2

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-12010-P0iAE101,CE100,EE10#..HB..5D199206-199704

SHADOW GRAY,TRIM1#

sub62225-12010

main62225-12010-W3iAE101,CE100,EE10#..HB..5D199206-199704

DARK BLUE,TRIM8#

sub62225-12010

main62225-12020-P0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub62225-12020

main62225-12020-W3iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

sub62225-12020

main62225-12040-B0iAE10#,CE100,EE10#..3D199205-199704

SHADOW GRAY,TRIM1#

main62225-12040-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-12010-P0iAE101,CE100,EE10#..HB..5D199206-199704

SHADOW GRAY,TRIM1#

sub62226-12010

main62226-12010-W3iAE101,CE100,EE10#..HB..5D199206-199704

DARK BLUE,TRIM8#

sub62226-12010

main62226-12020-P0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub62226-12020

main62226-12020-W3iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

sub62226-12020

main62226-12040-B0iAE10#,CE100,EE10#..3D199205-199704

SHADOW GRAY,TRIM1#

main62226-12040-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12040iAE10#,CE100,EE10#..LB199205-199505

main62311-12060iAE10#,CE100,EE10#..3D199205

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12040iAE10#,CE100,EE10#..LB199205-199505

main62312-12050iAE10#,CE100,EE10#..3D199205

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12440-P0iAE101,CE100,EE10#..HB..5D199206-199704

SHADOW GRAY,TRIM1#

sub62411-12440

main62411-12440-W3iAE101,CE100,EE10#..HB..5D199206-199704

DARK BLUE,TRIM8#

sub62411-12440

main62411-12460-B0iAE10#,CE100,EE10#..3D199205-199704

SHADOW GRAY,TRIM1#

main62411-12460-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

main62411-12480-B0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub62411-12480

main62411-12480-J0iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

sub62411-12480

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12440-P0iAE101,CE100,EE10#..HB..5D199206-199704

SHADOW GRAY,TRIM1#

sub62412-12440

main62412-12440-W3iAE101,CE100,EE10#..HB..5D199206-199704

DARK BLUE,TRIM8#

sub62412-12440

main62412-12460-B0iAE10#,CE100,EE10#..3D199205-199704

SHADOW GRAY,TRIM1#

main62412-12460-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205-199704

DARK BLUE,TRIM8#

main62412-12480-B0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub62412-12480

main62412-12480-J0iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

sub62412-12480

62443JOINT, ROOF SIDE RAIL GARNISH, RH

main62443-12020iAE10#,CE100,EE10#..3D199205

62444JOINT, ROOF SIDE RAIL GARNISH, LH

main62444-12020iAE10#,CE100,EE10#..3D199205

62471AGARNISH, ROOF SIDE, INNER RH

main62470-12020-B0iAE10#,CE100,EE10#..3D199205

SHADOW GRAY,TRIM1#

main62470-12020-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205

DARK BLUE,TRIM8#

main62470-12040-B0iAE101,CE100,EE10#..HB..5D199206

SHADOW GRAY,TRIM1#

main62470-12040-J0iAE101,CE100,EE10#..HB..5D199206

DARK BLUE,TRIM8#

main62470-12050-B0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub62470-12050

main62470-12050-J0iAE101,CE100,EE10#..LB199205-199505

DARK BLUE,TRIM8#

sub62470-12050

62472AGARNISH, ROOF SIDE, INNER LH

main62480-12020-B0iAE10#,CE100,EE10#..3D199205

SHADOW GRAY,TRIM1#

main62480-12020-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205

DARK BLUE,TRIM8#

main62480-12040-B0iAE101,CE100,EE10#..HB..5D199206

SHADOW GRAY,TRIM1#

main62480-12040-J0iAE101,CE100,EE10#..HB..5D199206

DARK BLUE,TRIM8#

main62480-12050-B0iAE10#,CE100,EE10#..LB199205-199505

SHADOW GRAY,TRIM1#

sub62480-12050

main62480-12050-J0iAE101,CE100,EE10#..LB199206-199505

DARK BLUE,TRIM8#

sub62480-12050

62476ACAP, ROOF SIDE INNER GARNISH, RH

main62476-12020-B1iAE10#,CE100,EE10#..3D199205

SHADOW GRAY,TRIM1#

sub62476-12020

main62476-12020-J1iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205

DARK BLUE,TRIM8#

sub62476-12020

62477ACAP, ROOF SIDE INNER GARNISH, LH

main62477-12010-B1iAE10#,CE100,EE10#..3D199205

SHADOW GRAY,TRIM1#

sub62477-12010

main62477-12010-J1iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205

DARK BLUE,TRIM8#

sub62477-12010

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-1A610-B1iAE101,CE100,EE10#..3D..LHD..(XL,XLI)199205-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12010

sub90168-40048

sub90467-09158

main62510-1A610-J1iAE101,CE100,EE101..3D..(XL,XLI)199205-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12010

sub90168-40048

sub90467-09158

main62510-1A630-B0iAE101..SI199211-199505

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12020

sub90168-40048

sub90467-09158

main62510-1A650-B0iCE100..3D..XL;EE101..3D..RHD..XLI;EE101..3D..LHD..5F..XLI199205

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12030

sub90168-40048

sub90467-09158

main62510-1A650-B0iCE100,EE101..STD199205

W/O(REAR SEAT),SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12030

sub90168-40048

sub90467-09158

main62510-1A650-J0iCE100,EE101..STD199205

W/O(REAR SEAT),DARK BLUE,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12030

sub90168-40048

sub90467-09158

main62510-1A650-J0iCE100..3D..XL;EE101..3D..RHD..XLI;EE101..3D..LHD..5F..XLI199205

DARK BLUE,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12030

sub90168-40048

sub90467-09158

main62510-1A660-B0iAE101,CE100,EE10#..3D..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12040

sub90168-40048

sub90467-09158

main62510-1A660-J0iAE101,CE100,EE10#..3D..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12040

sub90168-40048

sub90467-09158

main62510-1A661-B1iAE101,CE100,EE10#..3D..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12041

sub90168-40048

sub90467-09158

main62510-1A661-J1iAE101,CE100,EE10#..3D..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12041

sub90168-40048

sub90467-09158

main62510-1A662-B2iAE101,CE100,EE101..3D..(XL,XLI)199505-199605

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12042

sub90168-40048

sub90467-09158

main62510-1A662-J2iAE101,CE100,EE101..3D..(XL,XLI)199505-199605

BLUE/GRAY,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12042

sub90168-40048

sub90467-09158

main62510-1A670-B0iEE101..3D..GLI199205-199505

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12050

sub90168-40048

sub90467-09158

main62510-1A670-J1iEE101..3D..GLI199205-199505

DARK BLUE,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12050

sub90168-40048

sub90467-09158

main62510-1A671-B1iEE101..GLI199505

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12051

sub90168-40048

sub90467-09158

main62510-1A671-B1iEE101..3D..RHD..5F..XLI199611-199704

'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12051

sub90168-40048

sub90467-09158

main62510-1A671-B1iAE101,CE100,EE101..3D..LHD..(XL,XLI)199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12051

sub90168-40048

sub90467-09158

main62510-1A671-J2iEE101..GLI199505

BLUE/GRAY,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12051

sub90168-40048

sub90467-09158

main62510-1A671-J2iAE101,CE100,EE101..3D..LHD..(XL,XLI)199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),BLUE/GRAY,TRIM8#

sub62511-12290

sub62594-12080

sub75307-12051

sub90168-40048

sub90467-09158

main62510-1A680-B0iEE101..3D..RHD..5F..XLI199512-199604

'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12060

sub90168-40048

sub90467-09158

main62510-1A680-B0iAE101..SI199205-199505

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12060

sub90168-40048

sub90467-09158

main62510-1A680-B0iCE100,EE101..3D..LHD..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1

sub62511-12290

sub62594-12080

sub75307-12060

sub90168-40048

sub90467-09158

main62510-1A680-B0iCE100,EE101..3D..LHD..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1

sub62511-12290

sub62594-12080

sub75307-12060

sub90168-40048

sub90467-09158

main62510-1A680-B0iAE101,CE100,EE101..3D..LHD..(3FC,5F)..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1

sub62511-12290

sub62594-12080

sub75307-12060

sub90168-40048

sub90467-09158

main62510-1A680-B0iAE101,CE100,EE101..3D199412-199504

95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12060

sub90168-40048

sub90467-09158

main62510-1A680-B0iEE101..3D..LHD..5F..XLI199601

50TH ANNIVERSARY,SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12060

sub90168-40048

sub90467-09158

main62510-1A700-B0iAE101,CE100,EE101..3D..(XL,XLI)199605

SHADOW GRAY,TRIM1#

sub62511-12290

sub62594-12080

sub75307-12070

sub90168-40048

sub90467-09158

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-1A610-B0iAE102..3D199211-199505

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12030

sub90168-40048

sub90467-09158

main62520-1A630-B0iCE100..3D..XL;EE101..3D..RHD..XLI;EE101..3D..LHD..5F..XLI199205

W/O(REAR SEAT),SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12040

sub90168-40048

sub90467-09158

main62520-1A630-B0iCE100..3D..XL;EE101..3D..RHD..XLI;EE101..3D..LHD..5F..XLI199205

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12040

sub90168-40048

sub90467-09158

main62520-1A630-J0iCE100..3D..XL;EE101..3D..RHD..XLI;EE101..3D..LHD..5F..XLI199205

W/O(REAR SEAT),DARK BLUE,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12040

sub90168-40048

sub90467-09158

main62520-1A630-J0iCE100..3D..XL;EE101..3D..RHD..XLI;EE101..3D..LHD..5F..XLI199205

DARK BLUE,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12040

sub90168-40048

sub90467-09158

main62520-1A640-B0iAE101,CE100,EE10#..3D..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12050

sub90168-40048

sub90467-09158

main62520-1A640-J0iAE101,CE100,EE10#..3D..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12050

sub90168-40048

sub90467-09158

main62520-1A641-B1iAE101,CE100,EE10#..3D..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12051

sub90168-40048

sub90467-09158

main62520-1A641-J1iAE101,CE100,EE10#..3D..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12051

sub90168-40048

sub90467-09158

main62520-1A642-B2iAE101,CE100,EE101..3D..(XL,XLI)199505-199605

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12052

sub90168-40048

sub90467-09158

main62520-1A642-J2iAE101,CE100,EE101..3D..(XL,XLI)199505-199605

BLUE/GRAY,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12052

sub90168-40048

sub90467-09158

main62520-1A650-B0iEE101..3D..GLI199205-199505

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12060

sub90168-40048

sub90467-09158

main62520-1A650-J1iEE101..3D..GLI199205-199505

DARK BLUE,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12060

sub90168-40048

sub90467-09158

main62520-1A651-B1iEE101..3D..RHD..5F..XLI199611-199704

'97 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12061

sub90168-40048

sub90467-09158

main62520-1A651-B1iEE101..GLI199505

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12061

sub90168-40048

sub90467-09158

main62520-1A651-B1iAE101,CE100,EE101..3D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12061

sub90168-40048

sub90467-09158

main62520-1A651-J2iAE101,CE100,EE101..3D..LHD..(XL,XLI)199605

W(FULL FABRIC GL(BA**/BB**)),BLUE/GRAY,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12061

sub90168-40048

sub90467-09158

main62520-1A651-J2iEE101..GLI199505

BLUE/GRAY,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12061

sub90168-40048

sub90467-09158

main62520-1A660-B0iAE101,CE100,EE101..3D..LHD..(3FC,5F)..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(NORWAY,FINLAND,SWEDEN),SHADOW GRAY,TRIM1

sub62512-12270

sub62595-12030

sub75308-12070

sub90168-40048

sub90467-09158

main62520-1A660-B0iCE100,EE101..3D..LHD..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1

sub62512-12270

sub62595-12030

sub75308-12070

sub90168-40048

sub90467-09158

main62520-1A660-B0iCE100,EE101..3D..LHD..(XL,XLI)199511-199604

'96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1

sub62512-12270

sub62595-12030

sub75308-12070

sub90168-40048

sub90467-09158

main62520-1A660-B0iEE101..3D..RHD..5F..XLI199512-199604

'96 SPRING CAMPAIGN(UK),SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12070

sub90168-40048

sub90467-09158

main62520-1A660-B0iAE101..SI199205-199505

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12070

sub90168-40048

sub90467-09158

main62520-1A660-B0iAE101,CE100,EE101..3D199412-199504

95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12070

sub90168-40048

sub90467-09158

main62520-1A660-B0iEE101..3D..LHD..5F..XLI199601

50TH ANNIVERSARY,SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12070

sub90168-40048

sub90467-09158

main62520-1A670-B0iAE101,CE100,EE10#..3D..(XL,XLI)199205-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12020

sub90168-40048

sub90467-09158

main62520-1A670-J0iAE101,CE100,EE10#..3D..(XL,XLI)199205-199605

W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8#

sub62512-12270

sub62595-12030

sub75308-12020

sub90168-40048

sub90467-09158

main62520-1A680-B0iAE101,CE100,EE101..3D..(XL,XLI)199605

SHADOW GRAY,TRIM1#

sub62512-12270

sub62595-12030

sub75308-12090

sub90168-40048

sub90467-09158

62594EPOCKET, QUARTER TRIM, RH

main62594-12080-B0iAE10#,CE100,EE10#..3D199205

SHADOW GRAY,TRIM1#

main62594-12080-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205

DARK BLUE,TRIM8#

62595EPOCKET, QUARTER TRIM, LH

main62595-12030-B0iAE10#,CE100,EE10#..3D199205

SHADOW GRAY,TRIM1#

main62595-12030-J0iAE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)199205

DARK BLUE,TRIM8#

67841COVER, QUARTER SERVICE HOLE, NO.1 RH

main67841-12260iAE10#,CE100,EE10#..3D199205-199305

67842COVER, QUARTER SERVICE HOLE, NO.1 LH

main67842-12090iAE10#,CE100,EE10#..3D199205-199305

9016750026

main90167-50026

9016840048

main90168-40048

9046707096

main90467-07096

9046709158

main90467-09158

9046804147

main90468-04147

9046805017

main90468-05017

9046805112

main90468-05112

34 parts on this diagram · 3 diagrams in section
