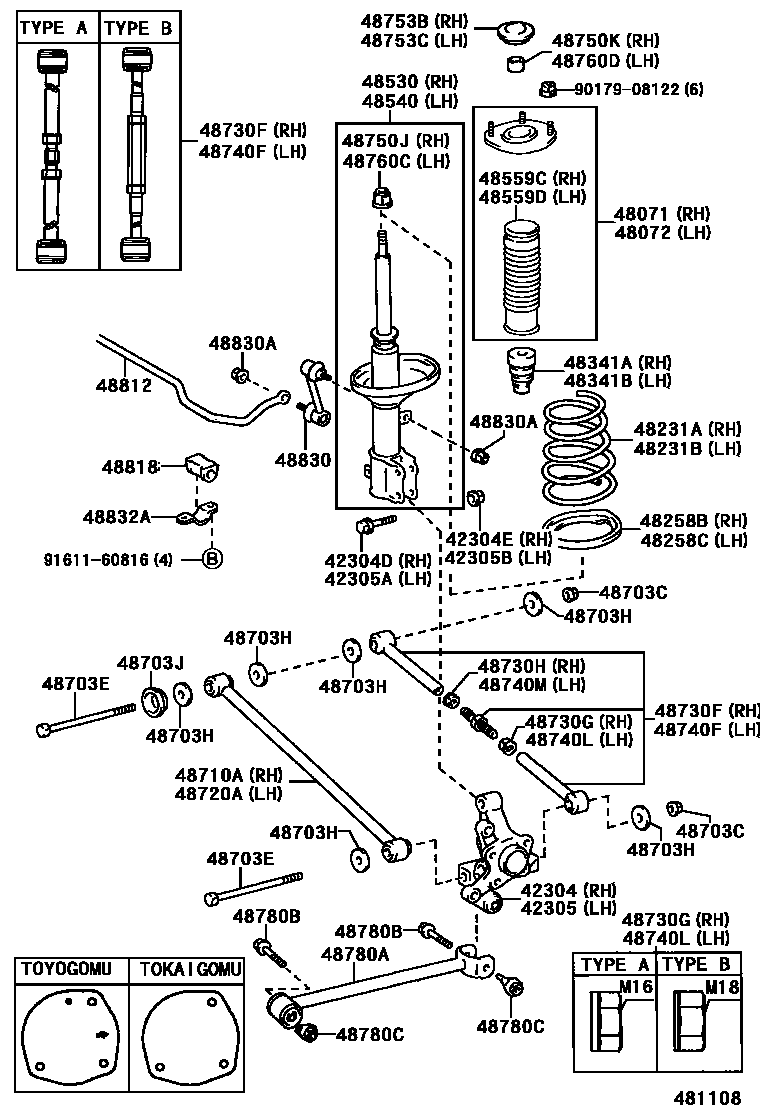

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
W(*66)
W(*66)
42304DBOLT (FOR REAR AXLE CARRIER RH)
sub90105-12236
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
W(*66)
W(*66)
42305ABOLT (FOR REAR AXLE CARRIER LH)
sub90105-12236
42305BNUT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
W/O(RR SEAT)
ROUGH ROAD PACKAGE 1
ROUGH ROAD PACKAGE 1
48231BSPRING, COIL, REAR LH
W/O(RR SEAT)
ROUGH ROAD PACKAGE 1
ROUGH ROAD PACKAGE 1
48341ABUMPER, REAR SPRING, NO.1 RH
ROUGH ROAD PACKAGE 1
48341BBUMPER, REAR SPRING, NO.1 LH
ROUGH ROAD PACKAGE 1
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48703CNUT(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX225-32
*14-1.5PX222-29
48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)
48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
sub48730-12140
sub48730-12120
sub48730-12090
sub48730-12110
sub48730-12150
48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)
TYPE A:REFER TO ILLUSTRATION
48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)
TYPE A:REFER TO ILLUSTRATION
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
sub48730-12140
sub48730-12120
sub48730-12090
sub48730-12110
sub48730-12150
W(*66)
48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)
TYPE A:REFER TO ILLUSTRATION
48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)
TYPE A:REFER TO ILLUSTRATION
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE
CARRIER SIDE
48830LINK ASSY, REAR STABILIZER
48830ANUT(FOR REAR STABILIZER LINK)
48832ABRACKET, REAR STABILIZER BAR, NO.1
9017908122
main90179-08122
9161160816
main91611-60816
46 parts on this diagram · 1 diagram in section
