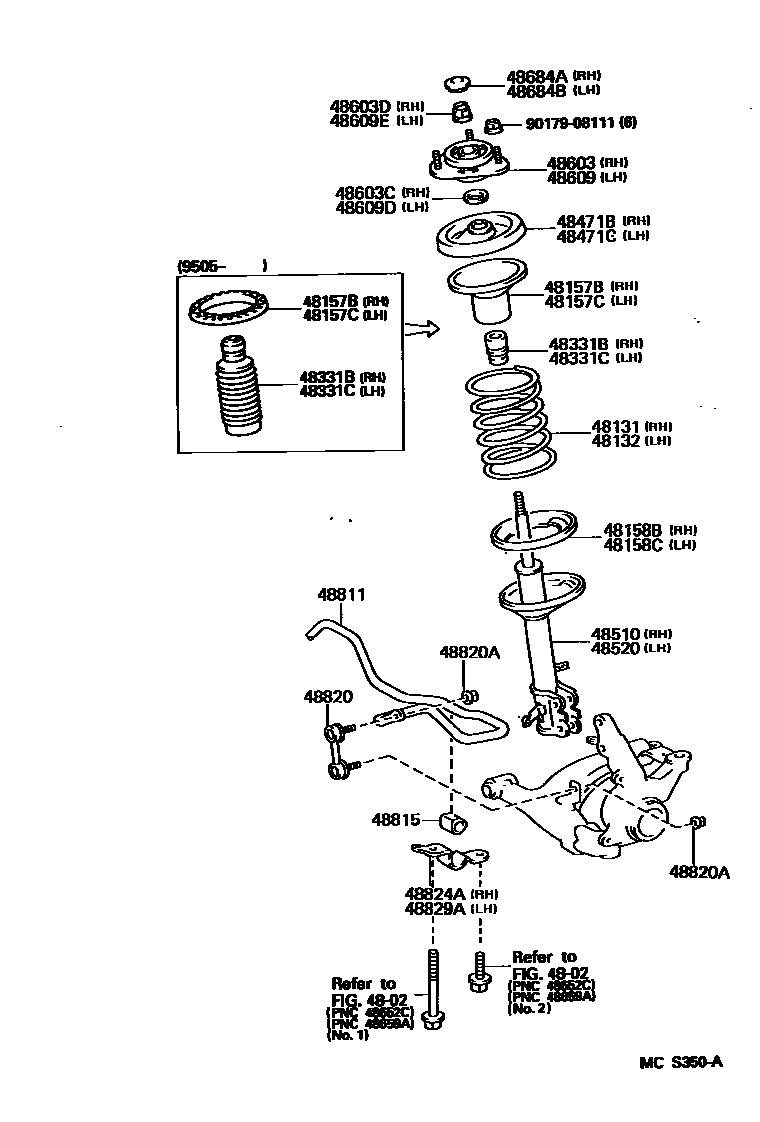

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-1K380iAE101..LHD..5F;EE101..RHD..3FC199205-199704

main48131-1K400iCE100..RHD;AE101..RHD..4FC199205-199704

main48131-1K530iEE101..RHD..5F;EE101..LHD..3FC199205-199704

main48131-1K540iCE100..LHD;AE101..RHD..5F;AE101..LHD..4FC199205-199704

main48131-1K700iEE10#..LHD..5F199205-199704

main48131-1K870iAE102..LHD199211-199505

main48131-1L200iAE102..RHD199211-199505

main48131-1L270iEE100199205-199505

ROUGH ROAD PACKAGE 1

48132SPRING, FRONT COIL, LH

main48131-1K380iAE101..RHD..5F;EE101..LHD..3FC199205

main48131-1K400iCE100..LHD;AE101..LHD..4FC199205

main48131-1K530iEE10#..LHD..5F;EE101..RHD..3FC199205

main48131-1K540iCE100..RHD;AE101..LHD..5F;AE101..RHD..4FC199205

main48131-1K700iEE101..RHD..5F199205

main48131-1K870iAE102..RHD199211-199505

main48131-1L200iAE102..LHD199211-199505

main48131-1L290iEE100199205-199505

ROUGH ROAD PACKAGE 1

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12060iAE10#,CE100,EE10#199205-199505

main48157-12070iAE101,CE100,EE101199505

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12060iAE10#,CE100,EE10#199205-199505

main48157-12070iAE101,CE100,EE101199505

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE10#,CE100,EE10#199205

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iAE10#,CE100,EE10#199205

48331BBUMPER, FRONT SPRING, RH

main48331-12120iAE101,EE10#199205-199505

main48331-12130iAE102,CE100199205-199505

ROUGH ROAD PACKAGE 1

main48331-12140iAE101,EE101199505

main48331-12150iCE100199505

48331CBUMPER, FRONT SPRING, LH

main48331-12120iAE101,EE10#199205-199505

main48331-12130iAE102,CE100199205-199505

ROUGH ROAD PACKAGE 1

main48331-12140iAE101,EE101199505

main48331-12150iCE100199505

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iAE101,CE100,EE101199505

(L)

main48044-12090iAE10#,CE100,EE10#199205

(J)

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iAE101,CE100,EE101199505

(L)

main48044-12090iAE10#,CE100,EE10#199205

(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12750iEE100199205-199505

main48510-12790iEE100199205-199505

ROUGH ROAD PACKAGE 1

sub48510-19475

main48510-12840iAE101,EE101199205

main48510-12850iAE102199211-199505

sub48510-87687

sub48331-12150

main48510-1A010iCE100199205

sub48510-80232

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12610iAE101,EE101199205

main48520-12630iEE100199205-199505

main48520-12670iEE100199205-199505

ROUGH ROAD PACKAGE 1

sub48520-19195

main48520-12720iAE102199211-199505

sub48520-49225

sub48331-12150

main48520-12770iCE100199205

sub48520-80055

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12250iEE100199205-199505

ROUGH ROAD PACKAGE 1

sub48609-12350

main48609-12270iEE100199205-199505

sub48609-12330

main48609-12290iAE10#,CE100,EE101199205-199505

sub48609-12340

main48609-12340iAE101,CE100,EE101199505

sub48609-12341

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE10#,CE100,EE10#199205

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE10#,CE100,EE10#199205

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12250iEE100199205-199505

ROUGH ROAD PACKAGE 1

sub48609-12350

main48609-12270iEE100199205-199505

sub48609-12330

main48609-12290iAE10#,CE100,EE101199205-199505

sub48609-12340

main48609-12340iAE101,CE100,EE101199505

sub48609-12341

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE10#,CE100,EE10#199205

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE10#,CE100,EE10#199205

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE101,CE100,EE101199602

main48684-32010iAE10#,CE100,EE10#199205-199602

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE101,CE100,EE101199602

main48684-32010iAE10#,CE100,EE10#199205-199602

48811BAR, STABILIZER, FRONT

main48811-12720iAE101,CE100,EE101199205

main48811-12770iAE102199211-199505

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12220iAE101,CE100,EE101199205

main48815-12230iAE102199211-199505

48820LINK ASSY, FRONT STABILIZER

main48820-20021iAE102199205-199505

main48820-33010iAE101,CE100,EE101199312

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE10#,CE100,EE101199205

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iAE10#,CE100,EE101199205

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iAE10#,CE100,EE101199205

9017908111

main90179-08111

28 parts on this diagram · 1 diagram in section
