STEERING WHEEL

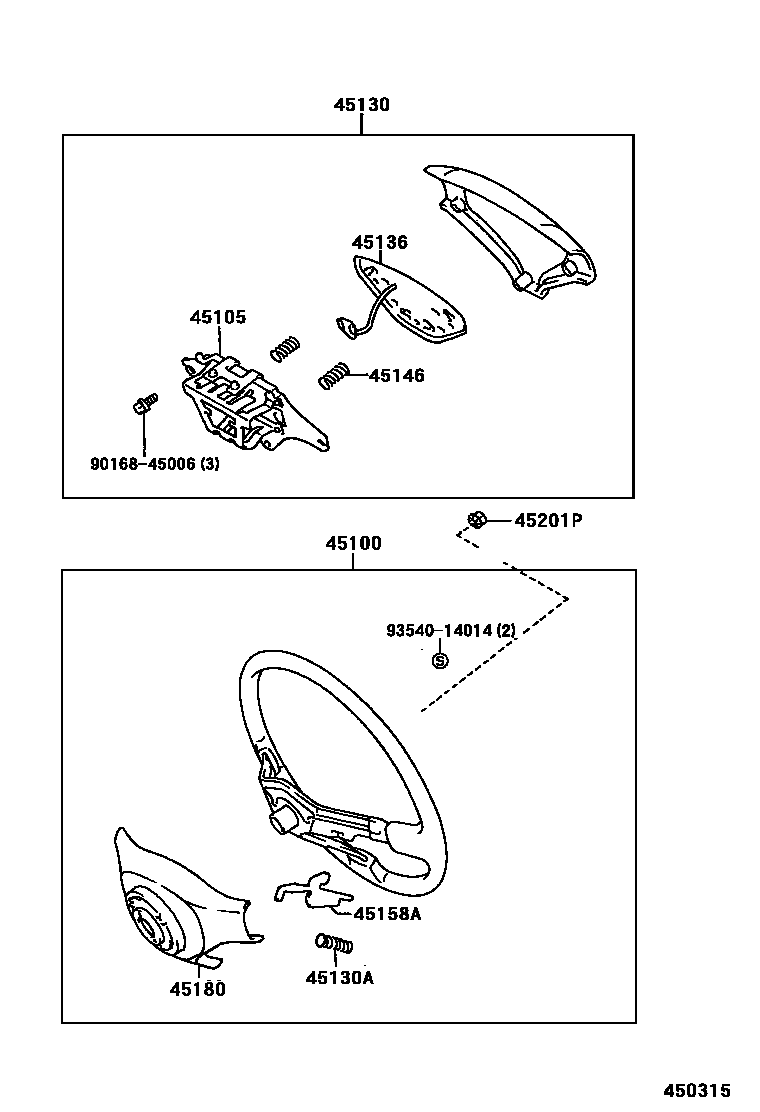

Parts diagram
45100WHEEL ASSY, STEERING
main45100-12620-P0i199205-199309
3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-12621
main45100-12620-W3i199205-199309
3-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-12621
main45100-12621-P0i199309-199505
3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-12790
main45100-12621-W3i199309-199505
3-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-12790
main45100-12650-P0i199211-199505
3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
sub45100-12650
main45100-12650-P0i199412-199504
3-SPOKE,LEATHER,95 SPRING CAMPAIGN(FRANCE,BELGIUM),SHADOW GRAY,TRIM1#
sub45100-12650
main45100-12780-B0i199505-199704
4-SPOKE,URETHANE,W(ELECTRICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45100-12780
main45100-12780-J0i199505-199704
4-SPOKE,URETHANE,W(ELECTRICAL TYPE *80),DARK BLUE,TRIM8#
sub45100-12780
main45100-12790-B0i199505-199704
3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-12790
main45100-12790-J0i199505-199704
3-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-12790
main45100-12810-B0i199505-199704
3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
sub45100-12810
main45100-12820-B0i199505-199607
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8#
sub45100-12820
main45100-12820-B0i199505-199607
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45100-12820
main45100-12820-J0i199505-199607
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM86
sub45100-12820
main45100-12880-B0i199607-199704
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8#
sub45100-12880
main45100-12880-B0i199607-199704
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45100-12880
main45100-2B230-B0i199205-199309
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45100-2B231
main45100-2B230-J0i199205-199309
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM8#
sub45100-2B231
main45100-2B231-B0i199309-199505
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45100-2B231
main45100-2B231-B0i199309-199505
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8#
sub45100-2B231
main45100-2B231-J0i199309-199505
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM86
sub45100-2B231
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-12140i199205-199505
sub45105-12210
main45105-12160i199412-199504
95 SPRING CAMPAIGN(FRANCE,BELGIUM)
main45105-12160i199211-199505
main45105-12210i199505
45130BUTTON ASSY, HORN
main45130-12681-P0i199401-199505
SHADOW GRAY,TRIM1#
sub45130-12870
main45130-12681-W3i199401-199505
DARK BLUE,TRIM8#
sub45130-12870
main45130-12710-P0i199401-199505
SHADOW GRAY,TRIM1#
sub45130-12710
main45130-12710-P0i199412-199504
95 SPRING CAMPAIGN(FRANCE,BELGIUM),SHADOW GRAY,TRIM1#
sub45130-12710
main45130-12722-P0i199205-199305
W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45130-18020
main45130-12722-W3i199205-199305
W(MECHANICAL TYPE *80),DARK BLUE,TRIM8#
sub45130-18020
main45130-12723-P0i199305-199309
W(MECHANICAL TYPE *80),GRAY,TRIM1#
sub45130-12724
main45130-12723-W3i199305-199309
W(MECHANICAL TYPE *80),DARK BLUE,TRIM8#
sub45130-12724
main45130-12724-P0i199309-199505
SHADOW GRAY,TRIM1#,8#
sub45130-12724
main45130-12724-P0i199309-199505
W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45130-12724
main45130-12724-W3i199309-199505
W(MECHANICAL TYPE *80),DARK BLUE,TRIM86
sub45130-12724
main45130-12740-B0i199205-199309
SHADOW GRAY,TRIM1#
sub45130-12741
main45130-12740-J0i199205-199309
DARK BLUE,TRIM8#
sub45130-12741
main45130-12741-B0i199309-199401
SHADOW GRAY,TRIM1#
sub45130-12681
main45130-12741-J0i199309-199401
DARK BLUE,TRIM8#
sub45130-12681
main45130-12750-B0i199211-199401
SHADOW GRAY,TRIM1#
main45130-12860-B0i199505-199704
W(ELECTRICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45130-12860
main45130-12860-J0i199505-199704
W(ELECTRICAL TYPE *80),DARK BLUE,TRIM8#
sub45130-12860
main45130-12870-B0i199508-199704
SHADOW GRAY,TRIM1#
sub45130-12H00
sub45130-12870
main45130-12870-J0i199505-199704
DARK BLUE,TRIM8#
sub45130-12H00
sub45130-12870
main45130-1A010-B0i199505-199607
W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8#
sub45130-33052
main45130-1A010-B0i199505-199607
W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45130-33052
main45130-1A010-J0i199505-199607
W(MECHANICAL TYPE *80),DARK BLUE,TRIM86
sub45130-33052
main45130-1A010-J0i199505-199607
W(MECHANICAL TYPE *80),DARK BLUE,TRIM8#
sub45130-33052
main45130-1A100-B0i199607-199704
W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
sub45130-1A101
main45130-1A100-B0i199608-199704
W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8#
sub45130-1A101
main45130-1A100-J0i199607-199608
W(MECHANICAL TYPE *80),DARK BLUE,TRIM8#
sub45130-1A101
main45130-1A100-J0i199608-199704
W(MECHANICAL TYPE *80),DARK BLUE,TRIM86
sub45130-1A101
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
main90501-09112i199205
45136PLATE, HORN BUTTON CONTACT
main45136-12230i199205
45146SPRING, HORN BUTTON CONTACT
main45146-20140i199205
main45146-20230i199205-199212
W(MECHANICAL TYPE *80)
main45146-20230i199211-199505
45158ASOCKET, HORN BUTTON JOINT
main45158-12050i199205
45180COVER SUB-ASSY, STEERING WHEEL
main45180-12120-B0i199205-199505
SHADOW GRAY,TRIM1#
sub45180-12120
main45180-12120-J0i199205-199505
DARK BLUE,TRIM8#
sub45180-12120
main45180-12140-B0i199412-199504
95 SPRING CAMPAIGN(FRANCE,BELGIUM),SHADOW GRAY,TRIM1#
sub45180-12140
main45180-12140-B0i199211-199505
SHADOW GRAY,TRIM1#
sub45180-12140
main45180-12210-B0i199505
SHADOW GRAY,TRIM1#
sub45180-12210
main45180-12210-J0i199505
DARK BLUE,TRIM8#
sub45180-12210
45201PNUT, STEERING WHEEL SET
main90179-12071i199306
main90179-12086i199205-199306
9016845006
main90168-45006
9354014014
main93540-14014
