FRONT AXLE HUB

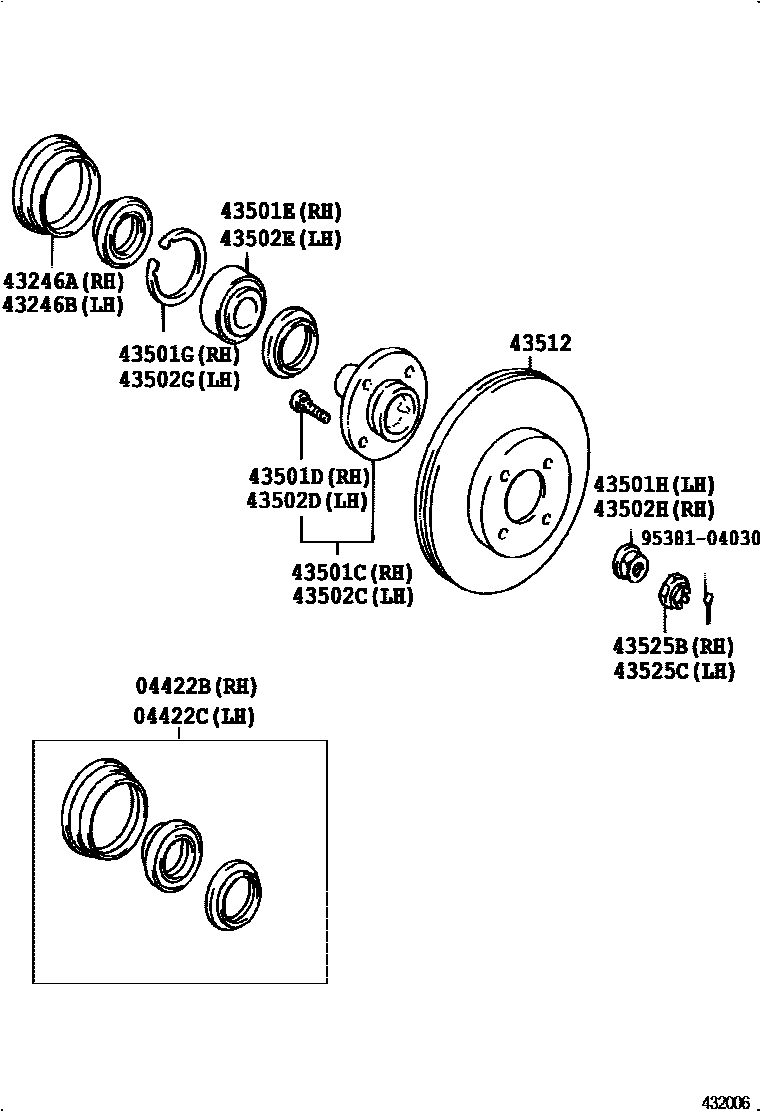

Parts diagram
04422BSEAL KIT, FRONT AXLE OIL, RH
main04422-12050i199205-199505
W(*66)
sub04422-12100
main04422-12070i199205-199505
main04422-12091i199505-199704
main04422-12100i199505-199704
W(*66)
04422CSEAL KIT,FRONT AXLE OIL, LH
main04422-12050i199205-199505
W(*66)
sub04422-12100
main04422-12070i199205-199505
main04422-12091i199505-199704
main04422-12100i199505-199704
W(*66)
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-12010i199205-199505
main43246-12020i199205-199704
W(*66)
main43246-12040i199505-199704
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-12010i199205-199505
main43246-12020i199205-199704
W(*66)
main43246-12040i199505-199704
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-12090i199205-199704
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049i199205-199704
43501EBEARING (FOR FRONT AXLE HUB RH)
main90363-38006i199308-199704
main90369-38011i199205-199308
sub90363-38006
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-77001i199205-199704
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90179-22020i199205
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-12090i199205-199704
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049i199205-199704
43502EBEARING (FOR FRONT AXLE HUB LH)
main90363-38006i199308-199704
main90369-38011i199205-199308
sub90363-38006
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-77001i199205-199704
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90179-22020i199205
43512DISC, FRONT
main43512-12330i199205-199505
main43512-12550i199205
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-20030i199205
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-20030i199205
9538104030
main95381-04030

18 parts on this diagram · 1 diagram in section
