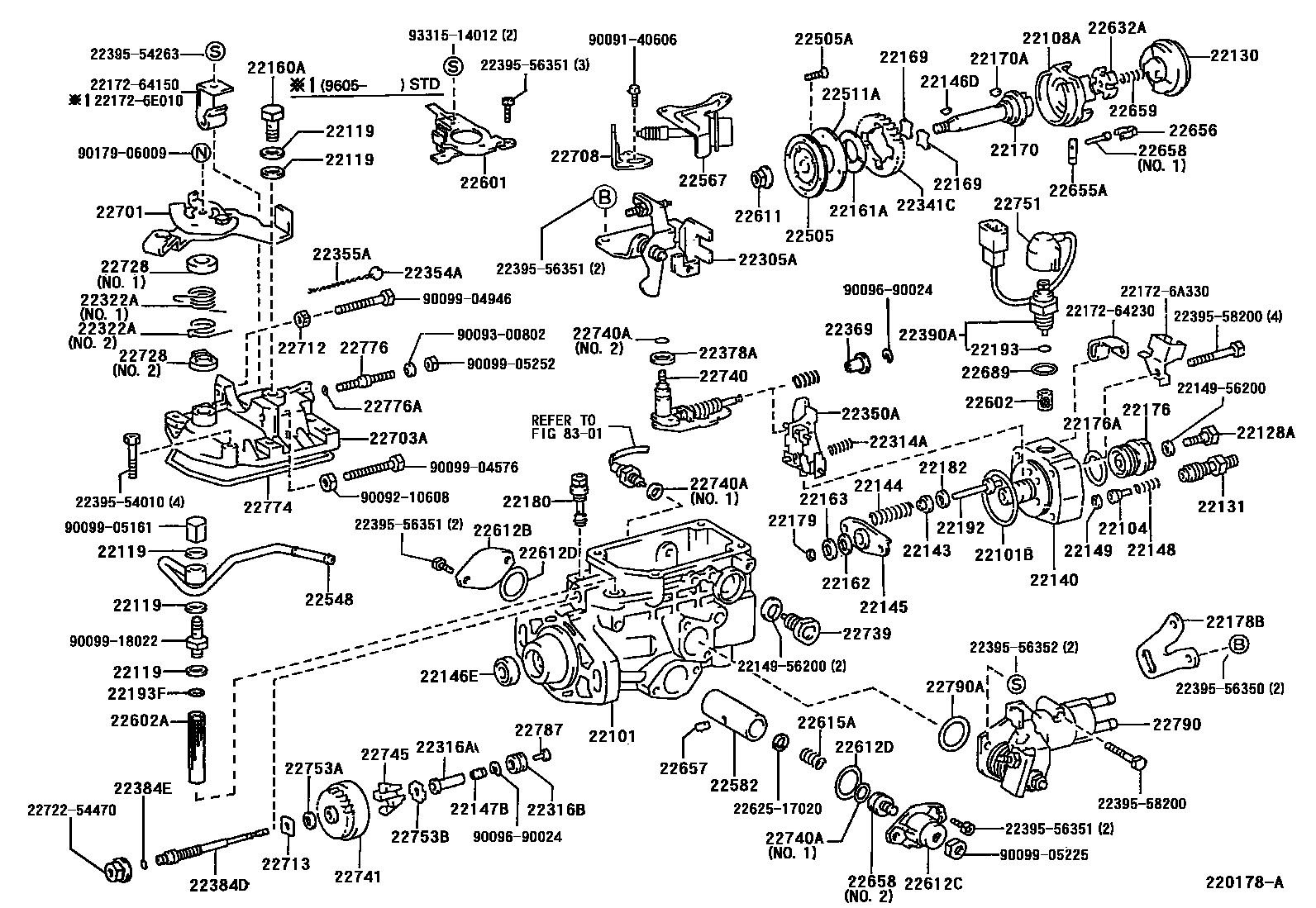

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
W(POWER STEERING)
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160ASCREW SUB-ASSY, OVER FLOW, NO.2
22161AWASHER, DRIVE SHAFT
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22305AIDLE-UP SUB-ASSY
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.95
ID=0.85
ID=0.90
ID=1.1,EXHAUST EMISSION CONTROL (US'87)
ID=0.80
ID=1.10,EXHAUST EMISSION CONTROL (US'87)
ID=0.95
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER),NO.1
NO.1
NO.2
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER),NO.2
NO.1
NO.2
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22369SEAT, GOVERNOR SPRING
sub22369-6A250
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22548NIPPLE, SWIVEL
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
22567DASH POT, INJECTION PUMP
22601BRACKET SUB-ASSY, IDLE UP
EXHAUST EMISSION CONTROL (US'87)
EXHAUST EMISSION CONTROL (US'87)
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
W(AIR CONDITIONER OR POWER STEERING) OR COLD SPEC
sub90099-14105
sub22193-17840
22615ASPRING, TIMER OUTER
K=1.7,L=27.9
K=0.15,L=32.5
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.2
W(AIR CONDITIONER OR POWER STEERING) OR COLD SPEC,NO.1
NO.1
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
EXHAUST EMISSION CONTROL (US'87),MARK 417
EXHAUST EMISSION CONTROL (US'87),MARK 418
MARK 421
MARK 422
MARK 628
MARK 629
22703ACOVER SUB-ASSY, GOVERNOR
22708LEVER, ADJUSTING
22712NUT, ROCK
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
EXHAUST EMISSION CONTROL (US'87)
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
NO.3
NO.2
NO.1
W(POWER STEERING),NO.1
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
W(POWER STEERING)
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22787PLUG, GOVERNOR SLEEVE
L=3.3
L=3.4
L=3.0
L=3.1
L=3.2
L=2.2
L=2.3
L=2.4
L=2.5
L=2.6
L=2.7
L=2.8
L=2.9
22790COVER SUB-ASSY, TIMER
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
22790ARING, O(FOR TIMER COVER)
W(AIR CONDITIONER OR POWER STEERING) OR COLD SPEC
sub90099-14105
sub22193-17840
8301
2214956200GASKET, DELIVERY VALVE
main22149-56200
2217264150CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64150
2217264230CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64230
221726A330CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6A330
221726E010CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6E010
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2262517020WASHER, TIMER SENSOR ADJUSTING
main22625-17020
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009140606
main90091-40606
9009210608
main90092-10608
9009300802
main90093-00802
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906009
main90179-06009
9331514012
main93315-14012
114 parts on this diagram · 1 diagram in section
