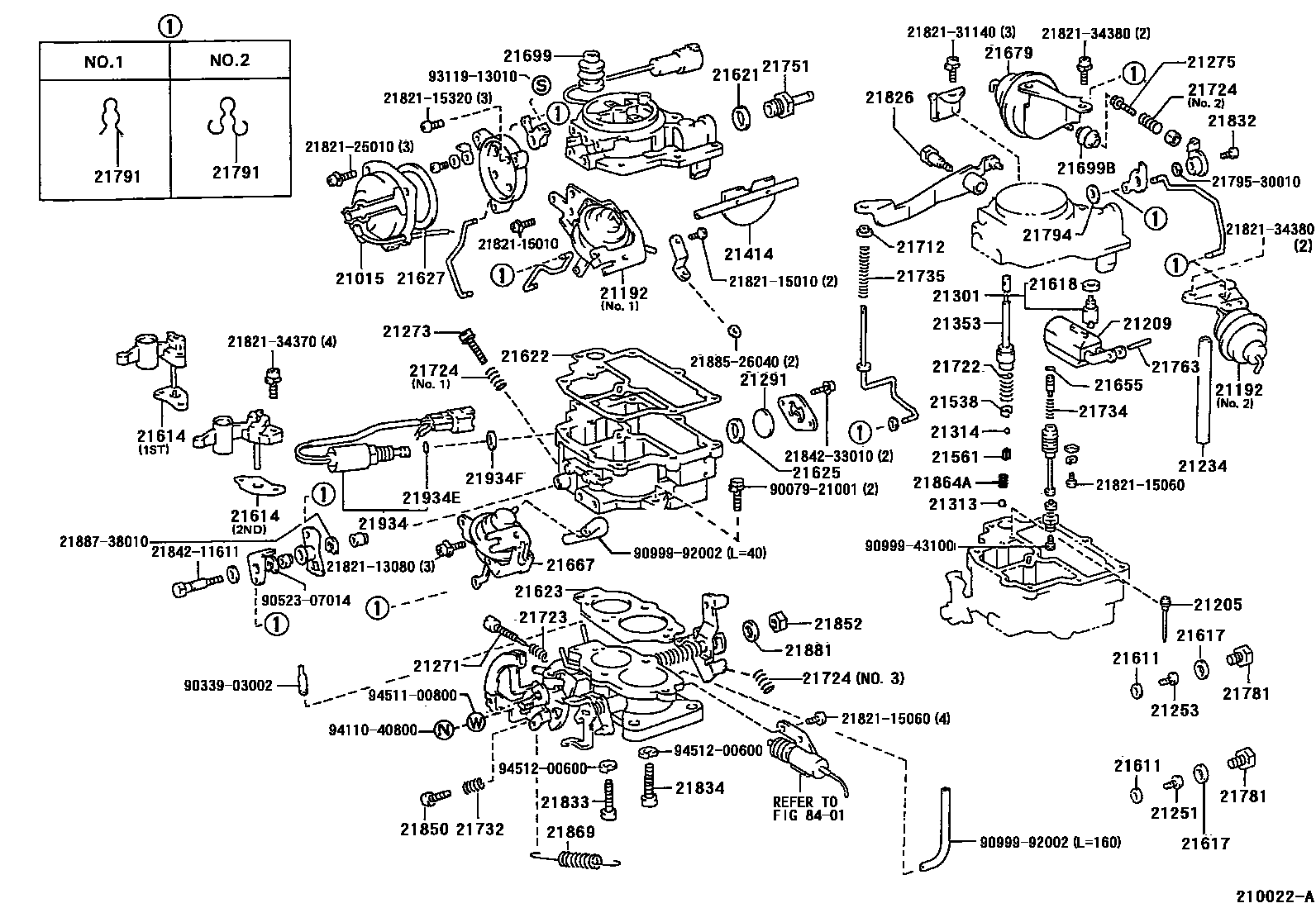

CARBURETOR
21015HOUSING SUB-ASSY, COIL
21205JET SUB-ASSY, SLOW
sub21205-1E110
21209FLOAT SUB-ASSY
21234PIPE OR HOSE
sub90079-71001
21251JET, 1ST MAIN
21253JET, 2ND MAIN
21271SCREW, IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
sub21314-11020
21353PLUNGER, PUMP
21414SHAFT, CHOKE
21538RETAINER, BALL CHECK
21561WEIGHT, PUMP DISCHARGE
21611GASKET, MAIN JET
21614GASKET, VENTURI
2ND
1ST
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
21623GASKET, BODY FLANGE
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
sub21627-28150
21655RING, O(FOR LIFTER ROD)
21679POSITIONER
21699BOOT(FOR PUMP PLUNGER)
21699BBOOT(FOR COMPENSATOR)
21712BUSH, SLIDING ROD
sub21712-61020
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
NO.2
NO.1
21732SPRING, THROTTLE ADJUSTING
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
N0.2(GREEN)
21794RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21826SCREW, PUMP ARM SET
21832SCREW(FOR CHOKE LEVER ADAPTER SET)
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21850SCREW, THROTTLE SWITCH ADJUSTING
21852NUT, THROTTLE LEVER SET
21864ASPRING(FOR PUMP DISCHARGE WEIGHT)
21869SPRING(FOR MAIN JET)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
8401
2179530010RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT)
main21795-30010
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115060SCREW, 2ND THROTTLE VALVE SET
main21821-15060
2182115320SCREW, 2ND THROTTLE VALVE SET
main21821-15320
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134370SCREW, 2ND THROTTLE VALVE SET
main21821-34370
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
2184211611SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-11611
2184233010SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-33010
2188526040
main21885-26040
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9007921001
main90079-21001
9033903002
main90339-03002
9052307014
main90523-07014
9099943100
main90999-43100
9099992002
main90999-92002
9311913010
main93119-13010
9411040800
main94110-40800
9451100800
main94511-00800
9451200600
main94512-00600
79 parts on this diagram · 1 diagram in section
