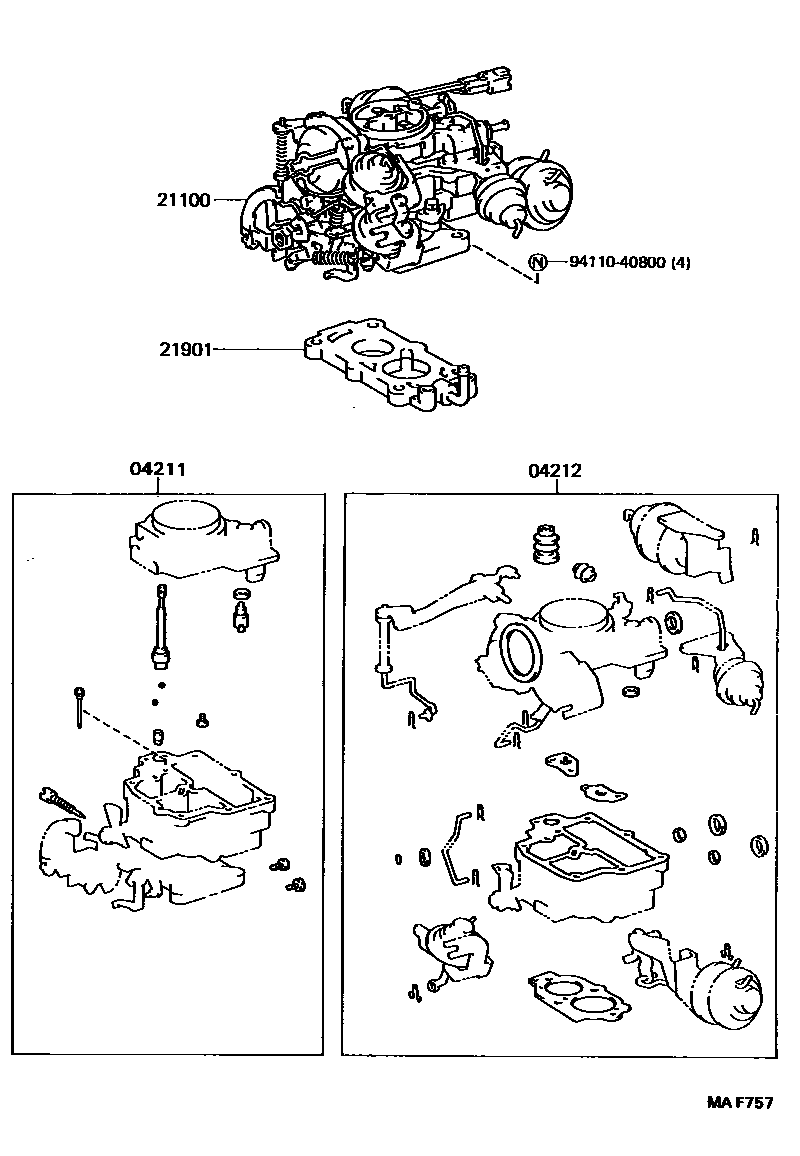

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-11200i2E..EE100199205-199505

04212GASKET KIT, CARBURETOR

main04212-11071i2E..EE100199205-199505

21100CARBURETOR ASSY

main21100-11890i2E..EE100199205-199505

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-11060i2E..EE100199205-199505

9411040800

main94110-40800

5 parts on this diagram · 1 diagram in section
