STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 1.4KW 0004 112V 2.2KW 0005 112V 0.8KW 0006 112V 0.8KW 0007 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-10030i2E..EE100199205-199505

main28011-16040i4AFE..AE101..4FC199205-199208

main28011-26042i7AFE..AE102199211-199505

BATTERY=55D23L

main28011-26042i4AFE,2E,4EFE..AE101,EE10#199205

BATTERY=50D20L

main28011-64010i2C..CE100199205

BATTERY=95D31L

sub28011-67030

main28011-64130i2C..CE100199205

main28011-70020i4AFE,4EFE..AE101,EE101..3FC,5F199205-199208

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

sub28013-70030

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i4AFE,7AFE,4EFE..AE10#,EE101199205

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i4AFE,7AFE,4EFE..AE10#,EE101199205

28100STARTER ASSY

main28100-10030i2E..EE100199205-199505

12V 0.8KW

sub28100-11010

main28100-10040i2E,4EFE..EE10#199205-199505

12V 1.0KW

main28100-11010i4EFE..EE101199205-199505

12V 0.8KW

main28100-11080i4EFE..EE101199505

12V 0.8KW

sub28100-11160

main28100-11100i4EFE..EE101199505

12V 1.0KW

main28100-16041i4AFE..AE101..4FC199205-199208

12V 0.8KW

sub28100-16071

main28100-16071i4AFE..AE101..5F199205-199505

12V 0.8KW

main28100-16150i4AFE..AE101199505

12V 1.0KW

sub28100-16270

main28100-16210i4AFE,7AFE..AE10#199205-199505

12V 1.0KW

sub28100-16220

main28100-16230i4AFE..AE101199505

12V 0.8KW

main28100-64130i2C..CE100199205-199505

12V 1.4KW

sub28100-64140

main28100-64140i2C..CE100199205-199505

12V 2.2KW

main28100-64340i2C..CE100199505

12V 1.4KW

sub28100-64341

main28100-64350i2C..CE100199505

12V 2.2KW

28110HOUSING ASSY, STARTER DRIVE

main28110-10030i2E..EE100199205-199505

main28110-10040i2E,4EFE..EE10#199205

BATTERY=50D20L

main28110-11010i4EFE..EE101199205

main28110-16041i4AFE..AE101..4FC199205-199208

main28110-16071i4AFE,7AFE..AE10#199205-199208

main28110-16150i4AFE..AE101199205

BATTERY=50D20L

main28110-16150i7AFE..AE102199211-199505

BATTERY=55D23L

main28110-64130i2C..CE100199205-199505

main28110-64340i2C..CE100199505

main28115-64140i2C..CE100199205-199505

BATTERY=95D31L

main28115-64350i2C..CE100199505

BATTERY=95D31L

sub28115-64140

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i4AFE,7AFE,4EFE..AE10#,EE101199205

28113LEVER, STARTER PINION DRIVE

main28113-15011i2E..EE100199205-199505

main28113-16070i4AFE,7AFE,4EFE..AE10#,EE101199205

28120YOKE ASSY, STARTER

main28120-15010i2E..EE100199205-199505

main28120-26071i7AFE..AE102199211-199505

BATTERY=55D23L

main28120-26071i4AFE,2E,4EFE..AE101,EE10#199205

BATTERY=50D20L

main28120-64040i2C..CE100199205

BATTERY=95D31L

main28120-64130i2C..CE100199205

main28120-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-10040i7AFE..AE102199211-199505

BATTERY=55D23L

main28130-10040i4AFE,2E,4EFE..AE101,EE10#199205

BATTERY=50D20L

main28130-10050i2E..EE100199205-199505

main28130-11010i4EFE..EE101199205

main28130-16070i4AFE,7AFE..AE10#199205

main28130-64130i2C..CE100199205

28130CBEARING, STARTER FLANGE

main90099-10183i4AFE,7AFE,4EFE..AE10#,EE101199205

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i2E..EE100199205-199505

main28140-26070i7AFE..AE102199211-199505

BATTERY=55D23L

main28140-26070i4AFE,2E,4EFE..AE101,EE10#199205

BATTERY=50D20L

main28140-64040i2C..CE100199205

BATTERY=95D31L

main28140-64130i2C..CE100199205

main28140-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

28142ASTARTER KIT

main28142-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

28143SPRING, STARTER BRUSH

main28143-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

main90099-17112i4AFE,4EFE..AE101,EE101199205

BATTERY=50D20L

main90099-17112i7AFE..AE102199211-199505

BATTERY=55D23L

main90099-17115i2C..CE100199205

BATTERY=95D31L

28150SWITCH ASSY, MAGNET STARTER

main28150-10021i4AFE,7AFE,4EFE..AE10#,EE101199205-199505

main28150-11080i4EFE..EE101199505

main28150-11100i4EFE..EE101199505

BATTERY=50D20L

main28150-16150i4AFE..AE101199505

BATTERY=50D20L

main28150-16160i4AFE..AE101199505

main28150-16210i7AFE..AE102199211-199505

BATTERY=55D23L

main28150-16210i4AFE..AE101199205-199505

BATTERY=50D20L

main28150-34080i2E,4EFE..EE10#199205-199505

BATTERY=50D20L

main28150-37011i2E..EE100199205-199505

main28150-64041i2C..CE100199205-199505

BATTERY=95D31L

main28150-64130i2C..CE100199205-199505

main28150-64300i2C..CE100199505

sub28150-64320

main28150-64310i2C..CE100199505

BATTERY=95D31L

28160ARMATURE ASSY, STARTER

main28160-15010i2E..EE100199205-199505

main28160-26071i7AFE..AE102199211-199505

BATTERY=55D23L

main28160-26071i4AFE,2E,4EFE..AE101,EE10#199205

BATTERY=50D20L

main28160-64041i2C..CE100199205

BATTERY=95D31L

main28160-70021i4AFE,7AFE,4EFE..AE10#,EE101199205

main28160-74070i2C..CE100199205

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i2E..EE100199205-199505

main28163-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

28199APROTECTOR, DUST STARTER

main28199-46080i4AFE,7AFE,4EFE..AE10#,EE101199205

COLD SPEC OR SNOW VERSION

main28199-64150i2E..EE100199205-199505

main28199-74110i2C..CE100199205

28255GEAR, PLANET

main28255-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

28256GEAR, STARTER INTERNAL

main28256-70020i4AFE,7AFE,4EFE..AE10#,EE101199205

9009690030

main90096-90030

9009900270

main90099-00270

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9009914092

main90099-14092

9011910466

main90119-10466

9017908146

main90179-08146

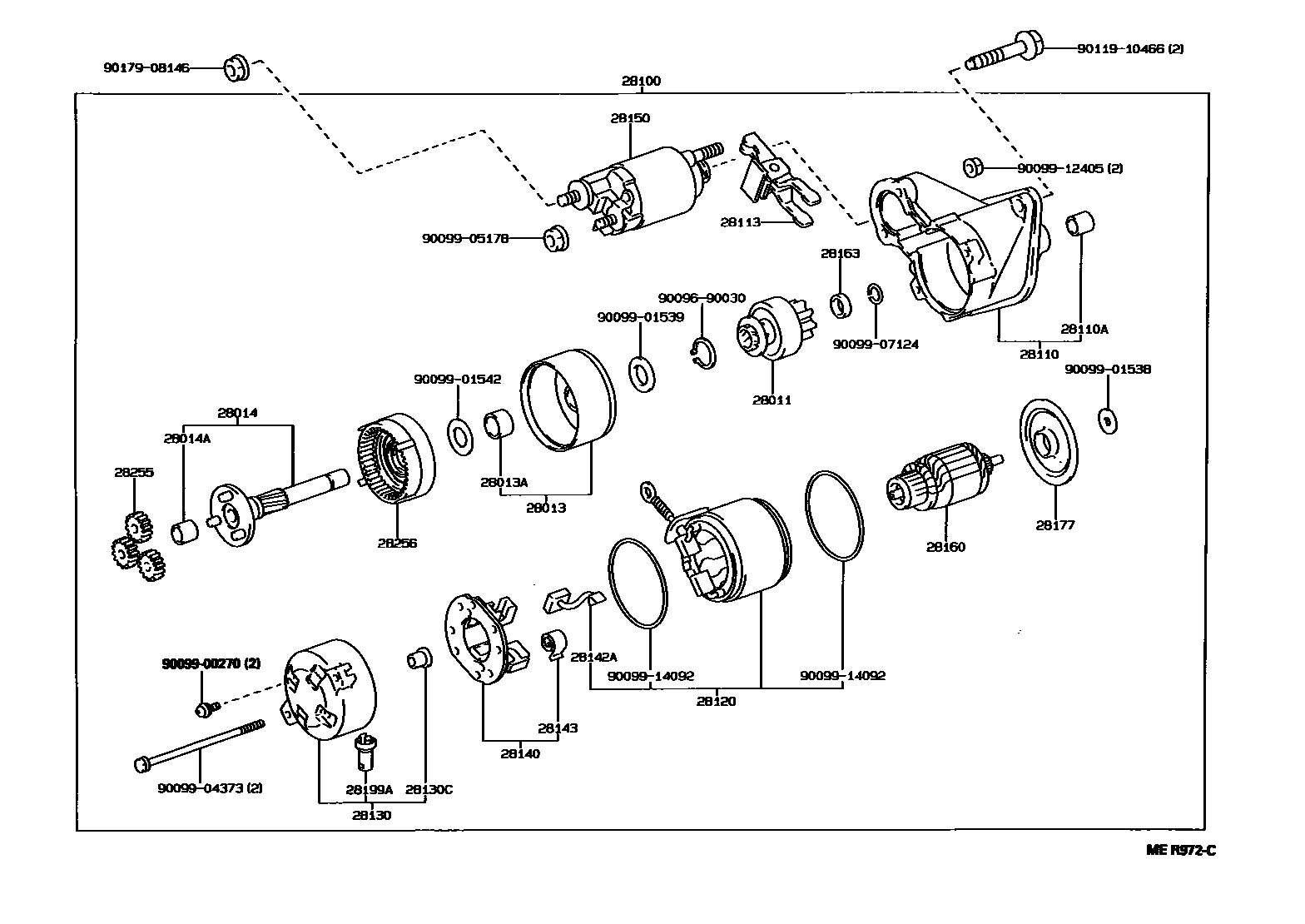

34 parts on this diagram · 7 diagrams in section
