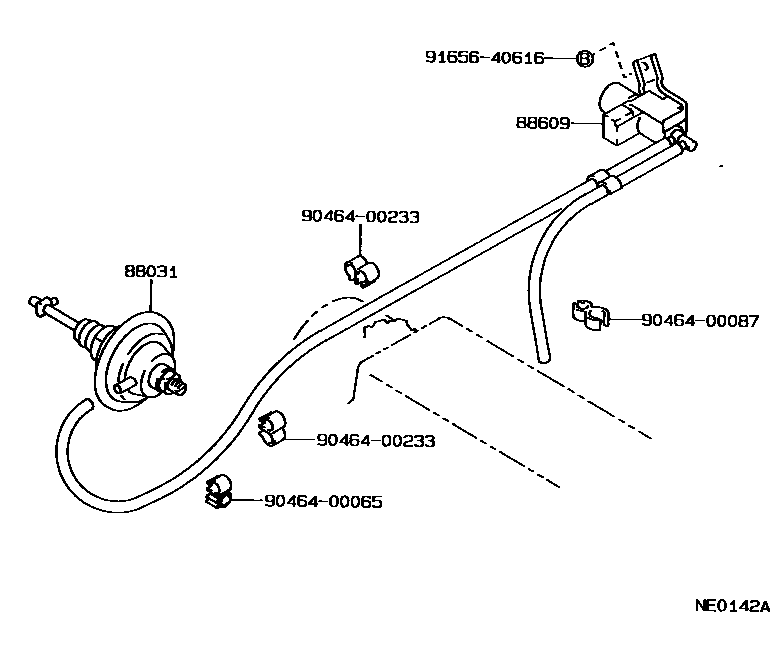

Toyota COROLLA HB153 — HEATING & AIR CONDITIONING - VACUUM PIPING
9046400065
9046400087
9046400233
9165640616
6 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - VACUUM PIPING for Toyota COROLLA HB153
This section contains 15 genuine Toyota parts for the HEATING & AIR CONDITIONING - VACUUM PIPING system of the Toyota COROLLA HB153. Key components include: ACTUATOR SET, IDLE-UP, DEVICE SUB-ASSY, IDLE UP, VALVE, MAGNET (FOR IDLE UP DEVICE), HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1.
