MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12250-03iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198705-199206

SHADOW GRAY,TRIM1#

main87810-12250-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198908-199206

DARK BLUE,TRIM8#

main87810-12250-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

main87810-12250-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

main87810-12260-03iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198705-199206

GLARE SHIELD INNER MIRROR,SHADOW GRAY,TRIM1#

main87810-12260-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198908-199206

GLARE SHIELD INNER MIRROR,DARK BLUE,TRIM8#

main87810-12260-05iAE92,CE90,EE90..CBR,DSL198705-198908

GLARE SHIELD INNER MIRROR,DARK BEIGE,TRIM4#

main87810-12260-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

GLARE SHIELD INNER MIRROR,BROWN,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAE92,CE90,EE90198705-199211

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-87003iAE92,CE90,EE90198705-199211

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-03iAE92,CE90,EE90198705-199211

LIGHT GRAY,TRIM1#

main87834-12030-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198908

LIGHT BLUE,TRIM8#

main87834-12030-05iAE92,CE90,EE90..CBR,DSL198705-198908

LIGHT BEIGE,TRIM4#

main87834-12030-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A280iAE92,CE90,EE90..RHD198705-199206

main87931-1A290iAE92,CE90,EE90..LHD..(GL,GLI,SR5,XL,XLI)198705-199206

main87931-1A310iAE92..LHD..EFI; AE92..RHD;AE92,CE90,EE90..GL,XL198705-198708

ELECTRIC REMOTE CONTROL MIRROR

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1A360iAE92..RHD198705-199205

main87961-1A370iAE92,CE90,EE90..LHD198705-199211

main87961-1A390iAE92..LHD..EFI; AE92..RHD;AE92,CE90,EE90..GL,XL198705-198708

ELECTRIC REMOTE CONTROL MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A260iEE90..RHD..5D198705-199206

main87910-1A270iAE92,CE90,EE90..LHD..5D198705-199206

main87910-1A280iEE90..RHD..5D198705-199206

MANUAL REMOTE CONTROL MIRROR

main87910-1A290iAE92,CE90,EE90..LHD..5D198705-199206

MANUAL REMOTE CONTROL MIRROR

main87910-1A300iEE90..RHD..5D198705-199206

ELECTRIC REMOTE CONTROL MIRROR

main87910-1A310iAE92,CE90,EE90..LHD..5D198705-199206

ELECTRIC REMOTE CONTROL MIRROR

main87910-1A520iCE90,EE90..RHD..3D198705-199205

main87910-1A530iAE92,CE90,EE90..LHD..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

main87910-1A540iAE92..RHD; CE90,EE90..RHD..3D198705-199205

MANUAL REMOTE CONTROL MIRROR

main87910-1A550iAE92,CE90,EE90..LHD..3D198705-199211

MANUAL REMOTE CONTROL MIRROR

main87910-1A560iAE92,CE90,EE90..RHD..3D198705-199205

ELECTRIC REMOTE CONTROL MIRROR

main87910-1A570iAE92,CE90,EE90..LHD..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

ELECTRIC REMOTE CONTROL MIRROR

main87910-1A710-02iAE92..RHD198708-199205

SUPER RED,3E5

main87910-1A710-03iAE92..RHD198708-199106

GRAY METALLIC,168

main87910-1A710-07iAE92..RHD198908-199205

GRAYISH GREEN METALL,6K6

main87910-1A710-08iAE92..RHD198708-199205

SUPER WHITE,040

main87910-1A710-14iAE92..RHD198810-198908

DARK BLUE METALLIC,27E ,8B5

main87910-1A710-24iAE92..RHD198908-199108

DARK BLUE MICA METAL,8E9

main87910-1A710-B1iAE92..RHD199106-199205

DARK BLUEISH GRAY M.,183

main87910-1A710-J1iAE92..RHD199108-199205

DARK BLUE MICA M.,8J7

main87910-1A720-02iAE92..LHD..GTI198705-199211

SUPER RED,3E5

main87910-1A720-03iAE92..LHD..GTI198705-199106

GRAY METALLIC,168

main87910-1A720-07iAE92..LHD..GTI198908-199211

GRAYISH GREEN METALL,6K6

main87910-1A720-08iAE92..LHD..GTI198705-199211

SUPER WHITE,040

main87910-1A720-14iAE92..LHD..EFI198706-198810

DARK BLUE METALLIC,27E

main87910-1A720-24iAE92..LHD..GTI198908-199108

DARK BLUE MICA METAL,8E9

main87910-1A720-B1iAE92..LHD..GTI199106-199211

DARK BLUEISH GRAY M.,183

main87910-1A720-J1iAE92..LHD..GTI199108-199211

DARK BLUE MICA M.,8J7

87918KNOB, CONTROL OUTER MIRROR

main87918-12020iAE92,CE90,EE90..3D; AE92..GTI198705-199211

main87918-12030iAE92,CE90,EE90..5D198705-199206

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1A340iEE90..RHD..5D198705-199206

main87940-1A350iAE92,CE90,EE90..LHD..5D198705-199206

main87940-1A360iEE90..RHD..5D198705-199206

MANUAL REMOTE CONTROL MIRROR

main87940-1A370iAE92,CE90,EE90..LHD..5D198705-199206

MANUAL REMOTE CONTROL MIRROR

main87940-1A380iEE90..RHD..5D198705-199206

ELECTRIC REMOTE CONTROL MIRROR

main87940-1A390iAE92,CE90,EE90..LHD..5D198705-199206

ELECTRIC REMOTE CONTROL MIRROR

main87940-1A520iCE90,EE90..RHD..3D198705-199205

main87940-1A530iAE92,CE90,EE90..LHD..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

main87940-1A540iAE92,CE90,EE90..RHD..3D198705-199205

MANUAL REMOTE CONTROL MIRROR

main87940-1A550iAE92..LHD..GTI198705-199211

main87940-1A560iAE92,CE90,EE90..RHD..3D198705-199205

ELECTRIC REMOTE CONTROL MIRROR

main87940-1A570iAE92,CE90,EE90..LHD..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

ELECTRIC REMOTE CONTROL MIRROR

main87940-1A710-02iAE92..RHD198708-199205

SUPER RED,3E5

main87940-1A710-03iAE92..RHD198708-199106

GRAY METALLIC,168

main87940-1A710-07iAE92..RHD198908-199205

GRAYISH GREEN METALL,6K6

main87940-1A710-08iAE92..RHD198708-199205

SUPER WHITE,040

main87940-1A710-14iAE92..RHD198810-198908

DARK BLUE METALLIC,27E ,8B5

main87940-1A710-24iAE92..RHD198908-199108

DARK BLUE MICA METAL,8E9

main87940-1A710-B1iAE92..RHD199106-199205

DARK BLUEISH GRAY M.,183

main87940-1A710-J1iAE92..RHD199108-199205

DARK BLUE MICA M.,8J7

main87940-1A720-02iAE92..LHD..GTI198705-199211

SUPER RED,3E5

main87940-1A720-03iAE92..LHD..GTI199106-199211

GRAY METALLIC,168

main87940-1A720-07iAE92..LHD..GTI198908-199211

GRAYISH GREEN METALL,6K6

main87940-1A720-08iAE92..LHD..GTI198705-199211

SUPER WHITE,040

main87940-1A720-14iAE92..LHD..EFI198810-198908

DARK BLUE METALLIC,27E ,8B5

main87940-1A720-24iAE92..LHD..GTI198908-199108

DARK BLUE MICA METAL,8E9

main87940-1A720-B1iAE92..LHD..GTI199106-199211

DARK BLUEISH GRAY M.,183

main87940-1A720-J1iAE92..LHD..GTI199108-199211

DARK BLUE MICA M.,8J7

87955GASKET, OUTER REAR VIEW MIRROR BASE, LOWER RH

main87955-12040iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main87955-12050iAE92,CE90,EE90..3D..(STD,XL,XLI)198705-199205

87955ACLIP, DOOR GLASS WEATHERSTRIP

main68211-12160×2iAE92,CE90,EE90..STD,XL,XLI198705-199206

87956GASKET, OUTER REAR VIEW MIRROR BASE, LOWER LH

main87956-12040iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main87956-12050iAE92,CE90,EE90..3D..(STD,XL,XLI)198705-199205

9014950044

main90149-50044

9015940098

main90159-40098

9331915016

main93319-15016

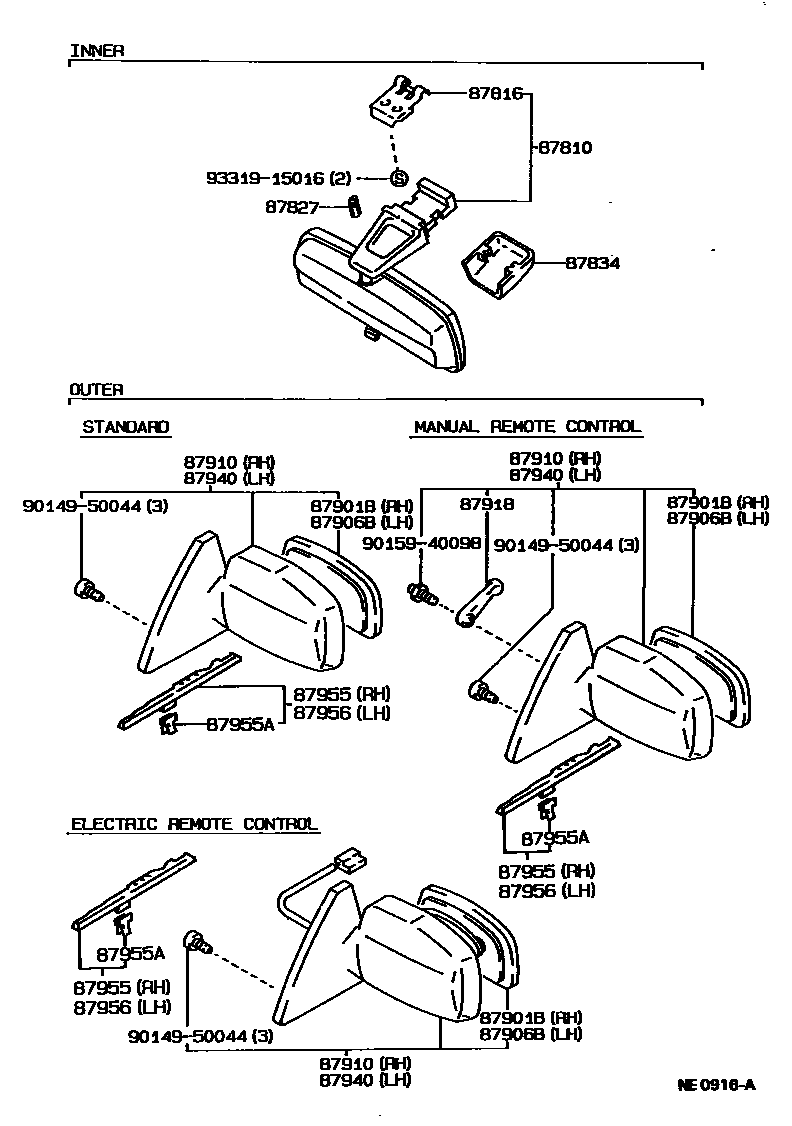

15 parts on this diagram · 1 diagram in section
